OPERATOR'SSEAT
Pneumatically-adjustedoperatorseat-Controlidentication
Inordertooperatethemachinecorrectlyandwithmaximumefciencyandcomfort,adjusttheseattosuittheweight
andsizeoftheoperator.
NOTE:theadjustmentoftheseatcanonlybecarriedoutwhentheoperatorisseatedintheseatandtheengineis
shutdown.

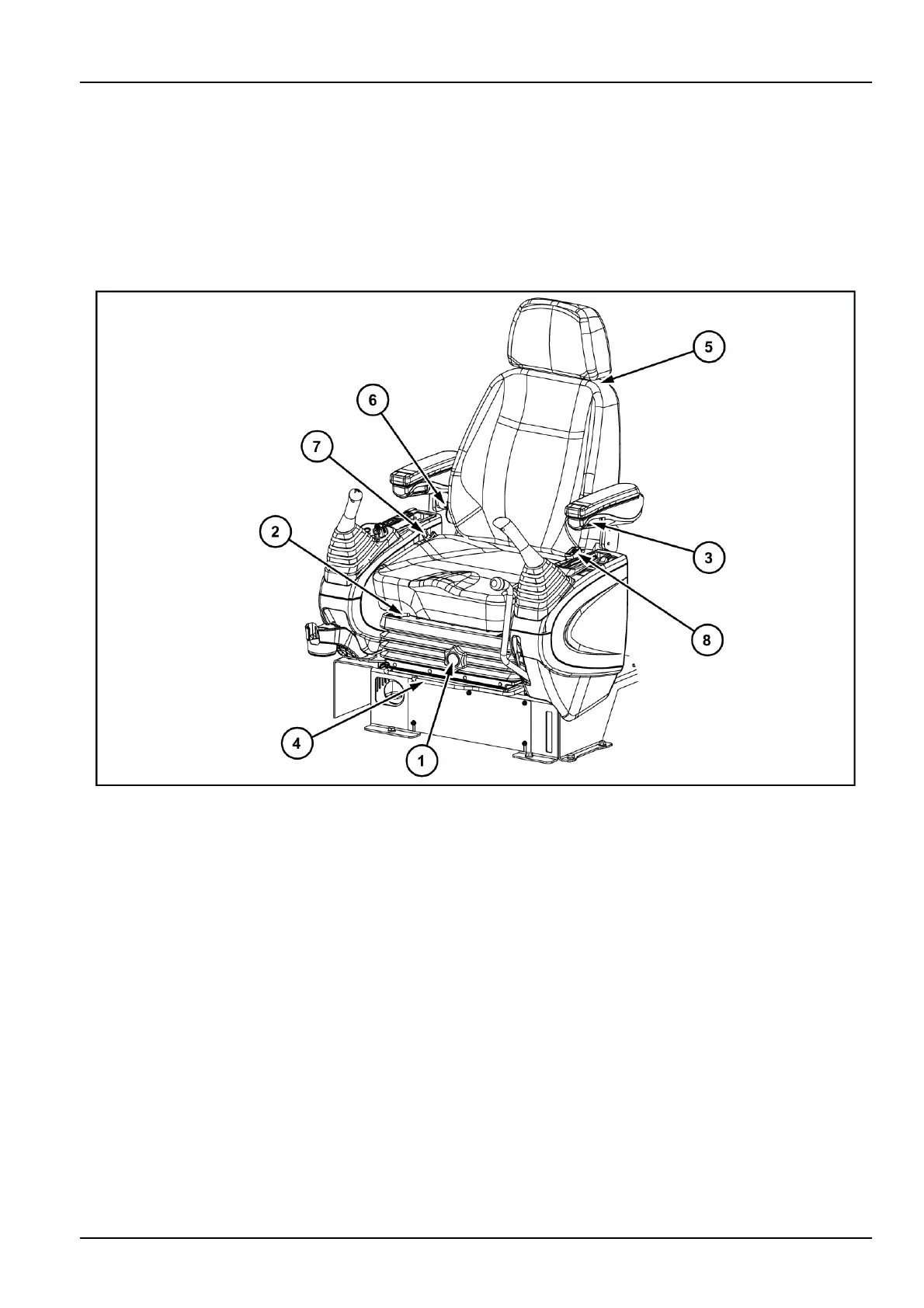

SMIL13CEX2569FA1
1.Heightandweightadjustmentsection
2.Forwardandbackpositionadjustmentsection
3.Armrestangleadjustmentsection
4.Seat/controlarmassemblyforward-backadjustment
section
5.Headrestadjustmentsection
6.Seatbackangleadjustmentsection
7.Seatbelt
8.Buckle
