4-OPERATINGINSTRUCTIONS

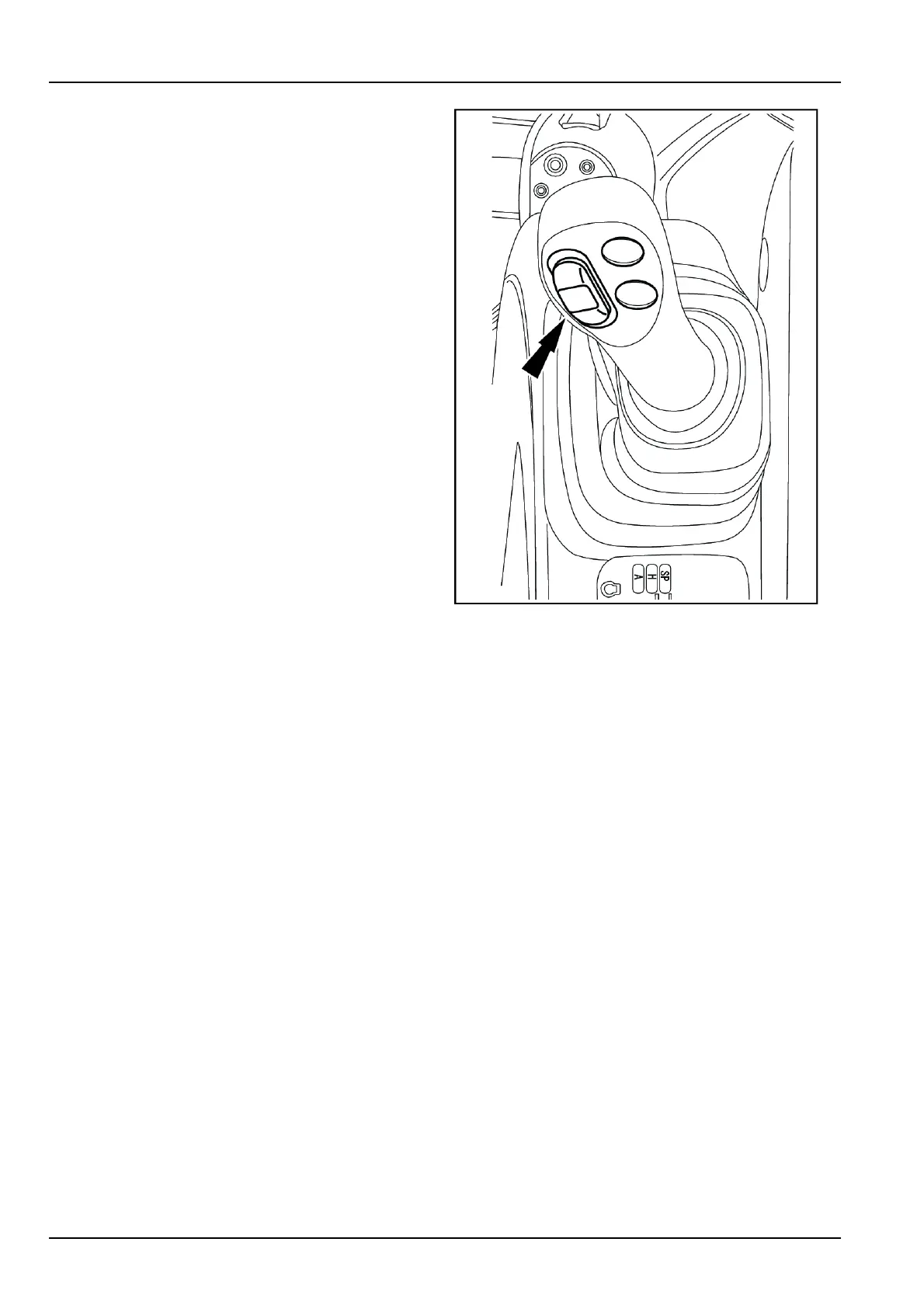

4.Usetheproportionalswitchtooperatethehydraulic

breaker.

NOTICE:inbucketmode,donotcarryoutoperationusing

auxiliaryline.Ifyoudothatthewarningmessage“Aux-

iliarysetuprequired”willbedisplayedwithalarmsound.

Stopoperationimmediatelyandcarryoutauxiliarysetup.

SMIL13CEX2583BA4

4-26
