6-MAINTENANCE

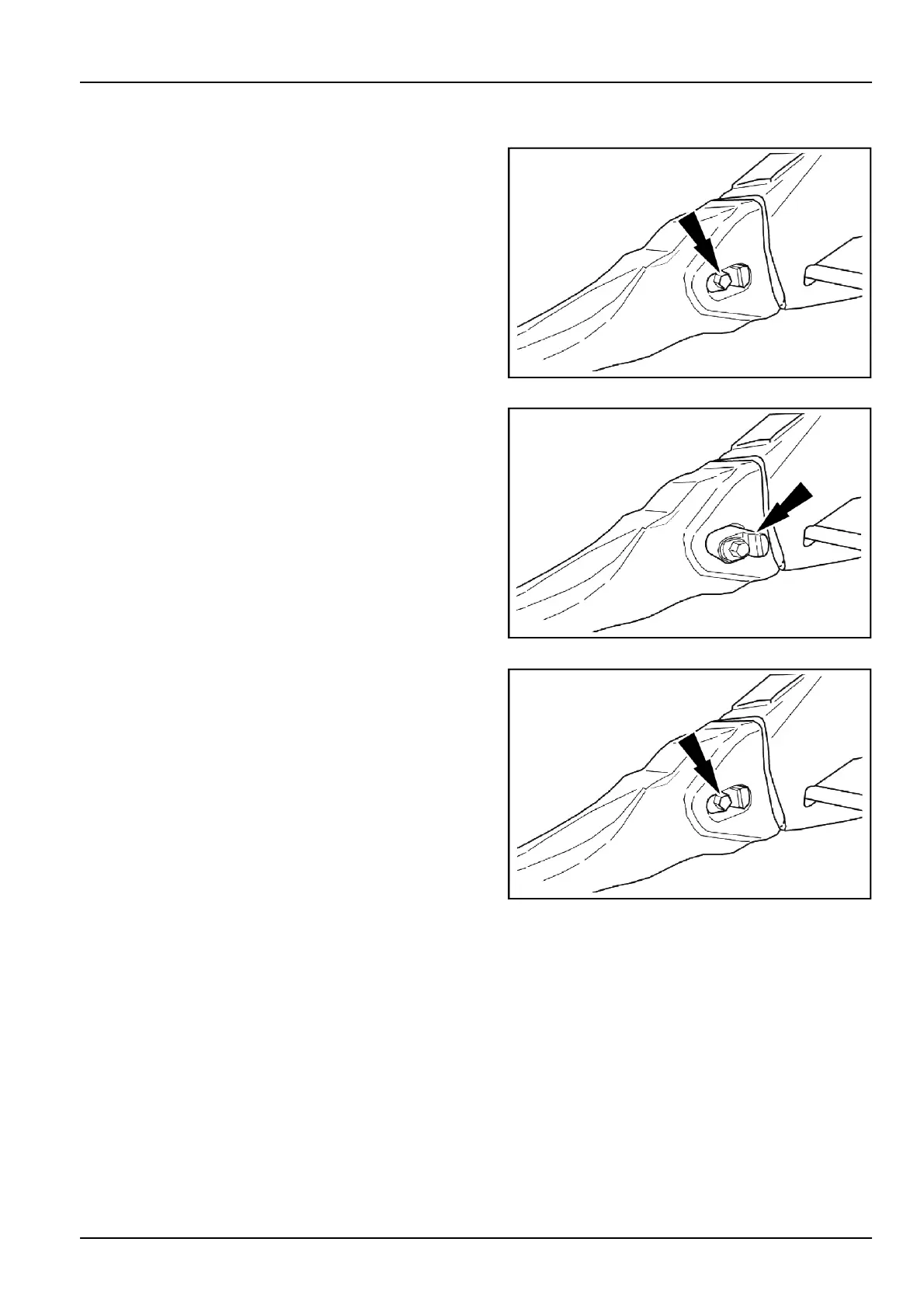

Bucketteeth
Bucketteethremoval
1.Placethebucketafewcentimetresabovethe
ground.Stoptheengineandremovetheigni-
tionkey.
2.Turnthelockingstud90°intheclockwisedi-
rectionusingahexagonalwrench.
3.Removethelockingpinthenremovetheworn
toothtip.
SMIL13CEX2818AB1
1.Cleanthematingsurfaceontheadaptor.
2.Engageanewtoothtiprightuptothestopand
holditinposition.
3.Engagethelockingpinuntilitisushwiththe
toothtip.
SMIL13CEX2819AB2
4.Turnthelockingstud90°intheanti-clockwise
directionusingahexagonalwrench.
NOTE:whenreplacingatoothtip,itisadvisabletoreplace
thelockingpinatthesametime.
SMIL13CEX2818AB3
6-69
