2-SAFETYINFORMATION

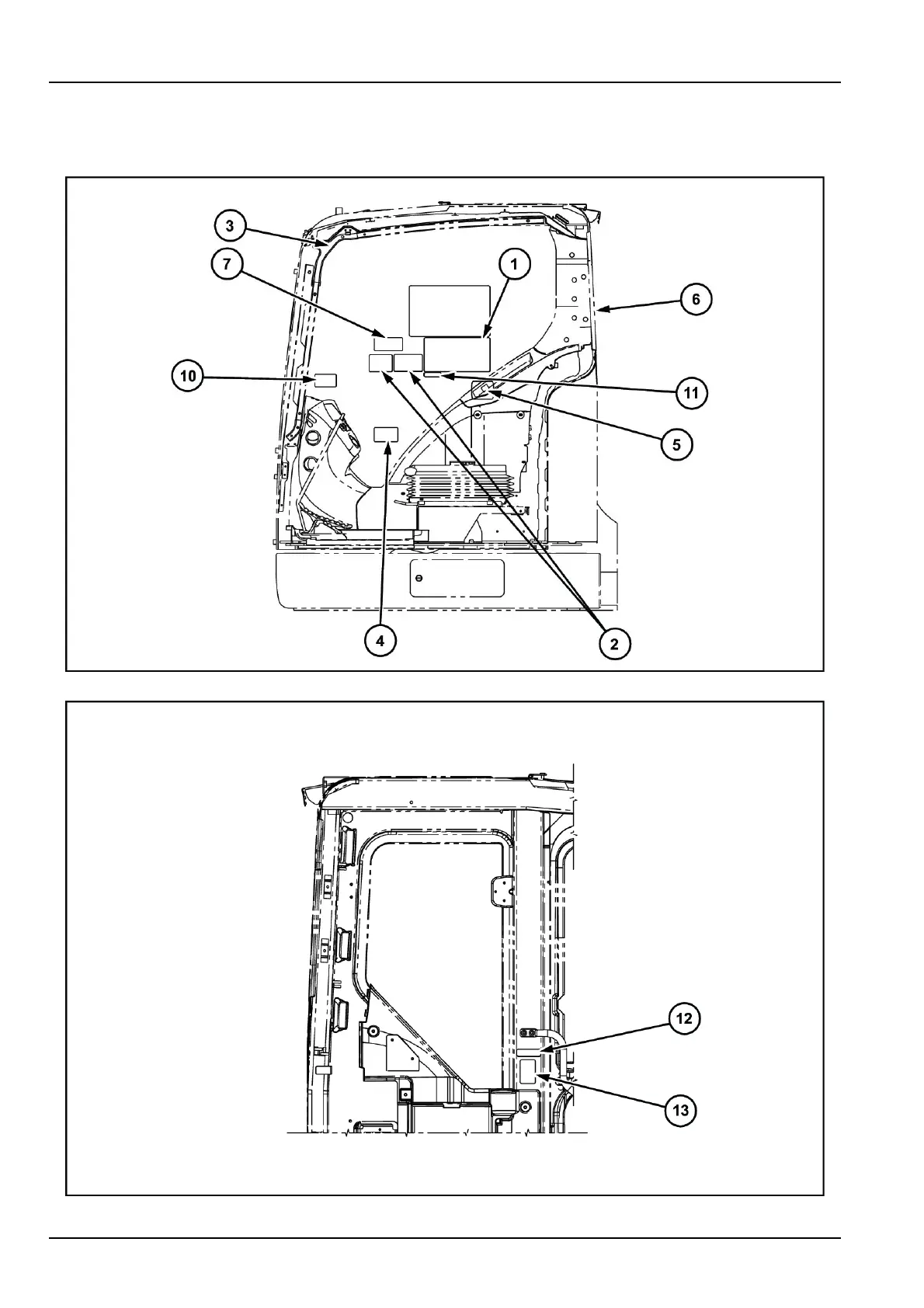

Positionofdecals

Whenreplacingadecal,makesureitislocatedasshownbelow.

SMIL13CEX2922FB2

SMIL13CEX2843FB3

2-16
