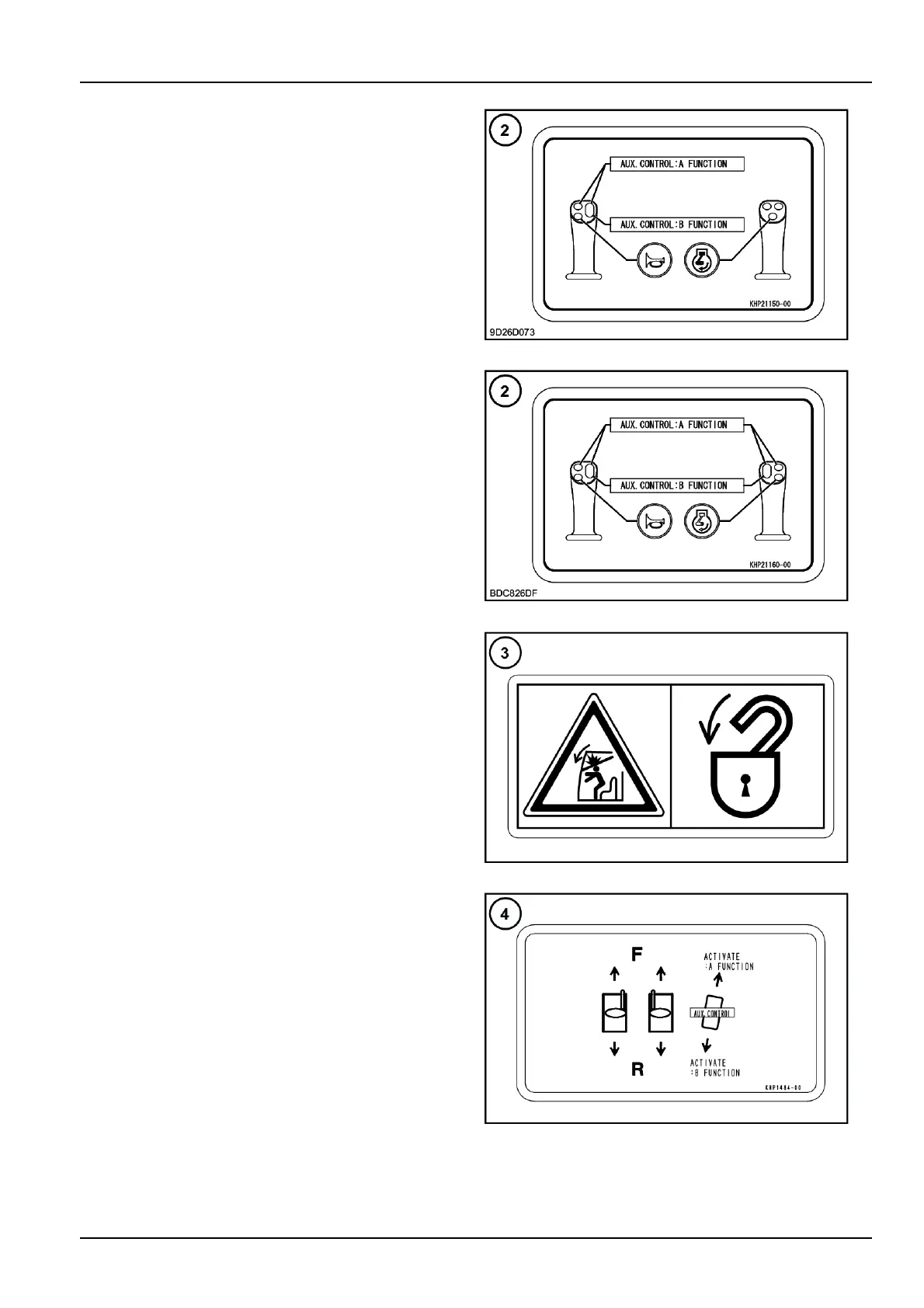

2-SAFETYINFORMATION

Partnumber:KHP21150(withleft-handoption)

9D26D07315

Partnumber:KHP21160(withright-handandleft-hand

option)

BDC826DF16

Windshieldlocking

Partnumber:KHP12540

Thisdecalshowsthatthewindshieldmustbecorrectly

lockedinopenposition,inordertopreventitfromtipping.

SMIL13CEX2530AB17

Functionoftheleversandpedals

Partnumber:KHP1484(withright-handoption)

Thisdecalshowsthefunctionofthetravelcontrollevers

andpedals.

SMIL13CEX2531AB18

2-21
