CASE CONSTRUCTION CX75C SR

To Next Page

To Previous Page

3-CONTROLS/INSTRUMENTS

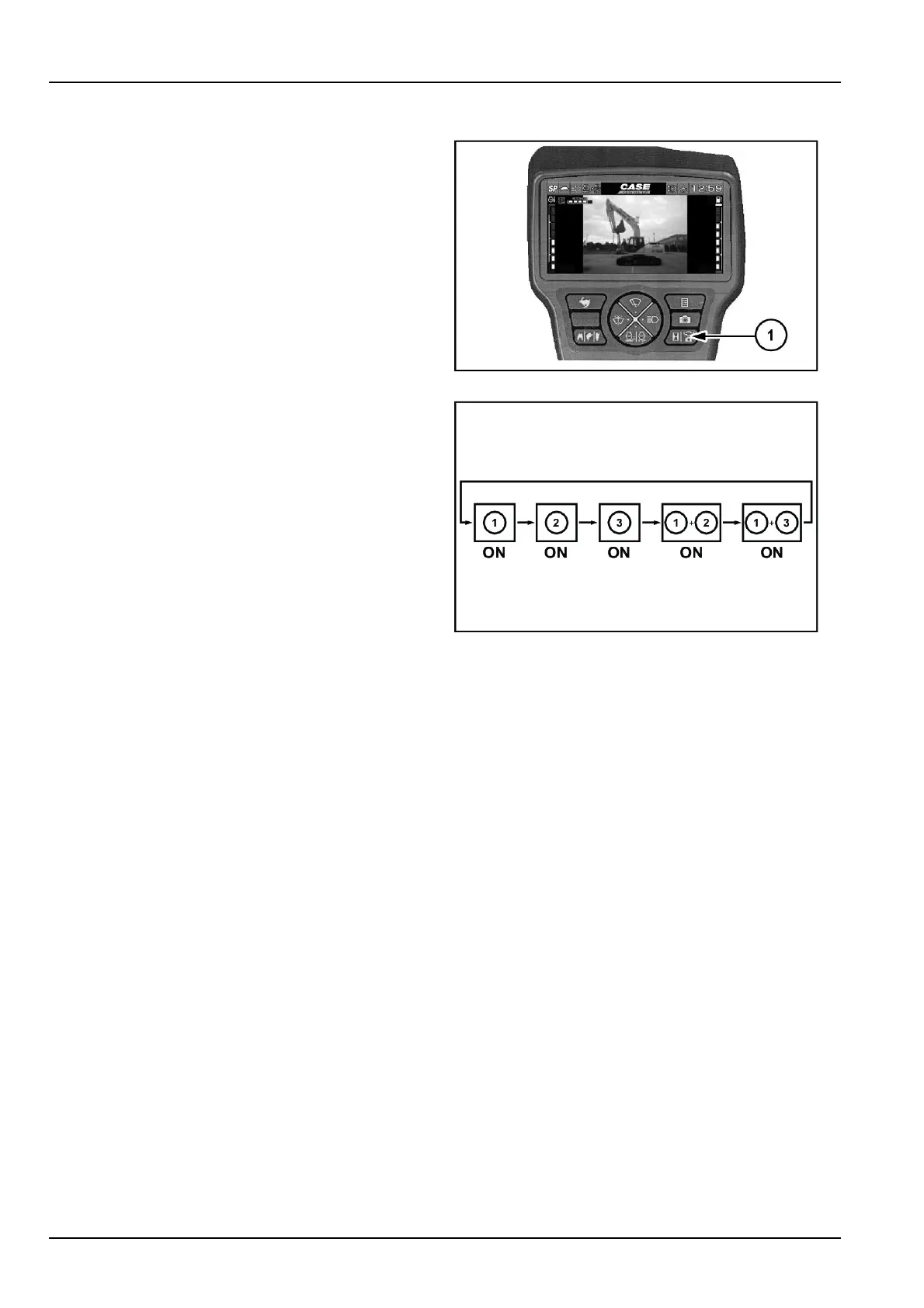

Cameramodeswitch

Thescreendisplayswitcheseachtimethecameraswitch-

ingbutton(1)ispressed.

SMIL13CEX2614AB10

(1):Camera1

(2):Camera2

(3):Camera3

Thepicturesabovedisplaywhenallcameraoutputsare

setto“On”.

Thereisamaximumof5typesofscreendisplays.

NOTE:Whencameramodeisusing,thewords“Side”

(sidecamera)and/or“Rear”(rearcamera)appearonthe

screen.

SMIL13CEX2615AB11

3-24
