3-CONTROLS/INSTRUMENTS

Proportionalswitch(ifequipped)

Thisswitchisusedforoptionalaccessoriessuchashy-

draulicbreaker,ifequipped,etc.

NOTE:consultyourCASECONSTRUCTIONDealerto

selecttheoptionalaccessorycompatiblewithyourma-

chineandtocorrectlyadjusttheowrequiredforitsuse.

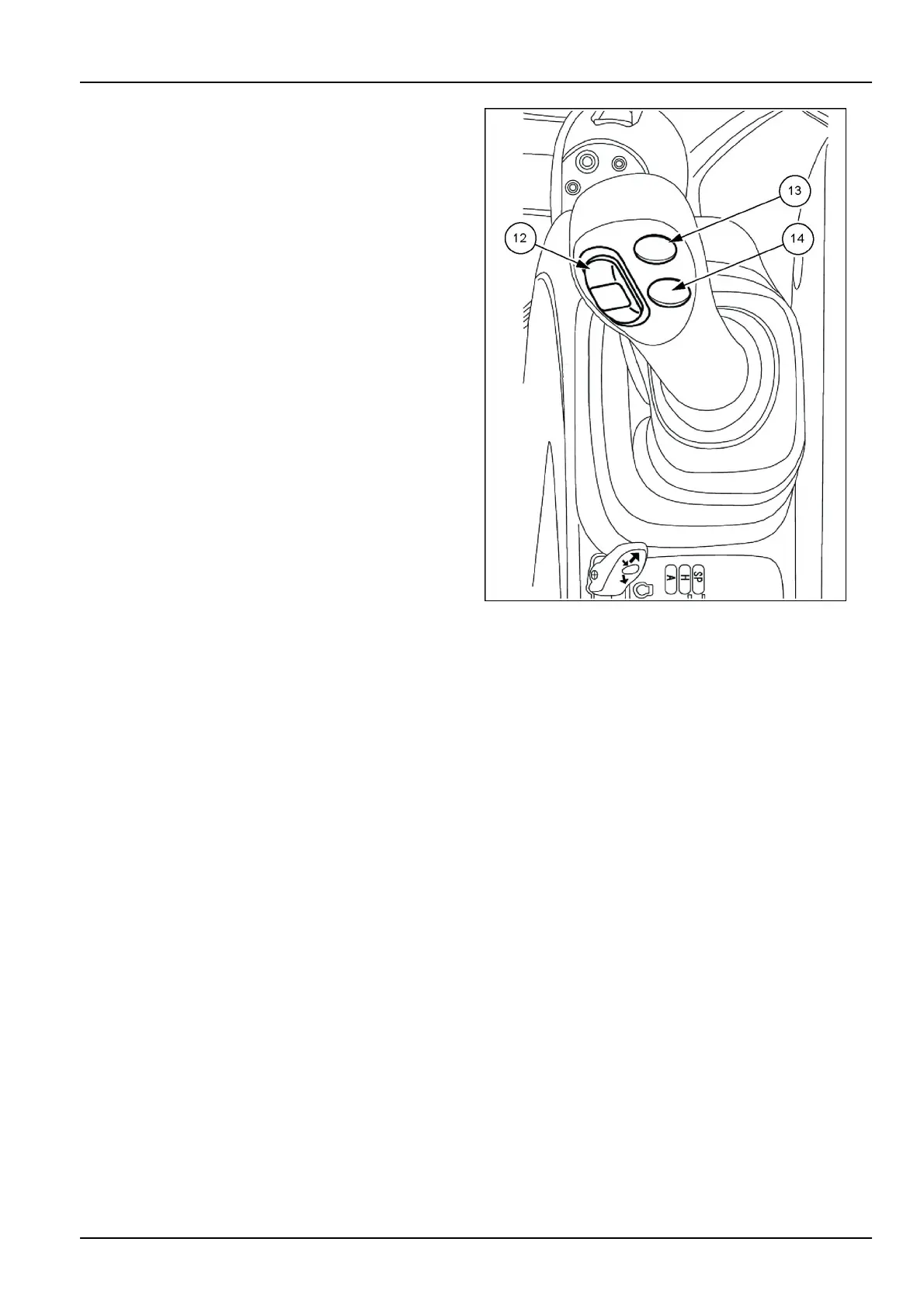

(12)Proportionalswitch(Optioncontrolswitch)

(13)Optioncontrolswitch

(14)Engineidleswitch

EC33398B_TU_NA2

3-35
