3-CONTROLS/INSTRUMENTS

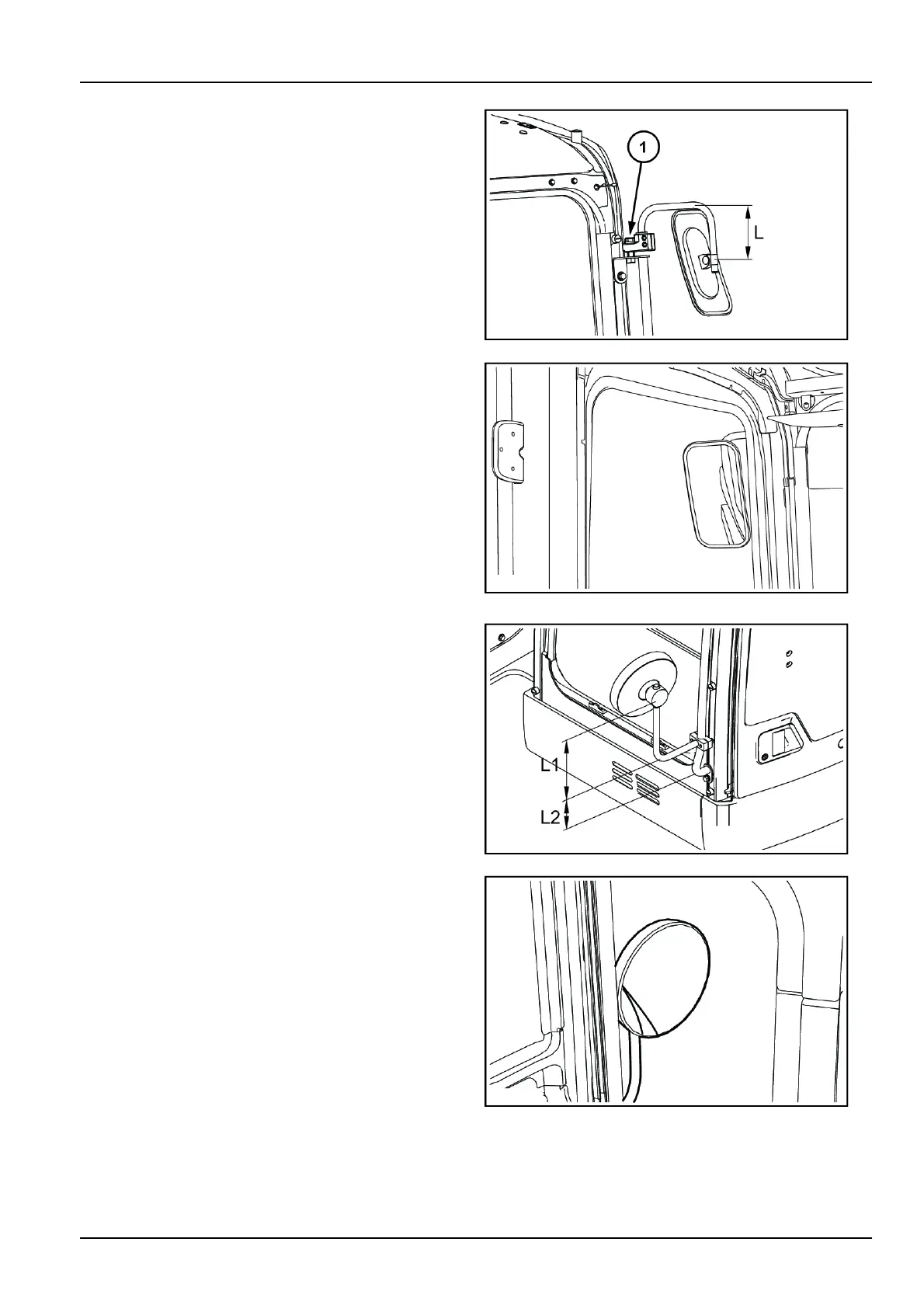

MirrorA(Cabupper)
Adjustthemirrortoseetheleftrearedgeofthemachine
bysight.
Tighteningtorqueofbolt(1):
71.6-91.2N·m(52.8-67.3lbft).
•
Installthemirrorinthepositionintherightillustration.
L:165mm(6.496in).
•
Asshownintherightillustration,adjustthemirrortosee
thesideofthemachineinthemirror.
Tighteningtorque:bolttotightthebodyofthemirror:
4.5-5.5N·m(3.3-4.1lbft).
SMIL13CEX2636AB3
SMIL13CEX2637AA4
MirrorB(Cablower)
Adjustthemirrortoseetherightfrontedgeofthe
machinebysight.
•
Installthemirrorinthepositionintherightillustration.
L1:280mm(11.024in).
L2:170mm(6.693in).
•
Asshownintherightillustration,adjustthemirrortosee
thefrontright(shoe)ofthemachineinthemirror.
Tighteningtorque:bolttotightthebodyofthemirror:
4.5-5.5N·m(3.3-4.1lbft).
SMIL13CEX2638AB5
SMIL13CEX2639AA6
3-43
