Difock and MFD Engagement
Difock and MFD engagement zone are relative to hitch position.

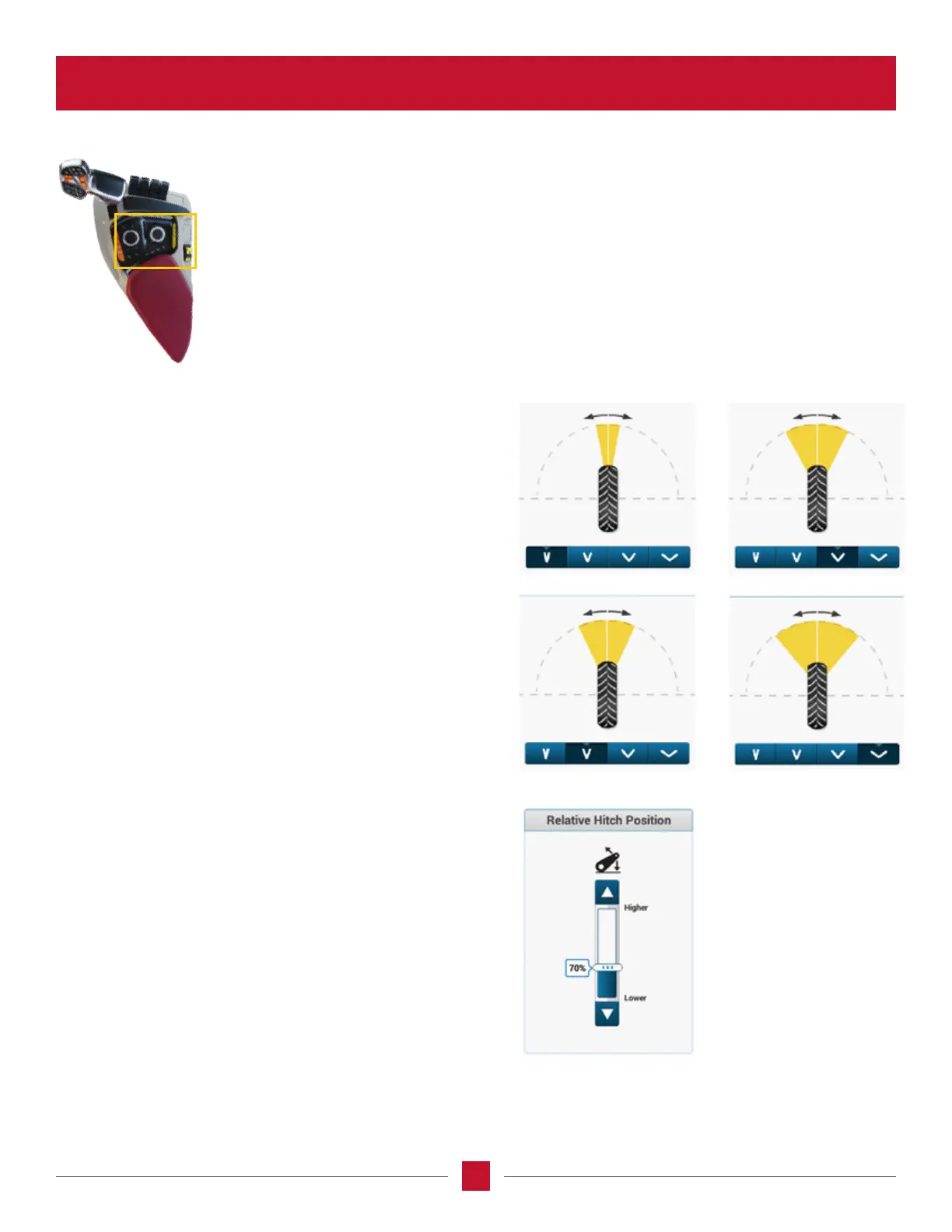

Use the tractor Auto MFD/Diff Lock screen on the display:
• to choose the steering angle zone for engaging/disengaging
Auto MFD and Diff Lock,
• to adjust when Auto MFD and Diff Lock engage/disengage for
hitch mounted implements.
When the tractor steering angle is within the selected zone,
Auto MFD and Diff Lock are enabled. When the tractor steering
angle is outside the zone, Auto MFD and Diff Lock are disabled.
Use the four buttons to select an engagement zone appropriate
to the task or the working conditions. The selection is retained
through key cycles.
Relative Hitch Position
Adjust the Relative Hitch Position setting if Auto MFD and
Diff Lock are engaging/disengaging too early or too late as the
hitch lowers and raises. The acceptable range is 60-90% in
10% increments.
The setting is relative to the current upper limit setting for
the hitch. Increase the setting to engage/disengage earlier.
Decrease the setting to engage/disengage later.
