Case 445 - Page 143

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

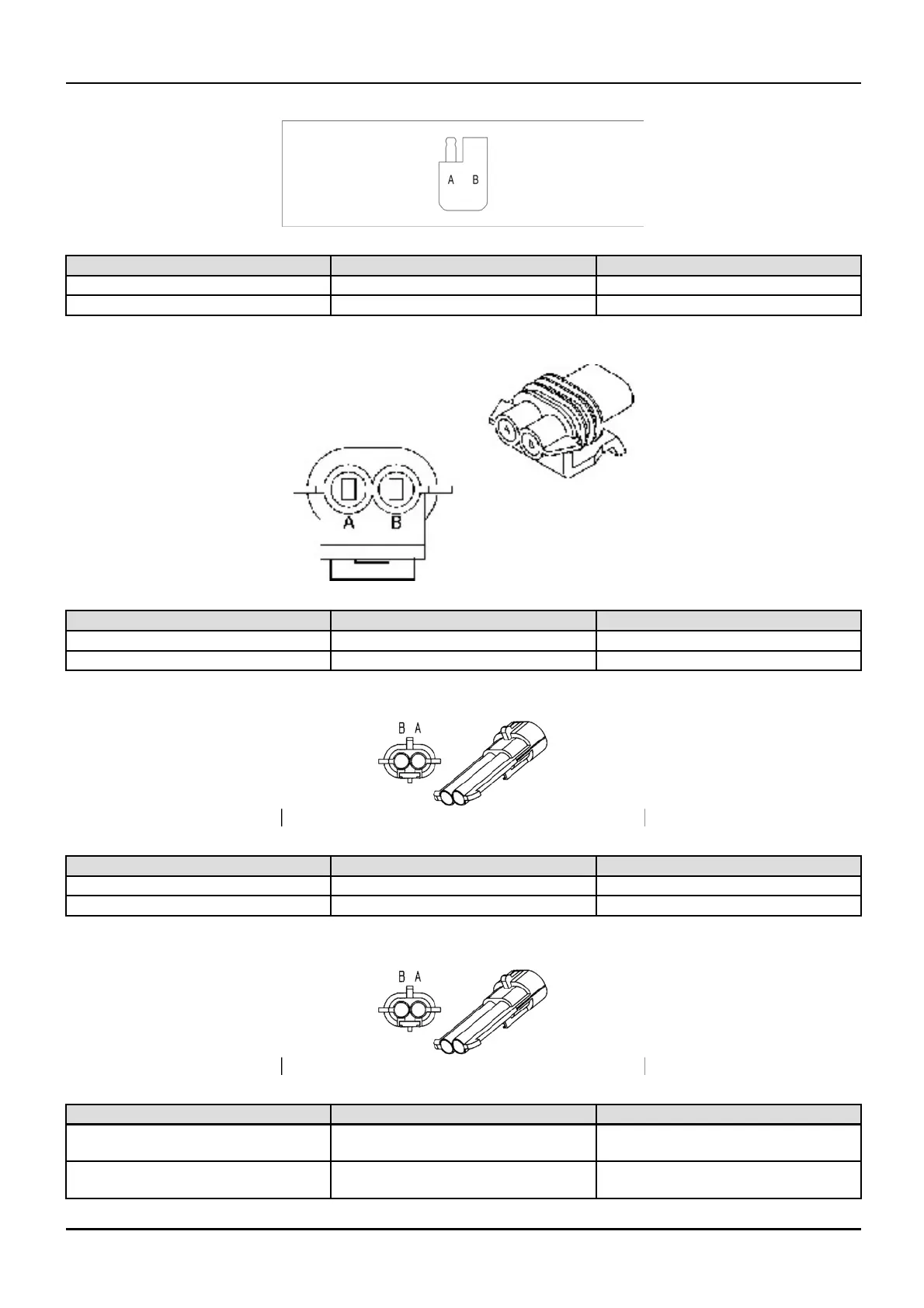

Connector 50
cnh_style-24 6
Cavity Circuit ID
Description
A
311B (T)
From co nnector 18 pin 87
B
314D (T)
From co nnector 103 pin B
Connector 57
256340a1 7
Cavity Circuit I
D
Description
A
178T (B)
To ground
B
314A (T)
From splice 16
Connector 58
253294A1 8
Cavity Circuit ID
Description
A 130B From connector 8A pin A1
B 323A
To connector 8A pin C1
Connector 59 (Grey)
253294A1 9
Cavity Circuit ID
Des
cription
A
303C (T) From connector 8 pin C2 to cab lock
down switch
B
313C (T)
From connector 23 pin 14 to seat bar
switch
