Case 445 - Connector - Component Diagram Frame 24 (A.30.A.87 - C.20.F.24); 435, 445, 445 Ct

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

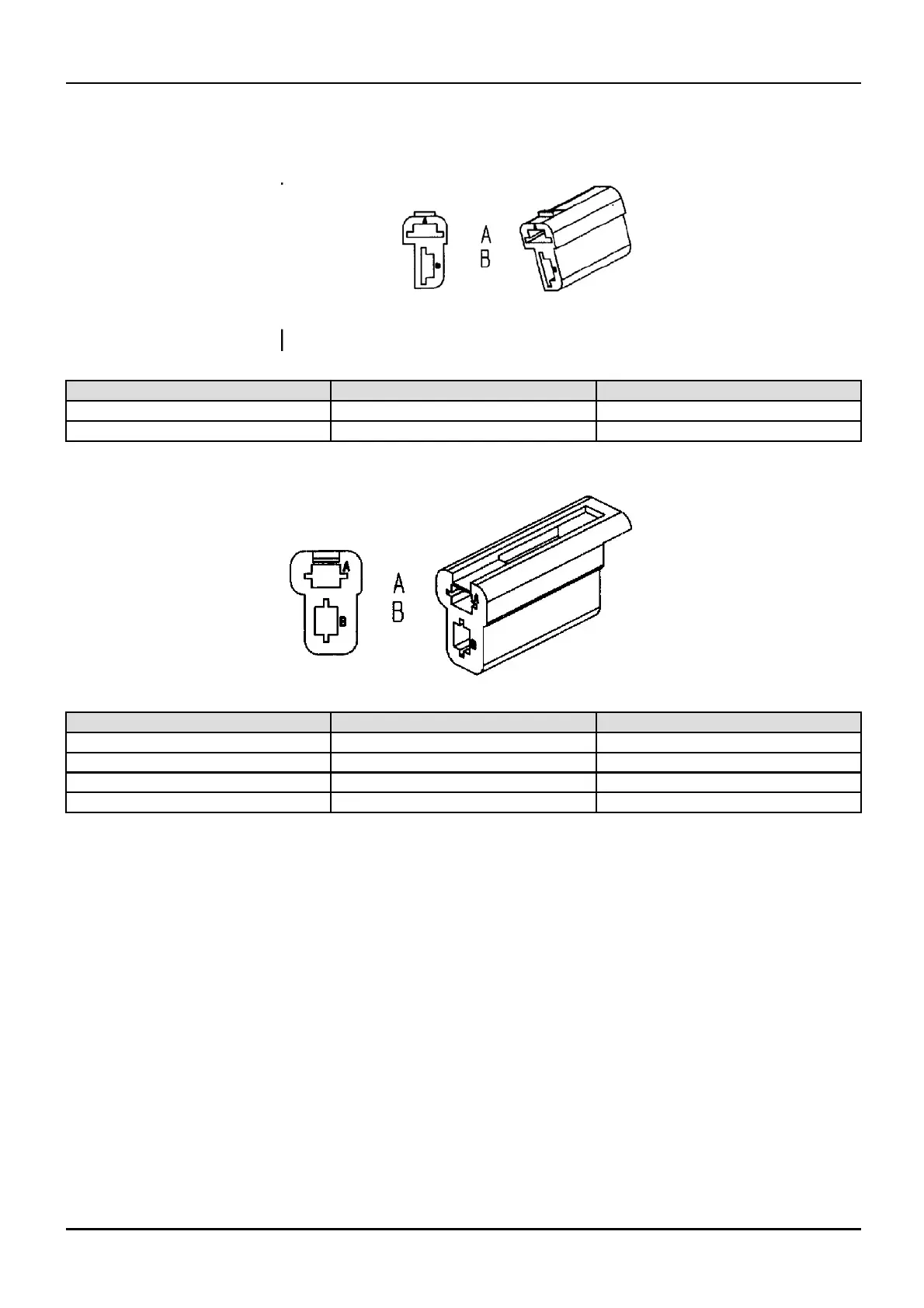

Connector - Component diagram frame 24 (A.30.A.87 - C .20.F.24)
435, 445, 445CT
Connector 71B
877291R1 1
Cavity Circuit ID
Description
A
178EB (B) To connector 71C pin A
B
700B (P) To connector 71C pin B
Connector 71C
872290R1 2
Cavity Circuit ID
Description
A
178EA (B)
To connector 190 pin 85
A
178EB (B)
To connector 71B pin A
B
700A (P) To right brake light switc h (Euro)
B
700B (P)
To connector 71B pin B
1 04/05/2005
A.30.A / 49
