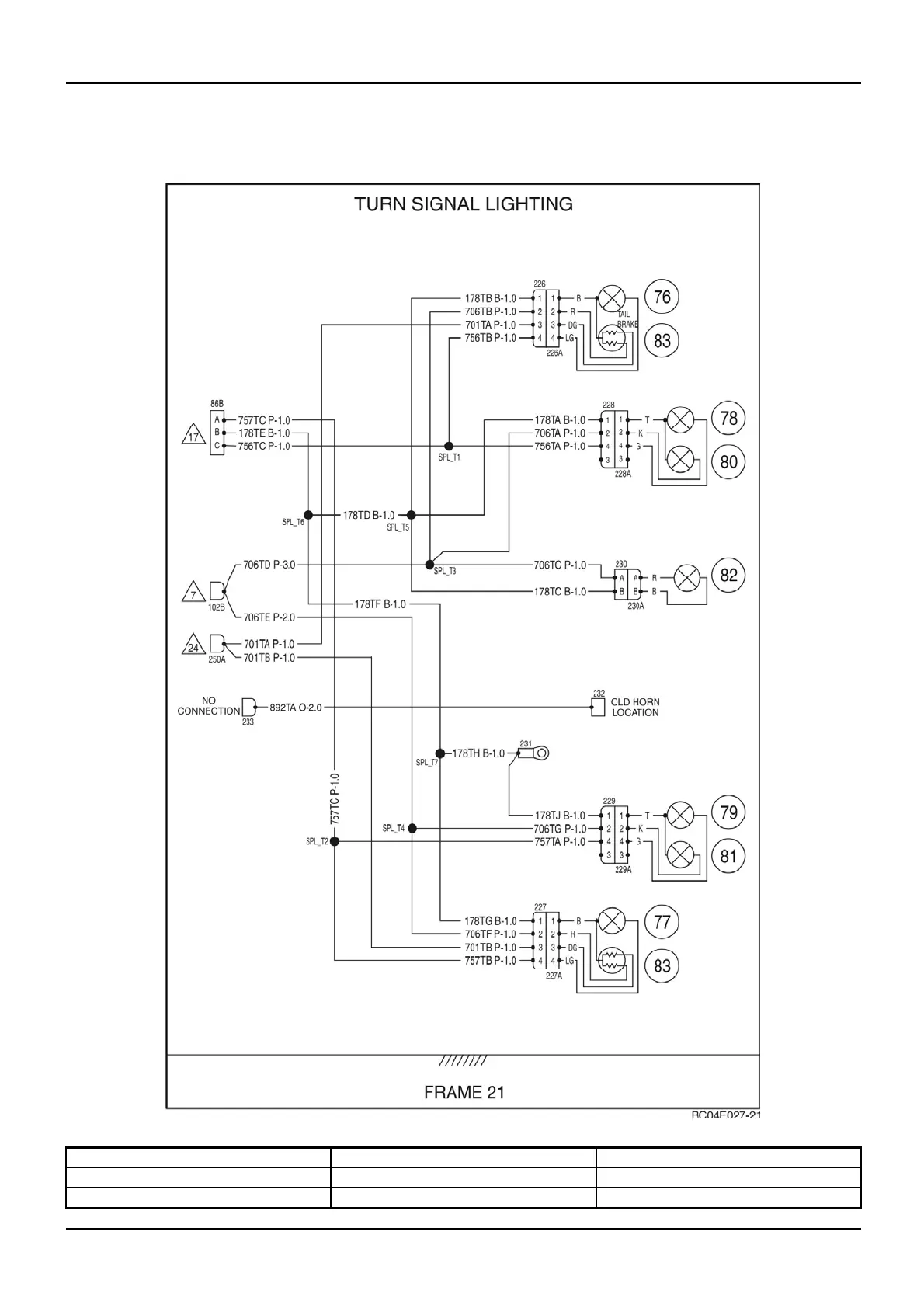

Case 445 - Wiring Harness - Electrical Schematic Frame 21 (A.30.A.88 - C.20.E.21); 435, 445, 445 Ct

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM
Wiring harness - Electrical schematic frame 21 (A.30.A.88 -
C.20.E.21)
435, 445, 445CT
bc04e027-21 1
(76) Left Rear Turn Light (79) Right Front Turn Light (82) License Plate Light
(77) Right Rear Turn Light (80) Left Front Position Lig ht (83) Resistor
(78) Left Front Turn Light (81) Righ t Front Position Light
1 04/05/2005
A.30.A / 79
