Case 445 - Connector - Component Diagram Frame 19 (A.30.A.87 - C.20.F.19)

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

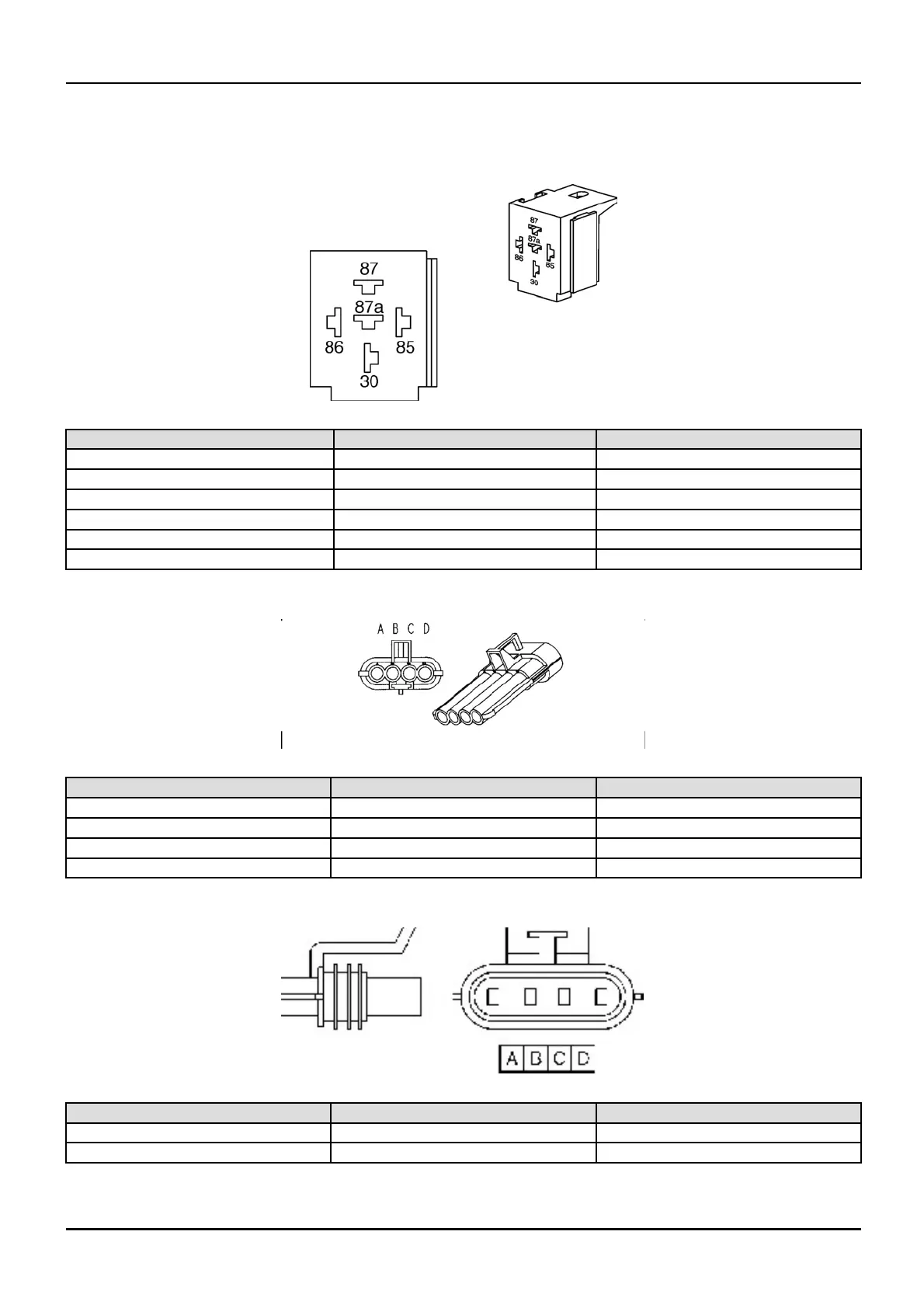

Connector - Component diagram frame 19 (A.30.A.87 - C .20.F.19)
435, 445, 445CT
Connector 125
245731C1 1
Cavity Circuit ID
Description
85
178DF (B)
From connector 127B pin D
85
178DG (B)
From connector 128 pin 85
86
320B (LB)
To connector 129 pin A
30
622D (W)
To connector 127B pin B
86
320A (LB)
To connector 130 pin B
87
624A (DB) To connector 127C pin B
Connector 127B
256347A1 2
Cavity Circuit ID
Description
A
602D (W)
From connector 128 pin 30
B
622D (W)
From connector 125 pin 30
C 319E (T)
From co nnector 129 pin B
D
178DF (B)
From connector 125 pin 85
Connector 127C
256346a1 3
Cavity Circuit ID
Description
A
604A (W)
From connector 128 pin 87
B
624A (DB)
From connector 125 pin 87
1 04/05/2005
A.30.A / 42
