Case 445 - Connector - Component Diagram Frame 21 (A.30.A.87 - C.20.F.21)

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

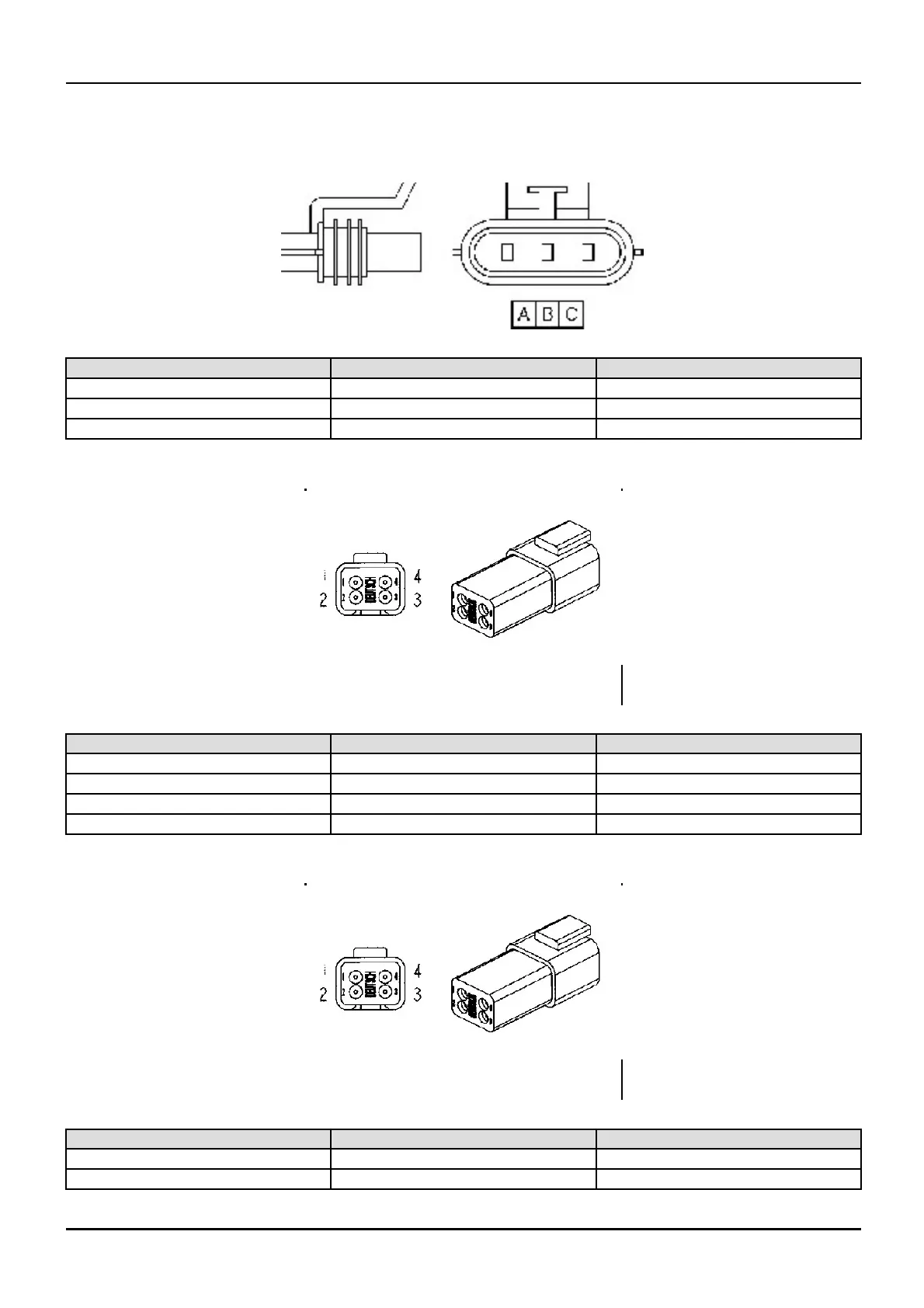

Connector - Component diagram frame 21 (A.30.A.87 - C .20.F.21)
435, 445, 445CT
Connector 86B
256344a1 1
Cavity Circuit ID
Description
A
757TC (P)
To connector 227 pin 4
B
178TE (B)
To connector 227 pin 1
C 756TC (P)
To connector 228 pin 4
Connector 226
225326C1 2
Cavity Circuit ID
Description
1
178TB (B)
To ground
2
706TB (P)
From connector 102B
3
701TA (P)
From connector 250A
4
756TB (P)
From splice T1
Connector 227
225326C1 3
Cavity Circuit ID
Description
1
178TG (B)
To ground
2
706TF (P)
From connector 102B
1 04/05/2005
A.30.A / 46
