Case 445 - Connector - Component Diagram Frame 25 (A.30.A.87 - C.20.F.25); 435, 445, 445 Ct

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM

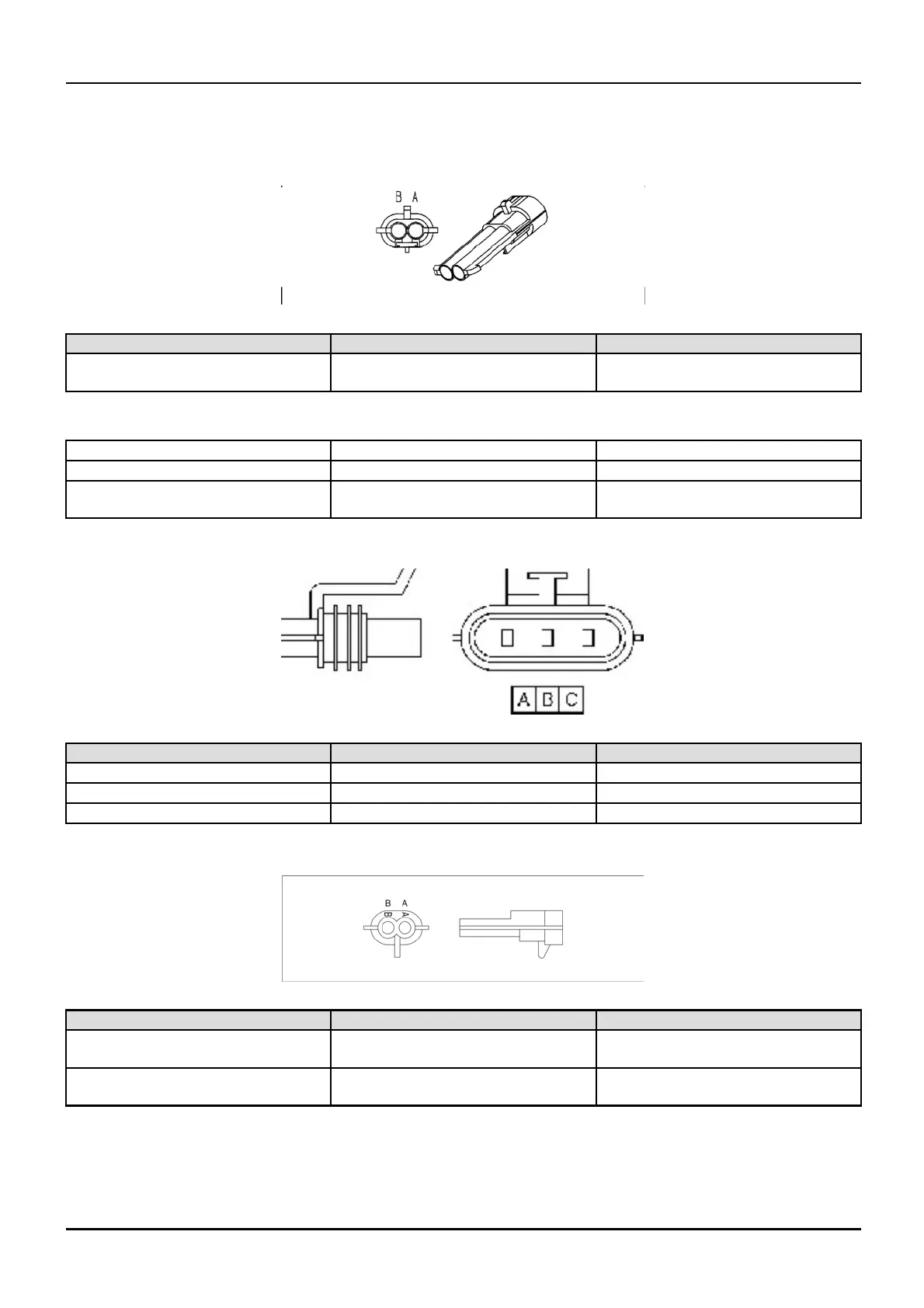

Connector - Component diagram frame 25 (A.30.A.87 - C .20.F.25)
435, 445, 445CT
Connector 79B (Black)
256341A1 1
Cavity Circuit ID
Description
A
311AB (R)
To attachment hydraulic switch
(option B)
Connector 79D
Cavity Circuit ID
Description
B
565AD (T) to 2 speed switch (option D)
A
311AD (R)
To attachment hydraulic switch
(option D)
Connector 85D
256344a1 2
Cavity Circuit ID
Description
A
757AD (LB) From turn signal switch (option D)
B
540AD (O) To turn signal switch (option D)
C 756AD (Y) From turn signal switch (option D)
Connector 123B (Grey)
256294a1 3
Cavity Circuit ID
Description
B
545AB (LB)
From attachment hydraulic switch
(option B)
A
546AB (Y)
From attachment hydraulic switch
(option B)
