Case 445 - Page 166

DISTRIBUTION SYSTEMS - ELECTRICA L POWE R SYSTEM
Cavity Circuit ID
Description
1
001B (B)
To connector 107 pin E
2
002B (DB)
To connector 107 pin F
3
817J (O)
To connector 107 pin K
4
004B (R) To connector 107 pin G
5
005B (Y)
To connector 107 pin H
6
006B (P) To connector 107 pin C
7
007B (T)
To connector 107 pin D
8
008B (W)
To connector 107 pin J
9
178JH (B)
To connector 107 pin B

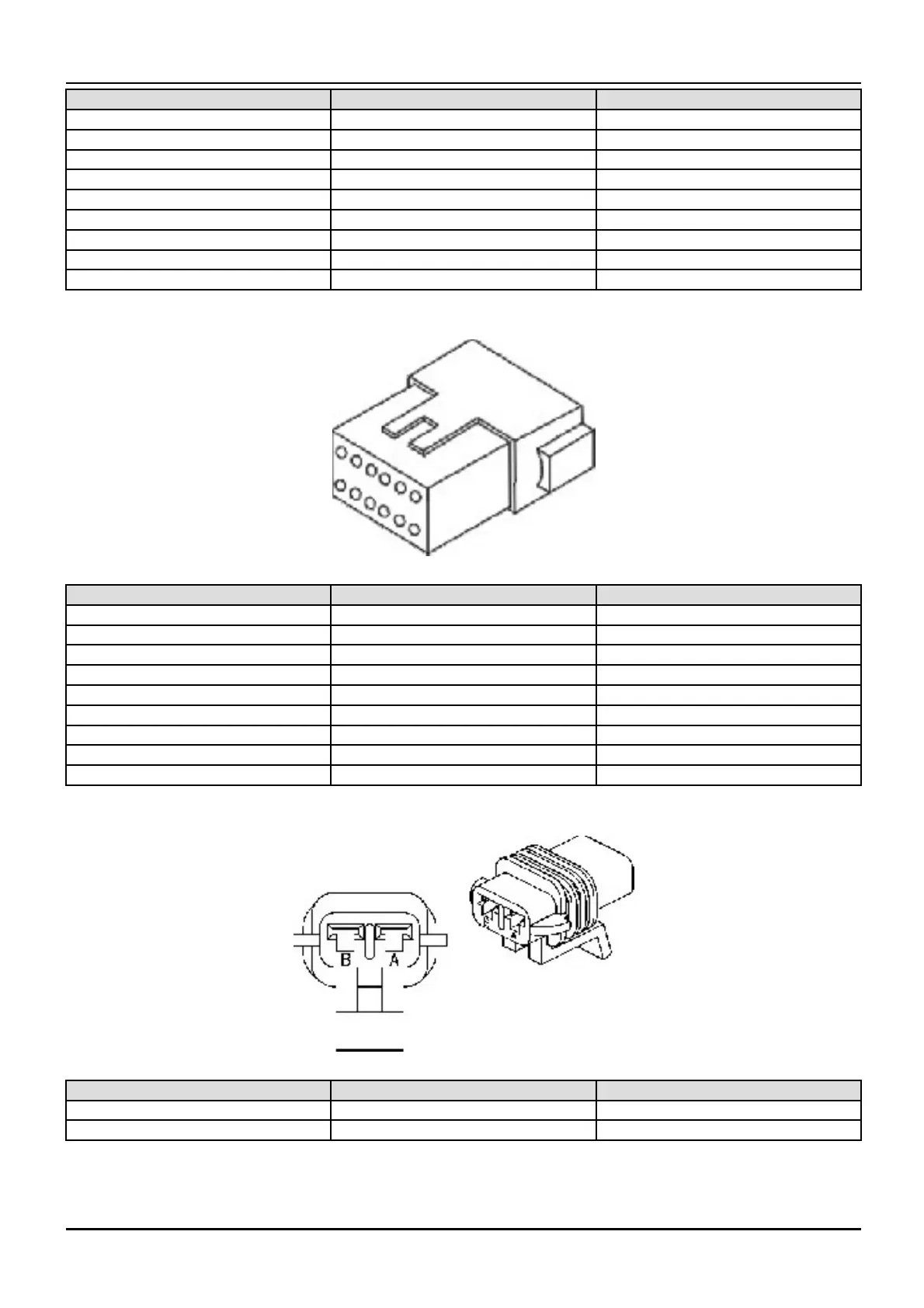

Connector 138A
225388c
1
4
Cavity Circuit ID
Description
1
001A (B)
From connector 49 pin 1
2
002A (DB)
From connector 49 pin 2
3
817H (O)
From connector 49 pin 3
4
004A (R)
From connector 49 pin 4
5
005A (Y)
From connector 49 pin 5
6
006A (P)
From connector 49 pin 6
7
007A (T)
From connector 49 pin 7
8
008A (W)
From connector 49 pin 8
9
178HJ (B)
To ground
Con
nector 150
1
82069a1
5
Cavity Circuit ID
Description
A
817B (R) From options fuse block terminal 2
B
178BU (B)
To ground
1 04/05/2005
A.30.A / 40
