DISTRIBUTION SYSTEMS - PRIMARY HYDRAULIC POWER SYSTEM

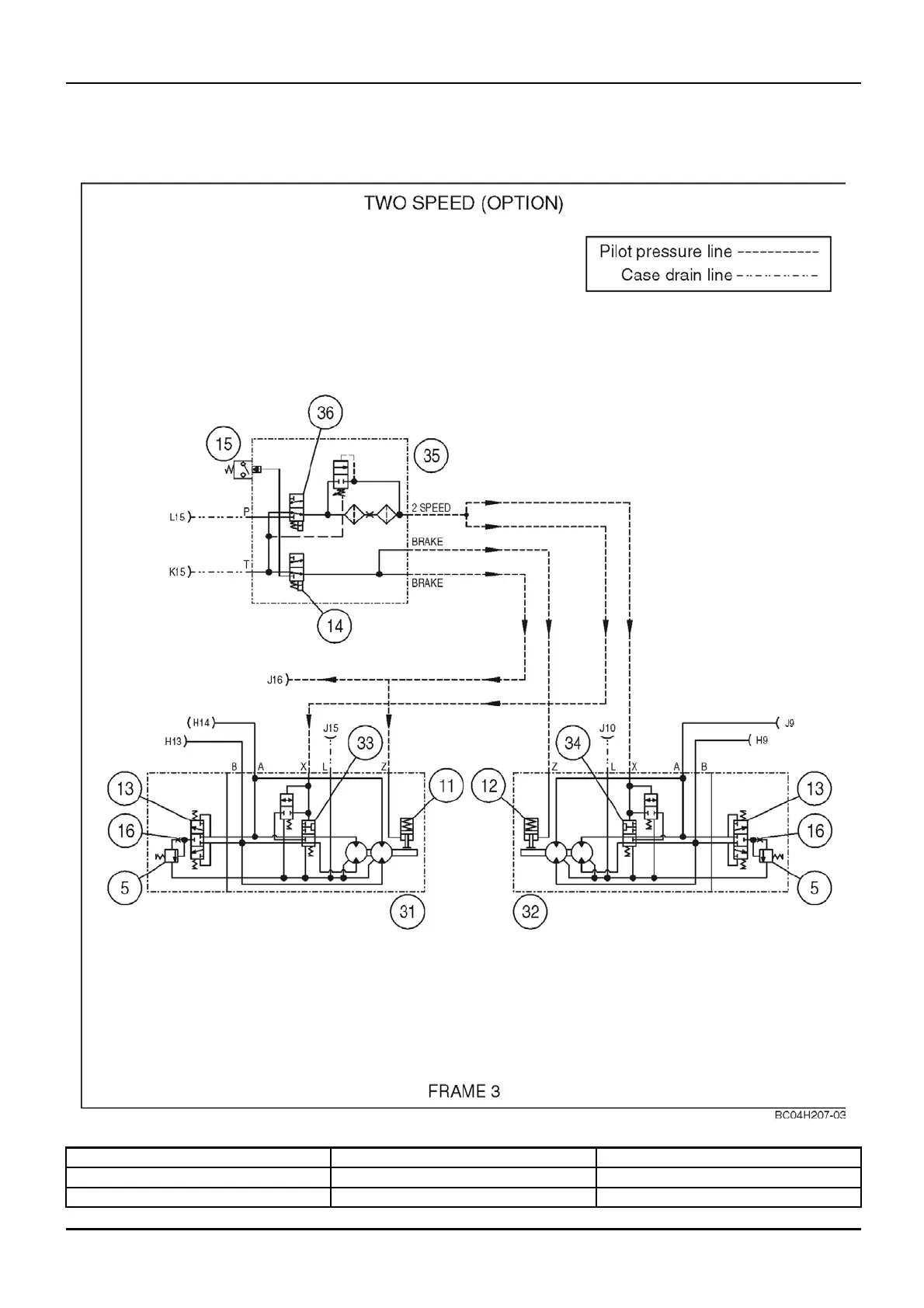

PRIMARY HYDRAULIC POWER SYSTEM - Hydraulic schematic
frame 03 (A.10.A - C.20.H.03)
435, 445, 445CT
bc04h207-03 1
5. Circuit relief valve 15. Charge pressure switch 33. Left two speed shuttle valve
11. Left brake 16. Orifice
34. Right two speed shuttle valve
12. Right brake
31. Left two speed motor 35. Brake/two speed valve
1 04/05/2005
A.10.A / 12
