Case 445 - Page 36

DISTRIBUTION SYSTEMS - PRIMARY HYDRAULIC POWER SYSTEM

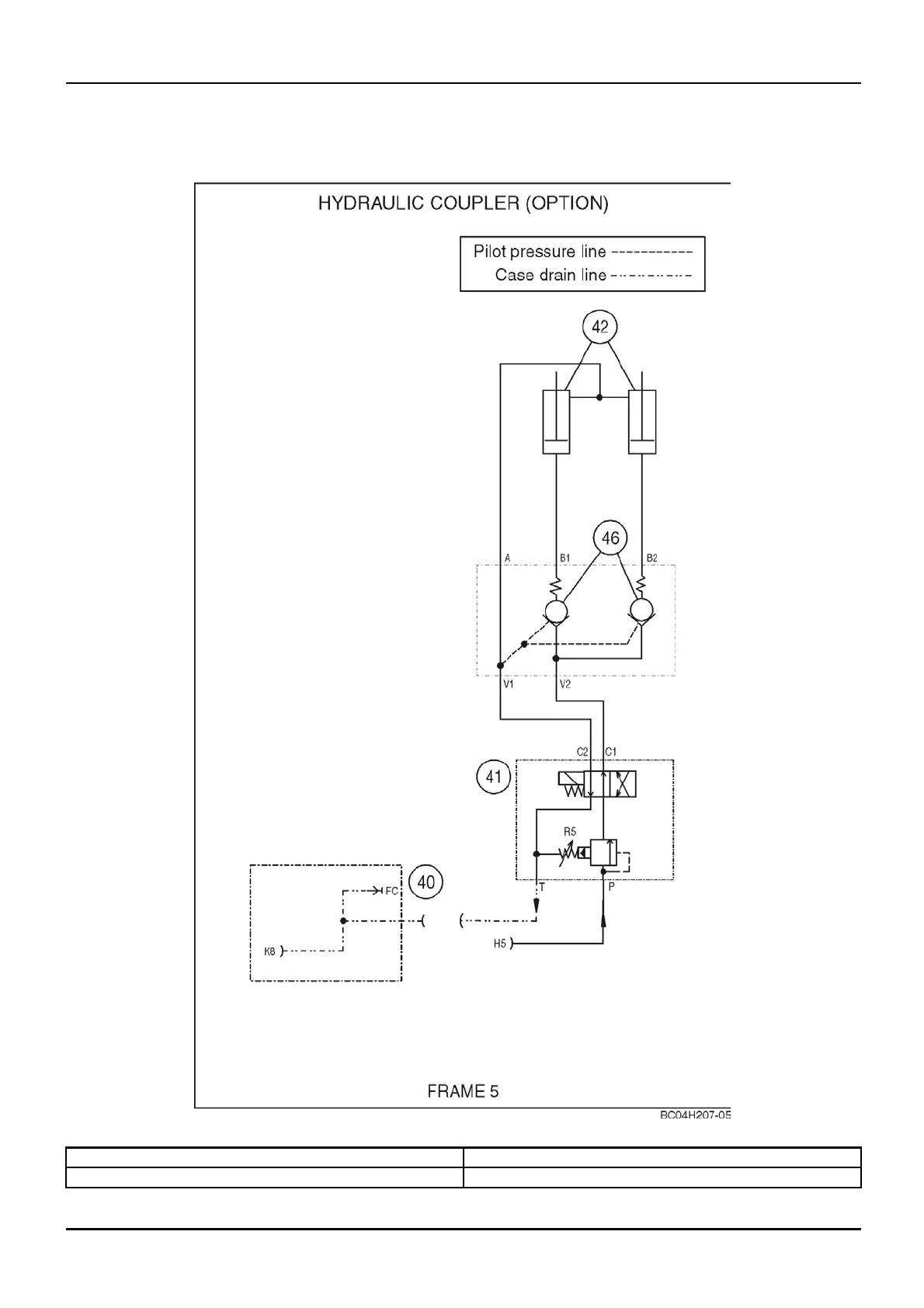

PRIMARY HYDRAULIC POWER SYSTEM - Hydraulic schematic
frame 05 (A.10.A - C.20.H.05)
435, 445, 445CT
bc04h207-05 1
40. Attachmen t case drain 42. Hy drau lic couple r cylinder
41. Hydraulic coupler c on trol valve
46. Check valve
1 04/05/2005
A.10.A / 16
