DISTRIBUTION SYSTEMS - PRIMARY HYDRAULIC POWER SYSTEM

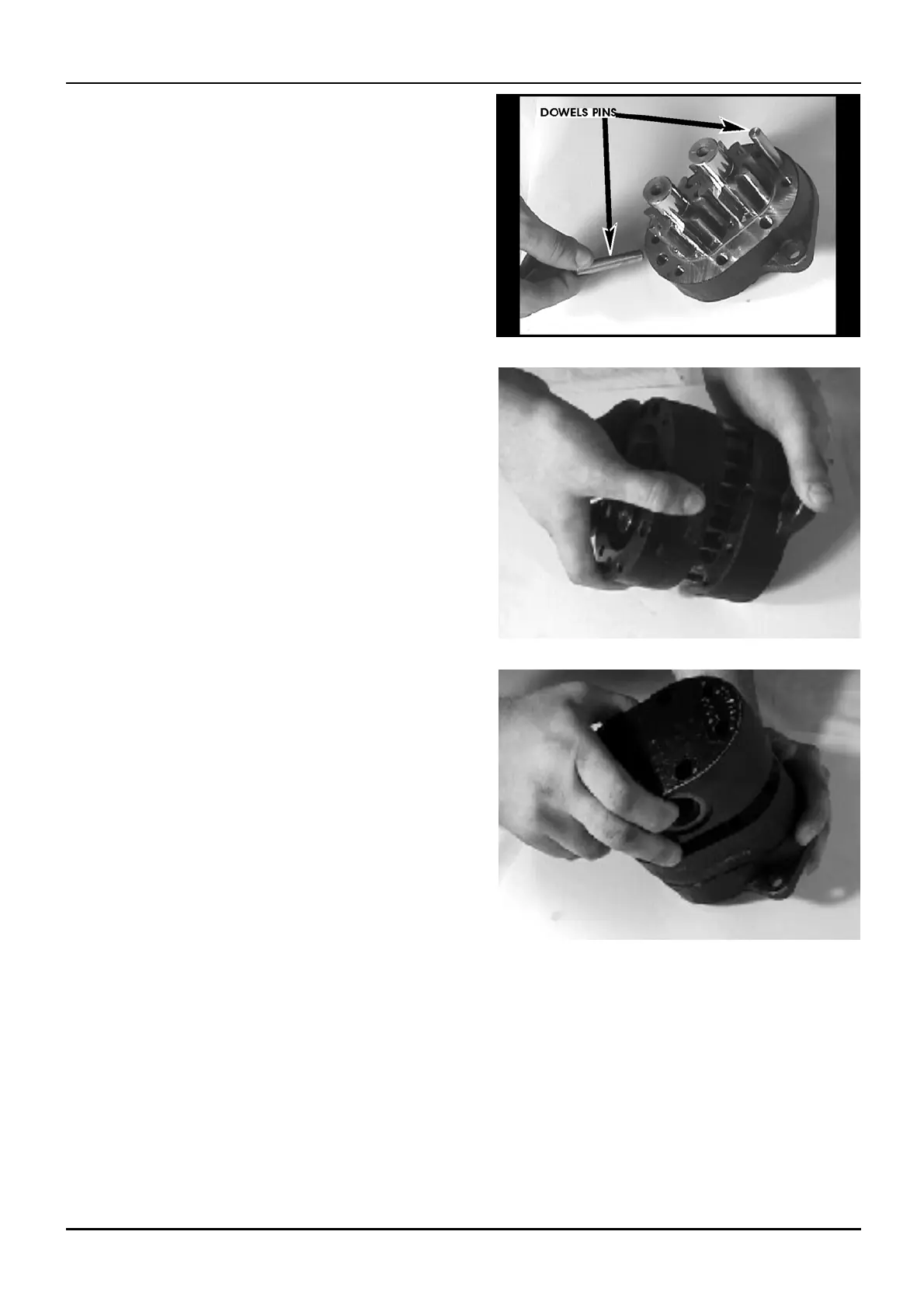

10. Insert the guide dowels into the housing.
GD98J805_2 10
11. Align and slide the gear plate down the shafts and
guide dowels until it is snug against the body.
GD98J804 11
12. During the gear pump disassembly, alignment
marks wer
e placed on the housing for the body
and cover. Please refer to Hydraulic pump -
Disassemble (A.10.A.20 - F.10.A.25). Align an d
place the
cover on top of the body
GD98J80
3
12
