Casio EXILIM EX-Z77 User Manual

153
VIEWING SNAPSHOTS AND MOVIES
Use the procedure below to view snapshots and movies on a TV
screen.
1. Use the AV cable that comes with the camera
to connect the camera to a TV.
• When connecting the bundled AV cable to the camera’s
USB/AV port, insert the plug into the port until you feel it
click securely into place. Failure to insert the plug fully
can result in poor communication or malfunction of the
connected components.
• Some metal of the plug is visible even
when the plug is inserted correctly.
2. Turn on the TV and select its video input
mode.
If the TV has more than one video input, select the one
where the camera is connected.
3. Press [ ] (PLAY) to turn on the camera and
enter the PLAY mode.
When the camera turns on in the PLAY mode, an image will
appear on the TV screen. The camera’s monitor screen will
not turn on.
• Pressing [ON/OFF] or [ ] (REC) will not turn on the
camera.

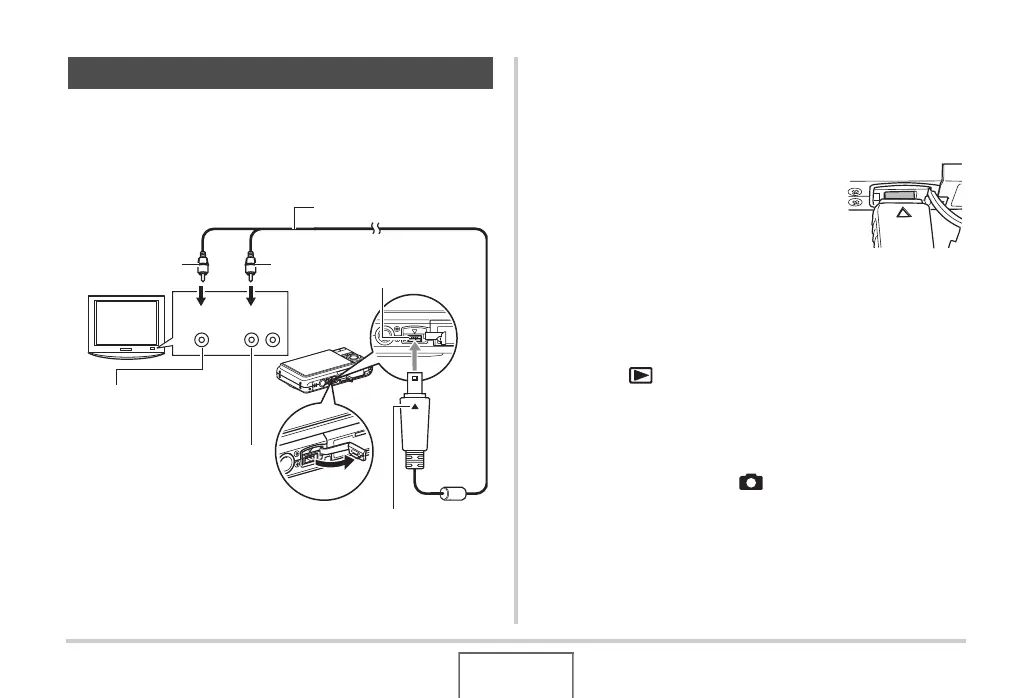

Viewing Camera Images on a TV
Yellow
VIDEO IN Jack
(Yellow)
White
TV
AUDIO IN Jacks
(White)
AV Cable
USB/AV
connector
Video Audio
Making sure that the T mark on the camera is aligned
with the S mark of the AV cable plug, connect the cable to
the camera.

Casio EXILIM EX-Z77 Specifications

General

Digital SLR	No
Video capability	Yes
Dimensions (WxDxH)	95 x 19.8 x 59 mm
Focal length (35mm film equivalent)	38 - 114 mm
Product color	Pink
USB version	2.0
Display diagonal	2.6 \
Display resolution (numeric)	479 pixels
Compatible memory cards	mmc, sd
Megapixel	7.2 MP
Sensor type	CCD
Image sensor size	1/2.5 \
Digital zoom	4 x
Optical zoom	3 x
Combined zoom	12 x
Focal length range	6.3 - 18.9 mm
White balance	auto, manual
Flash modes	auto, Flash off, manual, Red-eye reduction
Camera shutter type	electronic, mechanical

Weight and Dimensions

Depth	19.8 mm
Width	95 mm
Height	59 mm
Weight	118 g
