E-114
Using the Cradle-type Battery Charger (HA-M30CHG)
The optionally available Cradle-type Battery Charger (HA-M30CHG) lets you charge
the battery pack installed in the tablet simply by placing the tablet onto the charger.

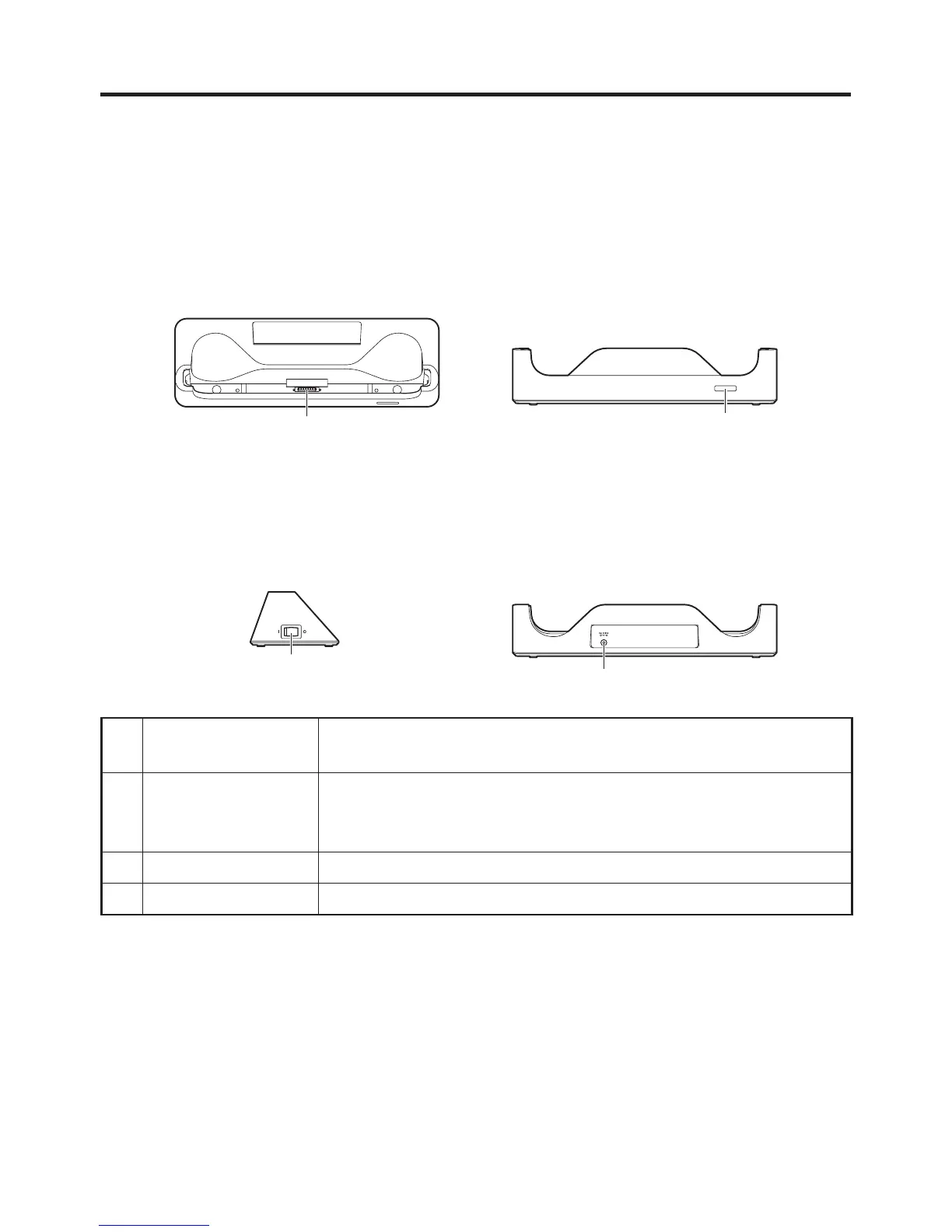

General Guide
2
Front
3
Right
4
Back
Top
1
1 Power Supply
Terminals
Power is supplied to the V-T500 via these terminals.
2 Power Indicator
LED
Off: Power off
Red: Power on, V-T500 is not installed
Green: Power on, V-T500 mounted correctly
3 Power Switch Turns the power on and off.
4 AC Adaptor Jack Connect the AC adaptor (sold separately) here.
