E-26
Dual Battery Charger

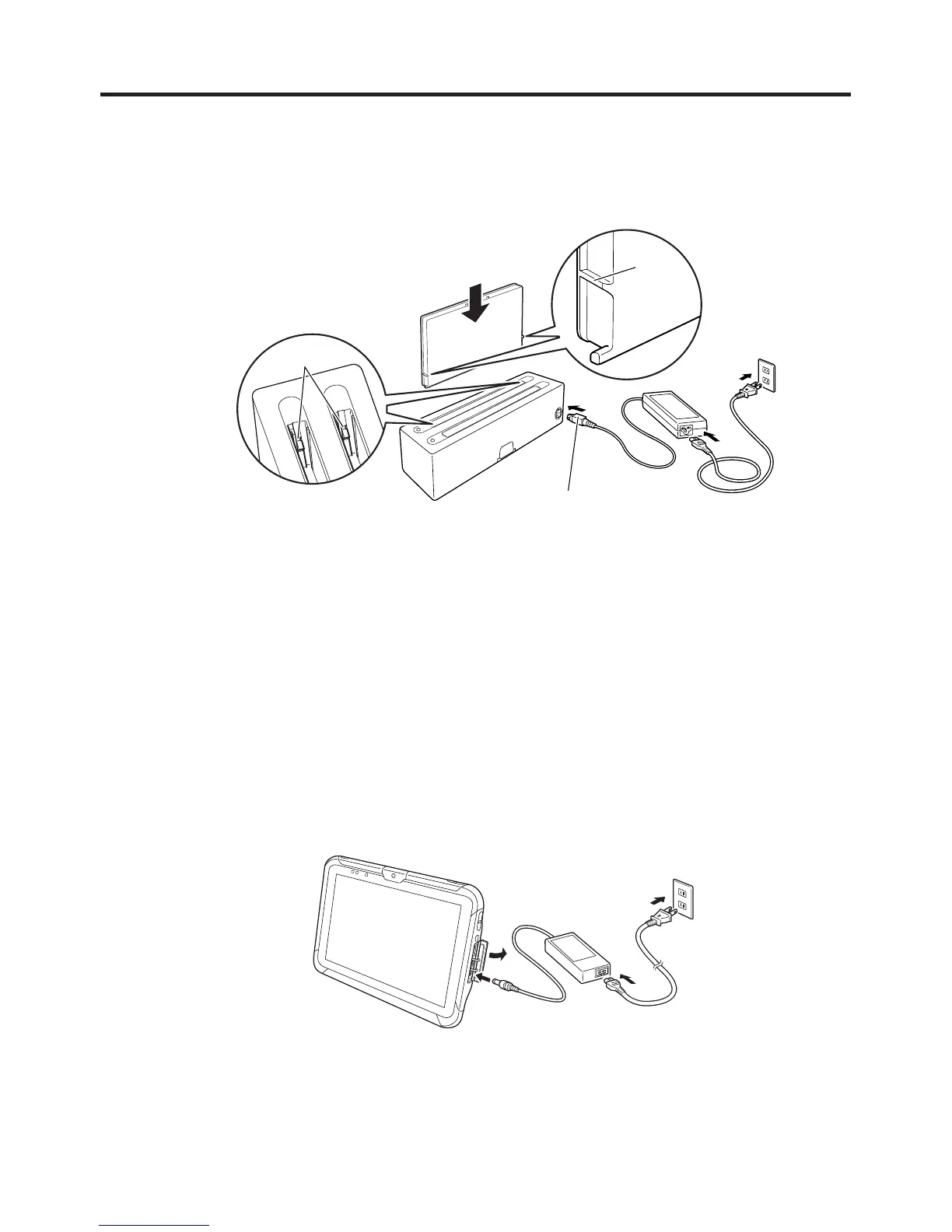

Push the battery pack in until the mount hooks on the charger engage the mount lugs on
the battery.
With the engraved side upwards,
push the connector fi rmly into the
jack until it clicks into place.
Hook
Lug
You can connect up to three Dual Battery Chargers. See E-120 for the connection method.
Status of Charge Indicator LED
Off: Not charging
Orange: Charging
Red: Battery pack problem or standby due to the surrounding temperature being
beyond the specifi ed temperature range (Approximately 0°- 40°C) (charging
resumes when the temperature reaches the range.)
Green: Charging complete
AC Adaptor
Status of Charge LED on V-T500:
Refer to “Ethernet Cradle/Cradle-type Battery Charger” on the previous page.
■
■
