E-122
Using the AC Adaptor (AD-S36120A-N)
With the option AC adaptor (AD-S36120A-N) directly connected to the tablet,
battery pack installed in the tablet can be charged. Follow the steps below.

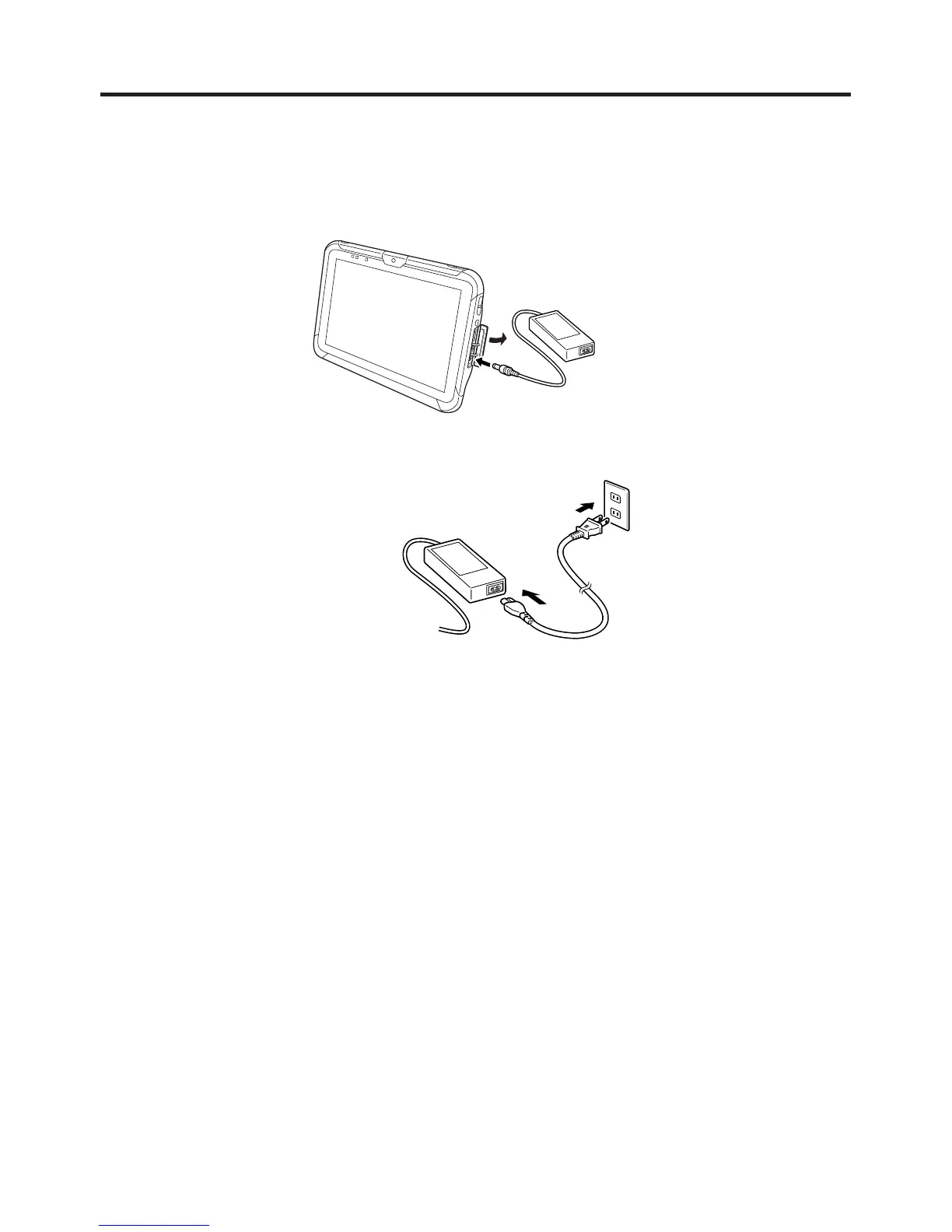

1. Plug in the cord from the AC adaptor to the DC Jack on V-T500.
2. Plug in one end of power cord to the AC adaptor and the other end to a wall outlet.
As soon as charging starts, charge LED on the V-T500 lights orange. After charging
is complete, it lights green.
Status of Charge LED on V-T500:
Orange: Charging (battery level at 6% or more)
Red: Battery level down to 0-5%
(until a level of 5%, tablet will not start up)
Battery pack error
Blinking red: Standby due to being outside the temperature range for charging
(charging begins when the temperature is within the charging temperature range)
Green: Charging complete
* If, after 30 minutes or more at normal temperature, you plug the AC adaptor in again
and the charge LED is still red or off, there is a fault. Immediately stop using the
product and contact the dealer or distributor where you purchased the product, or an
authorized CASIO service provider.
* If the remaining battery change is 5% or less when the AC adaptor is connected
correctly, the charge LED turns off for approximately 0.5 seconds and then lights red.
