E-119
Charging a Battery Pack
Use the optionally available AC adaptor (AD-S90190C-N5) for the power supply of the
Dual Battery Charger.

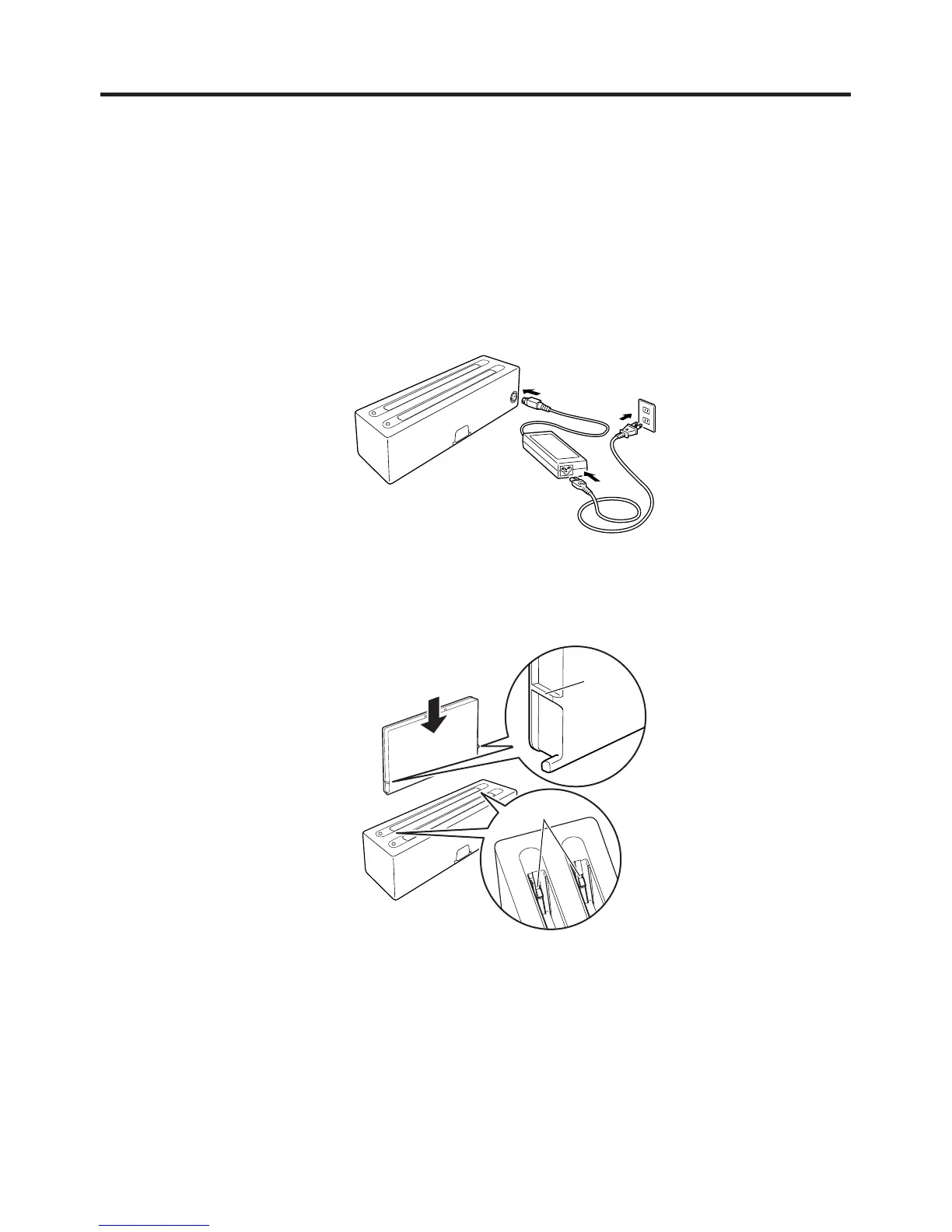

1. Plug the cord from the AC adaptor into the AC adaptor jack of the Dual Battery
Charger. With the engraved side upwards, push the connector fi rmly into the jack
until it clicks into place.
2. Plug one end of power cord into the AC adaptor and the other end to a wall outlet.
3. Check the orientation of the battery pack and then push it in until the mount hooks on
the Dual Battery Charger engage the mount lugs on the battery.
This causes the Charge Indicator Lamp to light in orange, indicating that charging has
started.
Lug
Hook
Charge Indicator Lamp
Off: Not charging
Orange: Charging
Red: Battery pack problem or standby due to the surrounding
temperature being beyond the specifi ed temperature range
(Approximately 0°- 40°C) (charging resumes when the
temperature reaches the range.)
Green: Charging complete
■
To Next Page
