E-111
Connecting the Ethernet Cradle Power Supply
Use the optional AC adaptor (AD-S36120A-N) for the power supply of the Ethernet
Cradle. Always make sure to connect the AC adaptor to the Ethernet Cradle before
performing communication with the tablet. Power to the tablet is supplied from the
Ethernet Cradle.

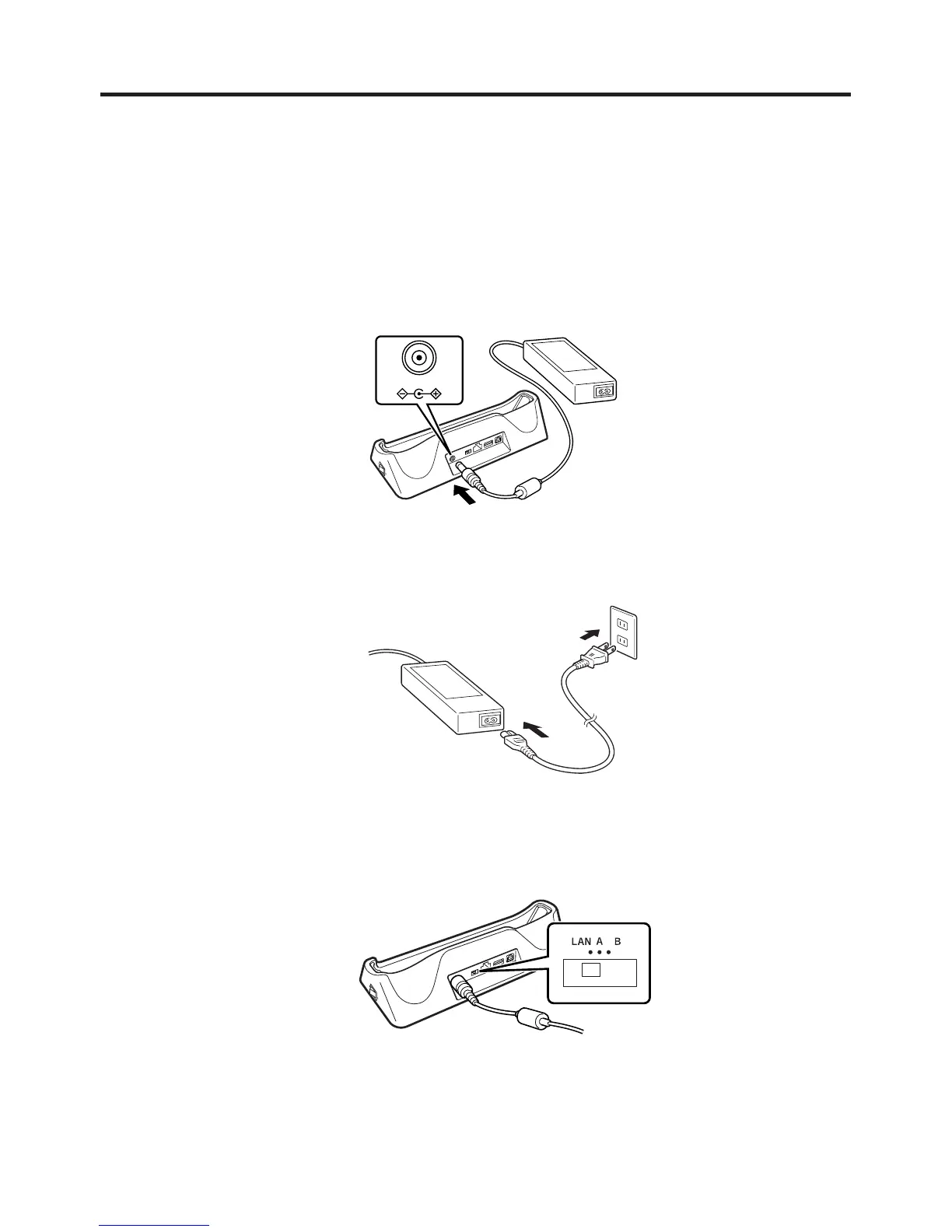

1. Plug the AC adaptor into the AC adaptor jack on the back of the Ethernet Cradle.
DC IN 12V
2. After connecting the power cable to the AC adaptor, plug the other end of it into an
electrical outlet.
3. Use the selector switch on the back of the Ethernet Cradle to select the port to be
used. Set the switch to the “LAN” position when using the LAN port on the cradle.
Set the switch to the “B” position when using the unit as a USB client, or set it to the
“A” position when using the unit as a USB host.
