2.
Installation
2.1.
X2000
Hardware
Cassia X2000 Gateway
Power-over-Ethernet (POE) 802.3af/at compliant source, or PoE injector if PoE network
is not available

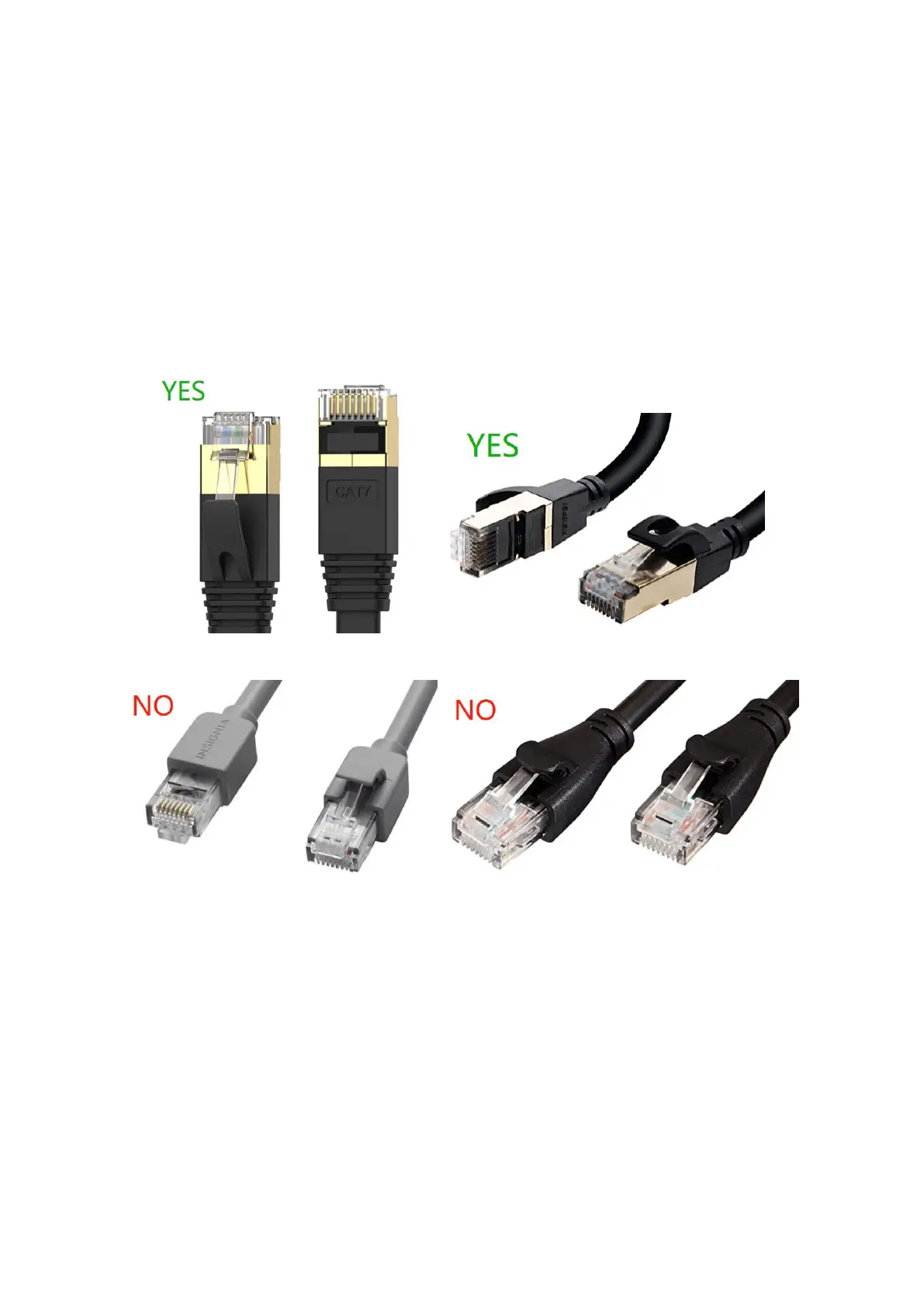

CAT5 Ethernet cable with standard RJ45 connector (Patch cord): 1 unit if PoE available,
or 2 units if used with PoE injector. Only the Ethernet connector without the outer PVC
jacket can fit X2000’s cable glands.
12V DC power source or AC/DC power adapter (if not using PoE). The DC connector
type should be interior diameter 2.5 mm, outside diameter 5.5 mm, center +v, and
outer –v. The output voltage should be 12V. The output power should be equal to or
larger than 12 W. Please don't use PoE and 12V DC at the same time.
Optional external Bluetooth antennas. The connector on X2000 is a 50 Ohm N type
female connector. The antenna and cable should have N type male connector.
Computer System (Desktop/Laptop/Tablet/Smart Phone) with Wi-Fi connectivity
USB cellular modem: Required only if set up over a SIM-based Internet connection
