C16QS Hardware Manual
3.9.2 Module Status Indication
✓ The C16QS module provides a pin as a working status indicator for the module
✓ This pin can be used to connect to a GPIO or LED with pull-up
✓ It is used to indicate the power-on status of the module
✓ The drive current should be less than 0.8mA
✓ The STATUS pin will output a high level.
Table 3-17 Module Status Indicator Pin Definition
The following figure shows the STATUS reference circuit design:

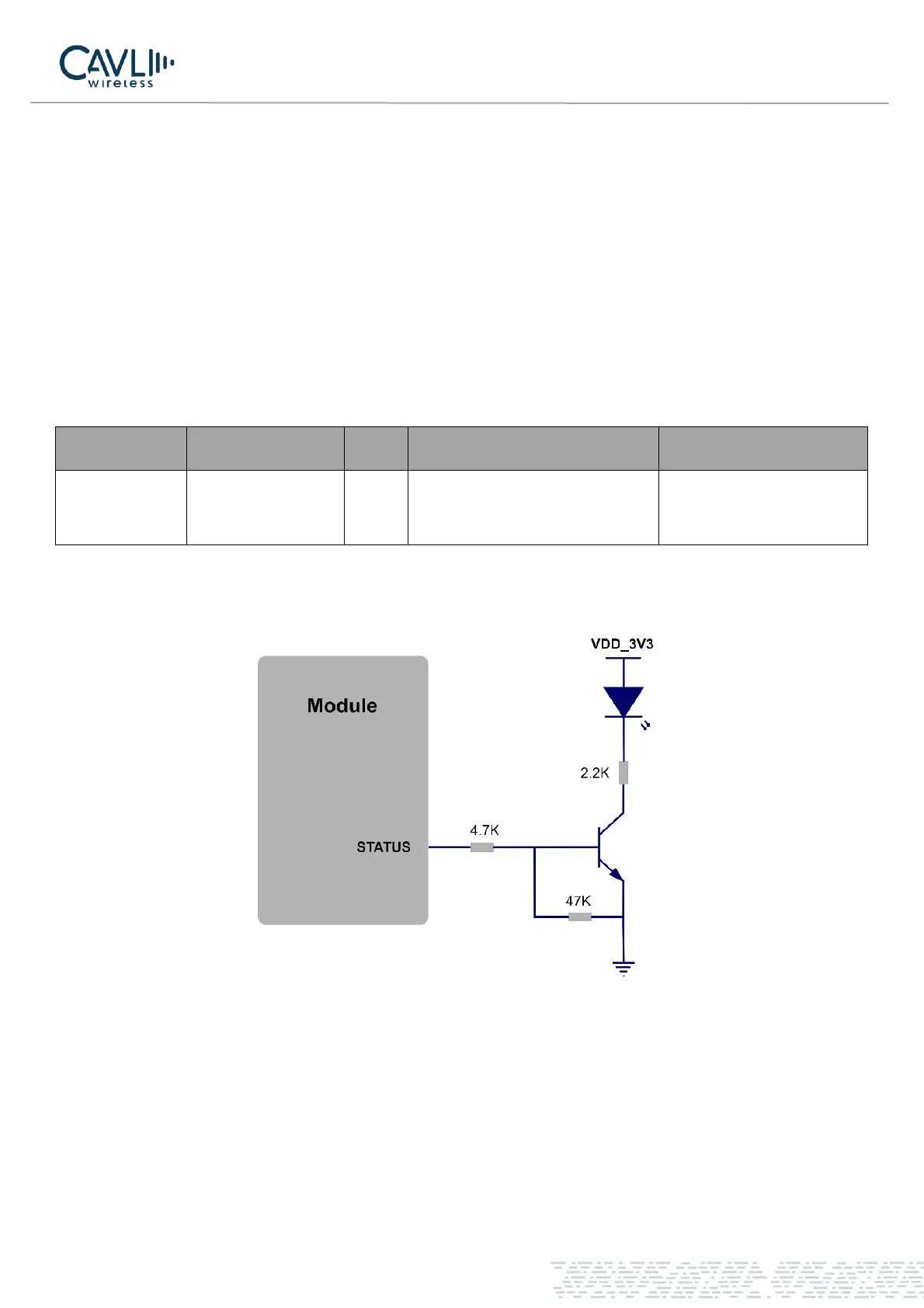

Figure 13 STATUS Pin Reference Circuit
Pin
Signal name
I/O
Description
Remarks
20
STATUS
DO
Module power on status
indication
External pull-up
