C16QS Hardware Manual
The RF connector plug for this connector is the U.FL-LP series from HRS.

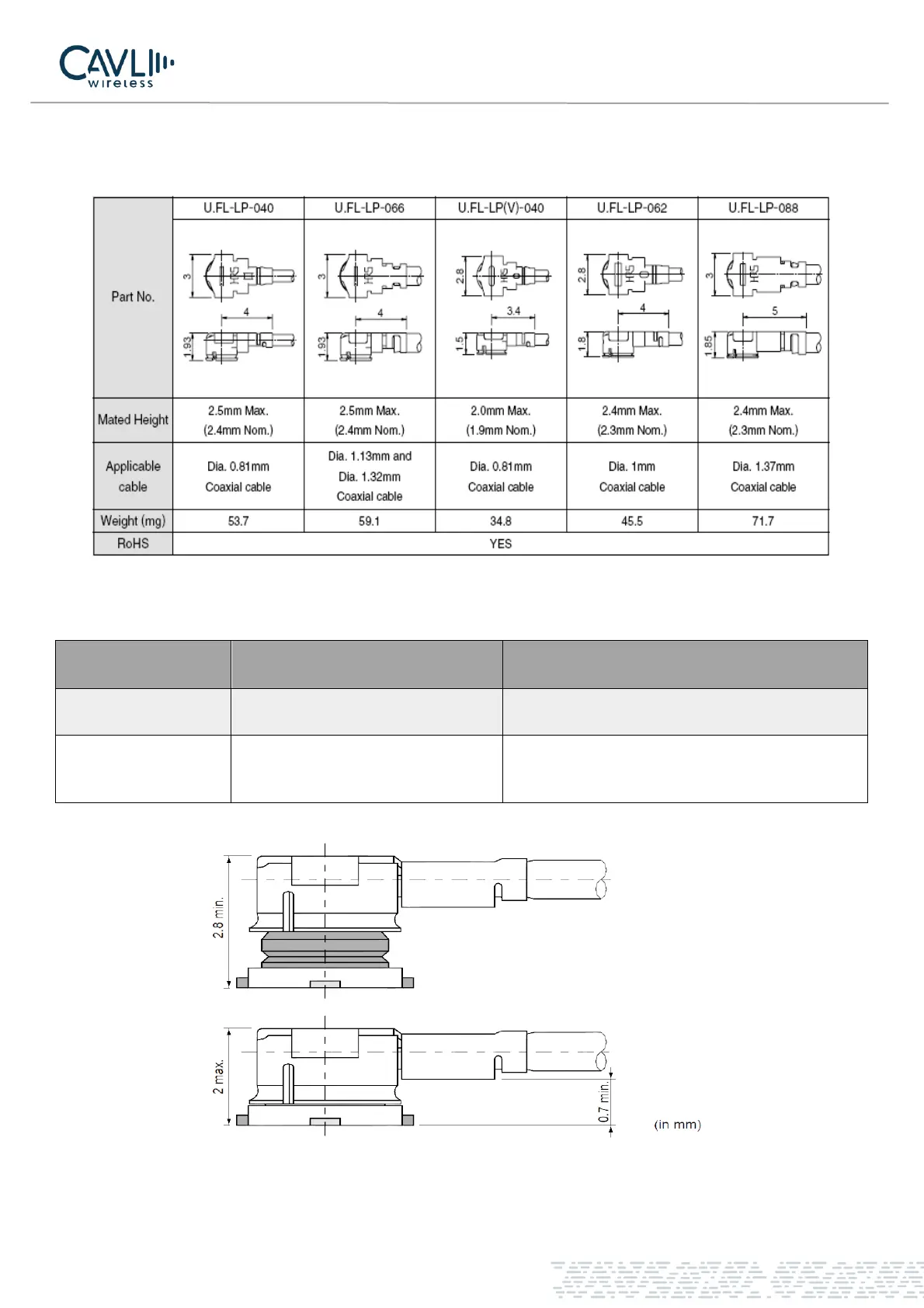

Figure 22 Antenna connector matching plug diagram
Table 3-24 Main parameters of the RF connector
Figure 23 Matching coaxial RF line size
Rated condition
Environmental conditions
Frequency Range
DC to 6 GHZ
–40°C to +85°C
Characteristic
impedance
50 Ω
–40°C to +85°C
