C16QS Hardware Manual

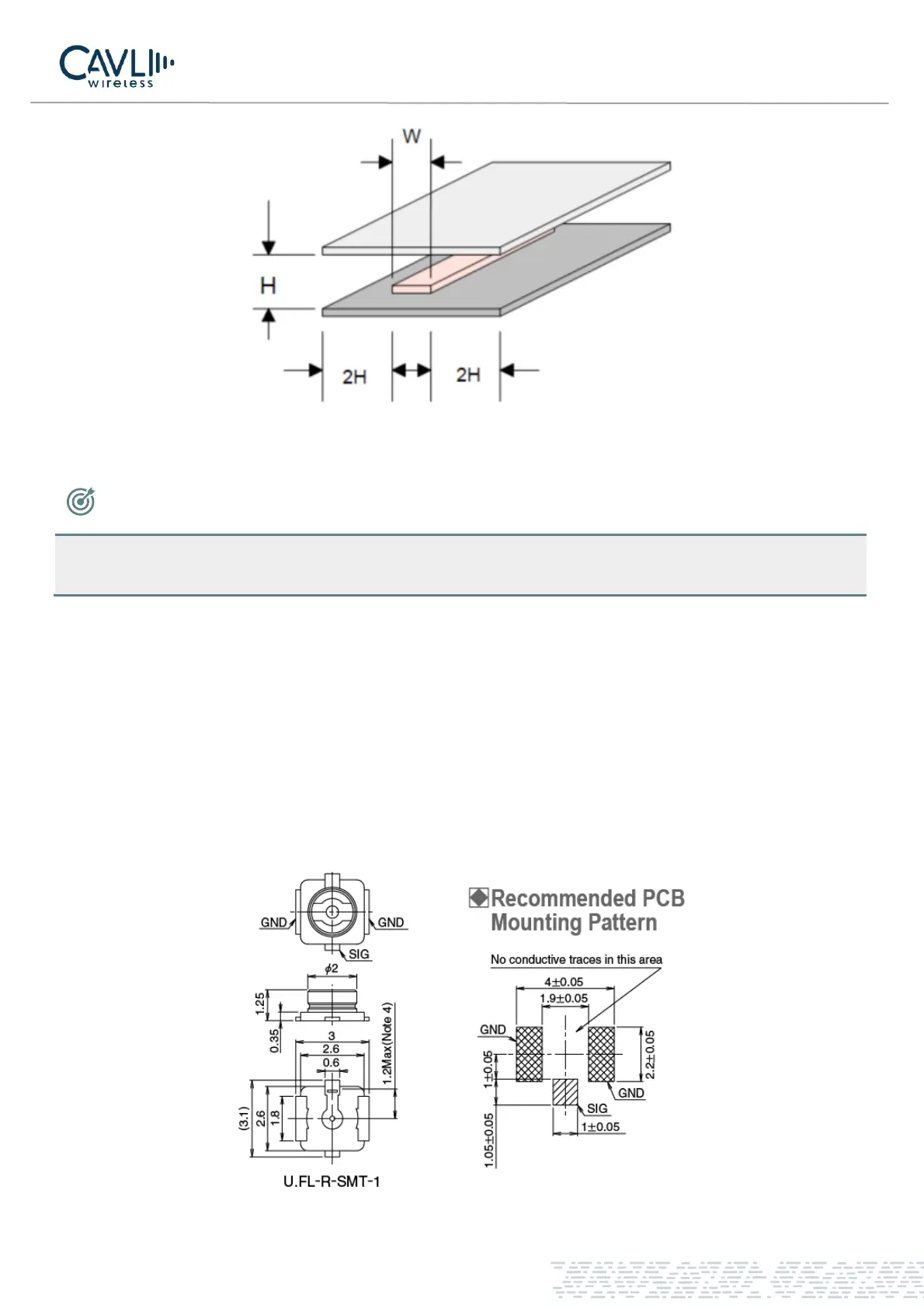

Figure 20 The complete structure of the multilayer PCB strip line
NOTE
• Since Coplanar antennas are having maximum noise immunity, it is preferred.
3.14.2 RF Connector Size
✓ If the RF connector is used, the antenna connector must use a coaxial connector with a 50-ohm
characteristic impedance.
✓ Hirose's U.FL-R-SMT connector is recommended.
Figure 21 RF connector size chart
