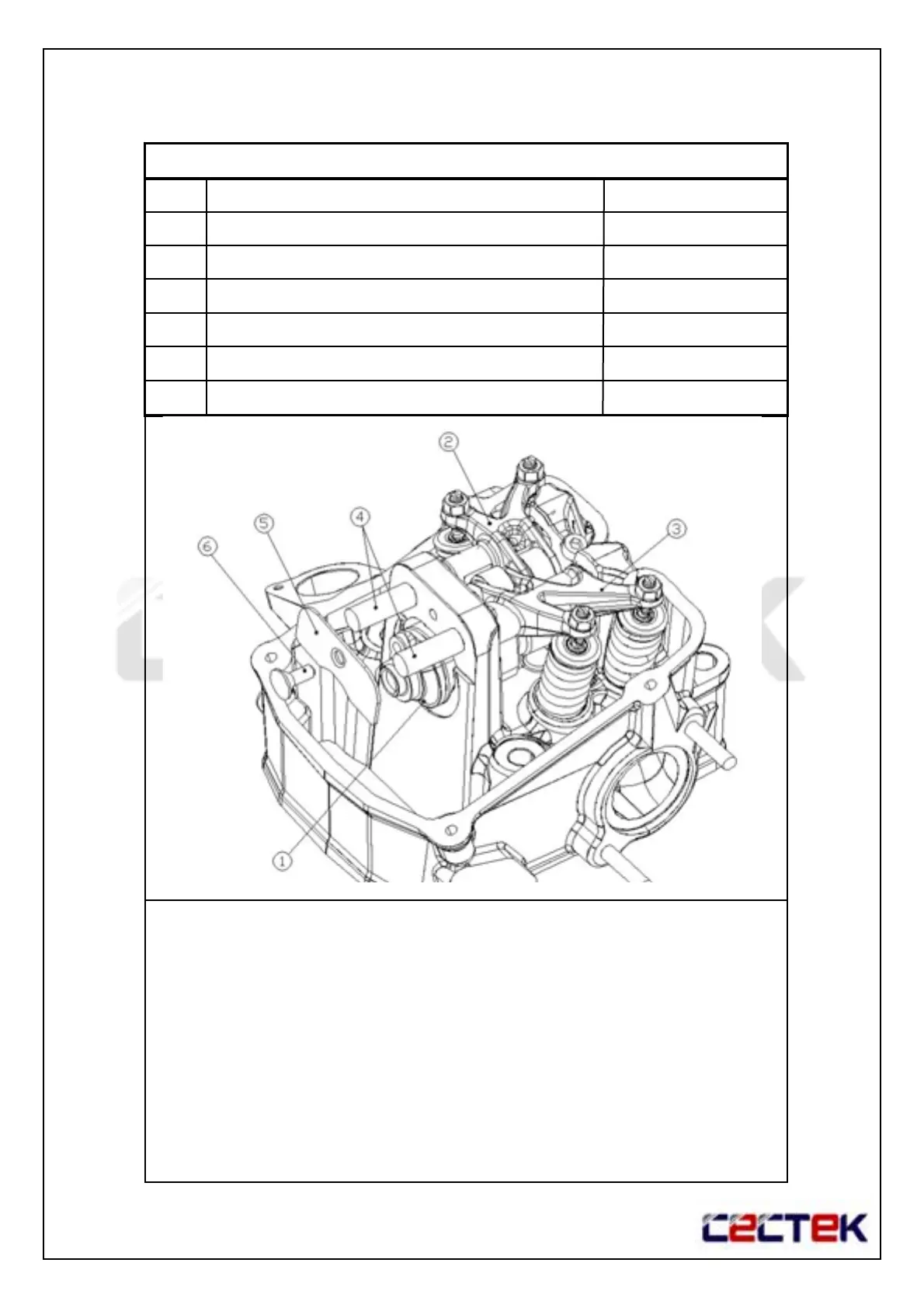

THE CYLINDER HEAD ASSEMBLY (3/3)
40070065PLATE5.
40070063SHAFT4.
40078017ROCKER ARM ASSY. (EXHAUST)3.
40078016ROCKER ARM ASSY. (INTAKE)2.
40070068CAM SHAFT1.
PART NO.PART NAMENO.
Please clean up correlative parts and lubricate with 10W/40 oil
1.Install cam (1) through cam bore
2.Install intake rocker (2) on the cam shaft , the rocker face toward
intake side.
3.Install exhaust rocker (3) on the cam shaft , the rocker face toward
exhaust side.
4.Install shaft roecker assy (4) x2 through intake rocker (2) and
exhaust rocker (3)
5.Install the screw (6) through plate (5) and tighten to 9Nm ,
attention for the bottom of plate shall be clipped onto the groove of
cam shaft.
6.Adjust the intake/exhaust valve gap to 0.3 mm.
SCF060160883FLAT HEAD SCREW6.
55
