9.5 Dismantling side plate and opening lid
Note that the pump can be activated even if the side plate is dismantled.

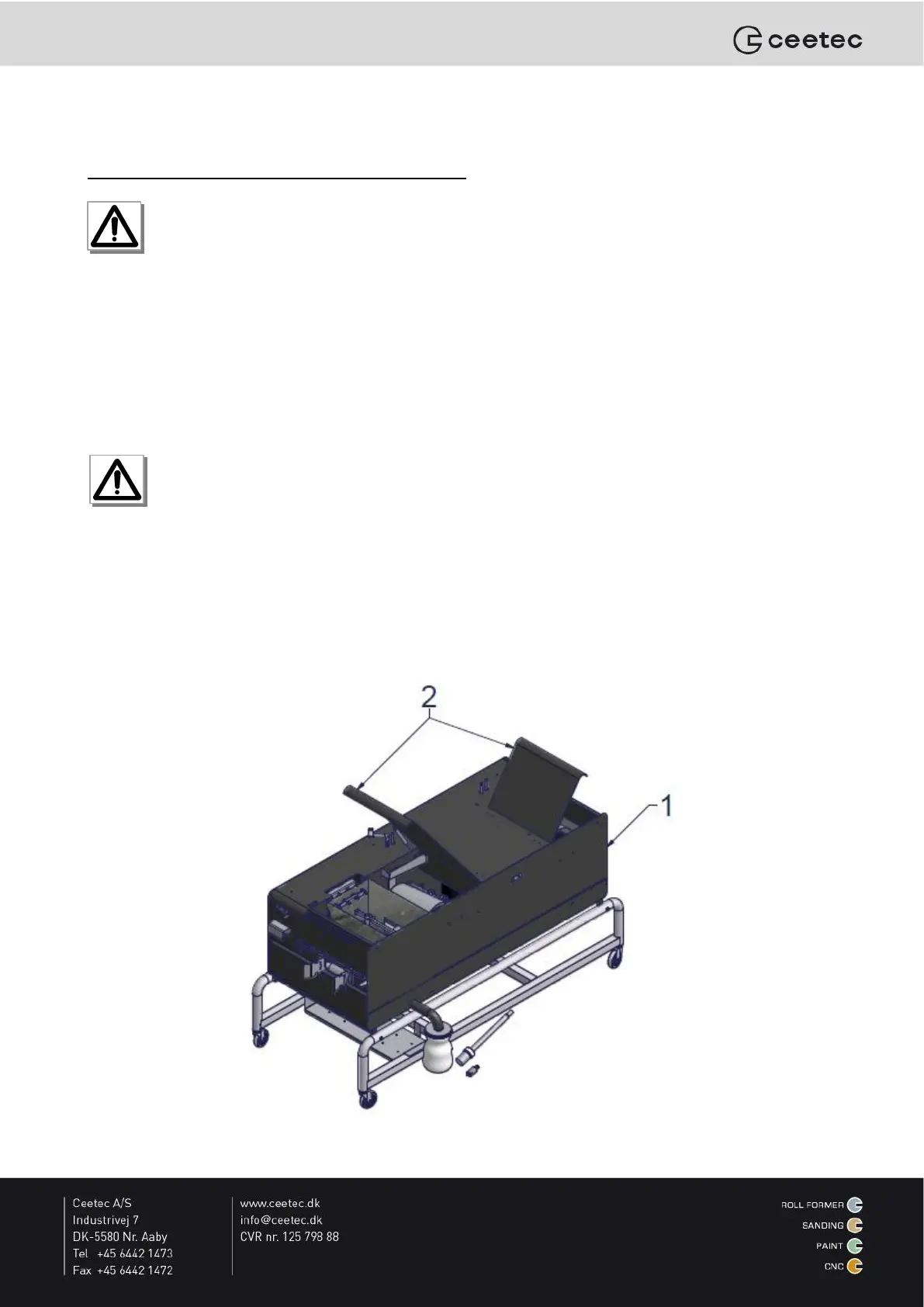

The side plate (1) on the right side of the machine is mounted with locks which make it easier to dismantle it
without the use of tools. The side plate is monitored by a contact which means that forward drive and
brushes cannot run when the side plate is not mounted – however the machine’s pump is not affected by this
function.
In order to start the machine’s forward drive and the rotation of the brushes the side plate must be mounted
correctly. If the door is opened while the machine is running, the machine’s forward drive and the rotation of
the brushes is stopped immediately. In order to restart the plate must be mounted correctly, and a new start
command is given with the start button.
Note that the pump can be activated even if the lids are open.
Lids (2) over forward drive and brushes are hinged and can be opened. The lids are monitored by a contact
which means that forward drive and brushes cannot run when the lids are open – however the machine’s
pump is not affected by this function.
In order to start the machine’s forward drive and the rotation of the brushes the lids must be closed. If the
door is opened while the machine is running, the machine’s forward drive and the rotation of the brushes is
stopped immediately. In order to restart the lids must be closed, and a new start command is given with the
start button.
