9 Adjustment/setting of the machine
Do not make adjustments while the machine is running. For every adjustment it must be ensured
that the machine is:
- Free of items (empty)
- Not moving (emergency stop is activated)
- Power supply is disconnected
We recommend that operators use rubber gloves and eye protection during work. Also check the
product sheet/supplier user manual for requirements to other protective equipment.
9.1 Intake guide, middle guide and overpressure roller

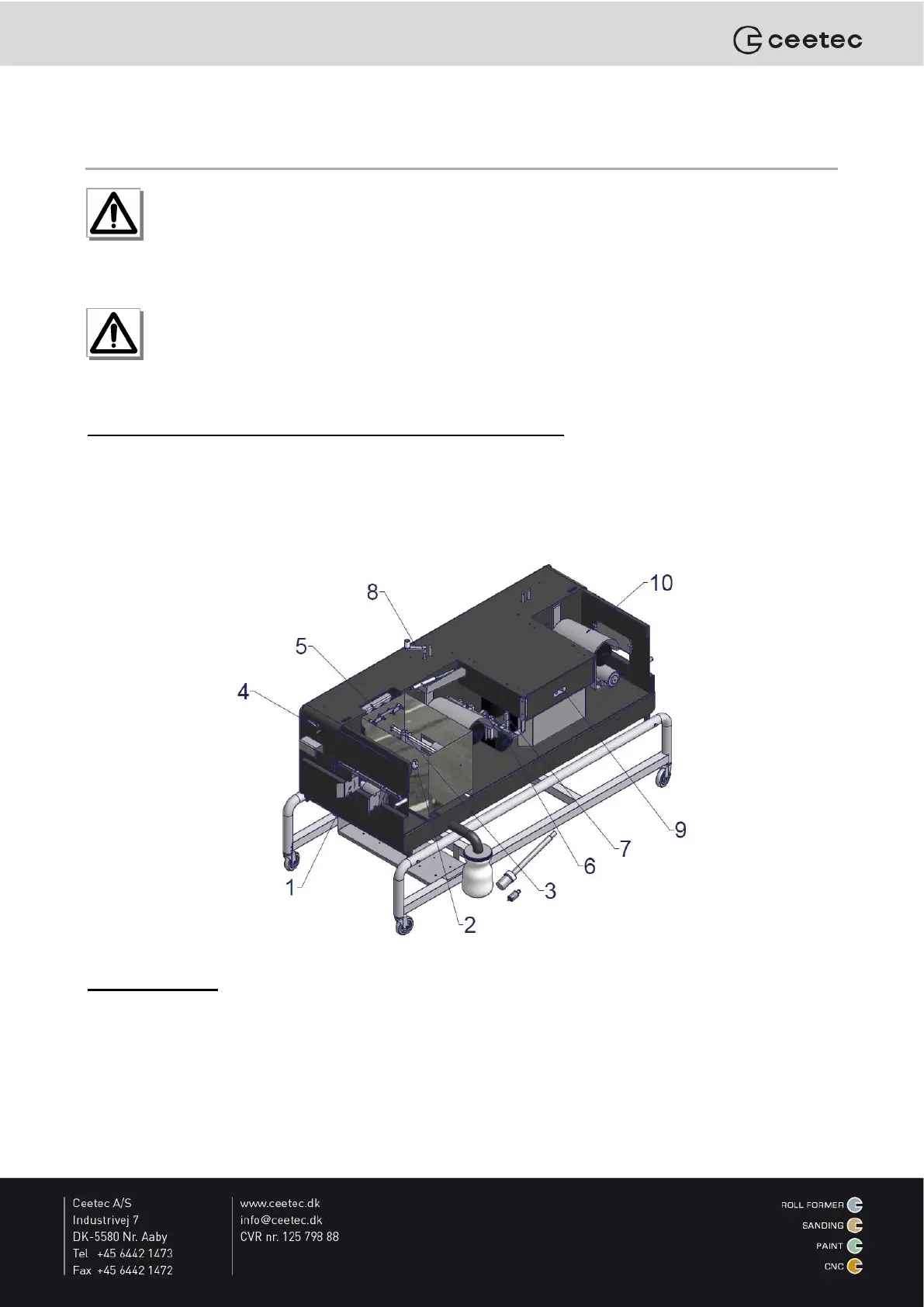

The intake guides (1) and the middle guides (6) steer the item sideways. The guides are set by loosening the
finger screws and moving them towards the item. There must be 2-3 mm “air” at both sides. The
overpressure rollers (6) must prevent the bottom horizontal brushes from “lifting” thin items (up to 20 mm).
The rollers are set by loosening the finger screws and moving them towards the item. There must be app. 5-
10 mm “air” over the item.
9.2 Nozzles
The nozzles (3) are placed app. 50 mm from the item. The amount of wood protection is regulated by
opening or closing the taps (5)
