12 Replacing spare parts
All replaceable parts can be accessed easily when the side plate, shield on the back lid and/or the bottom
protection cover is dismounted.
When replacements have been made the assembly must take place in reverse order. DO NOT START the
machine until all protective devices are mounted.

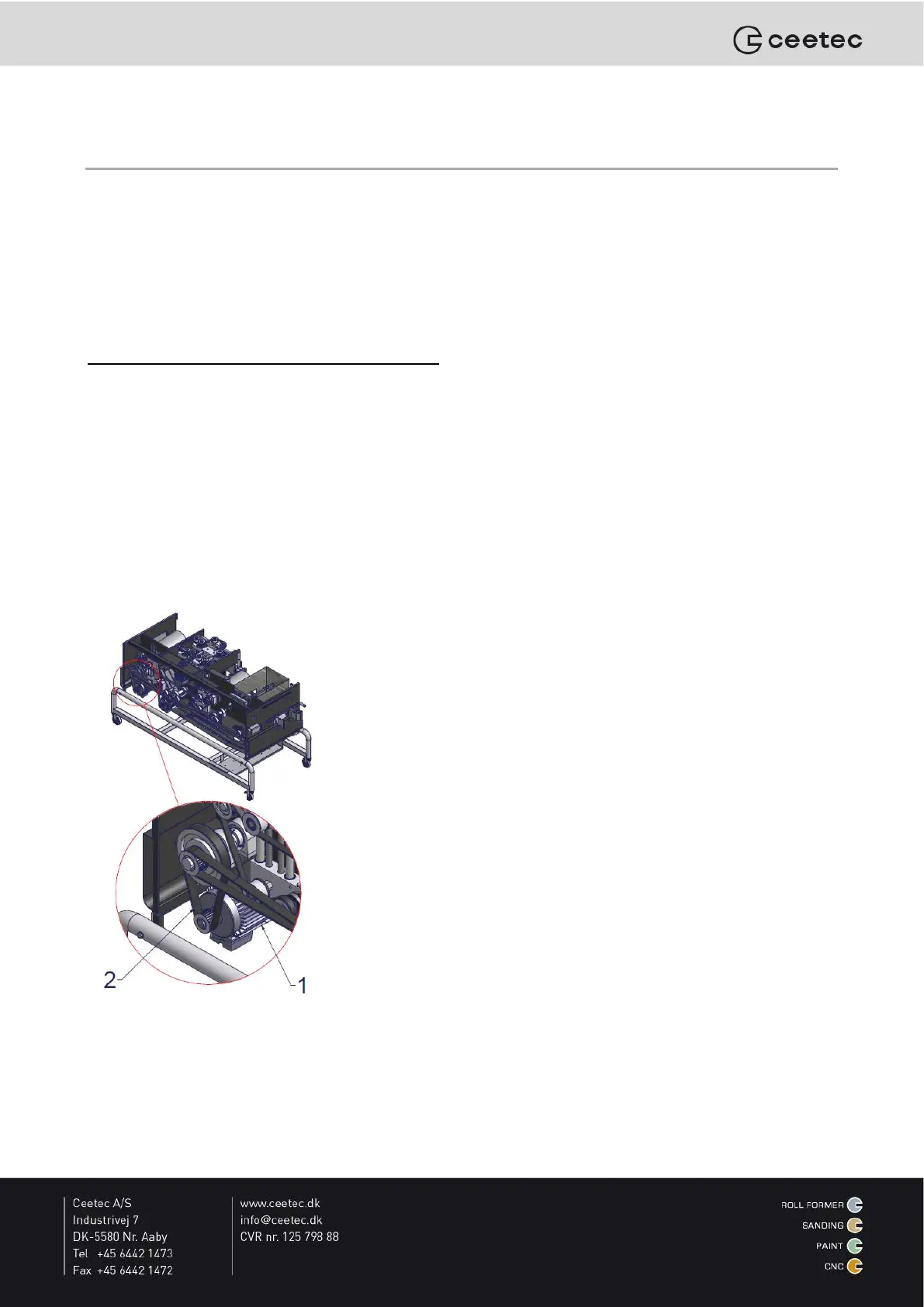

12.1 Toothed belt for motor – feed roller
Replacement of belt for motor – feed roller is carried out the following way:
· 4 bolts on motor (1) are loosened
· Motor is displaced (belt is loosened)
· Old belt (2) is dismounted and new belt is mounted
· Motor is displaced (belt is tensioned)
· 4 bolts on motor are tightened
