11.3 Toothed belts
All the machine’s rotating parts are driven by toothed belts.
All toothed belts are equipped with tension pulleys and must be checked for the first time after app. 50 hours
operation. After this the belts must be checked at least once a year or after 1,700 hours operation.

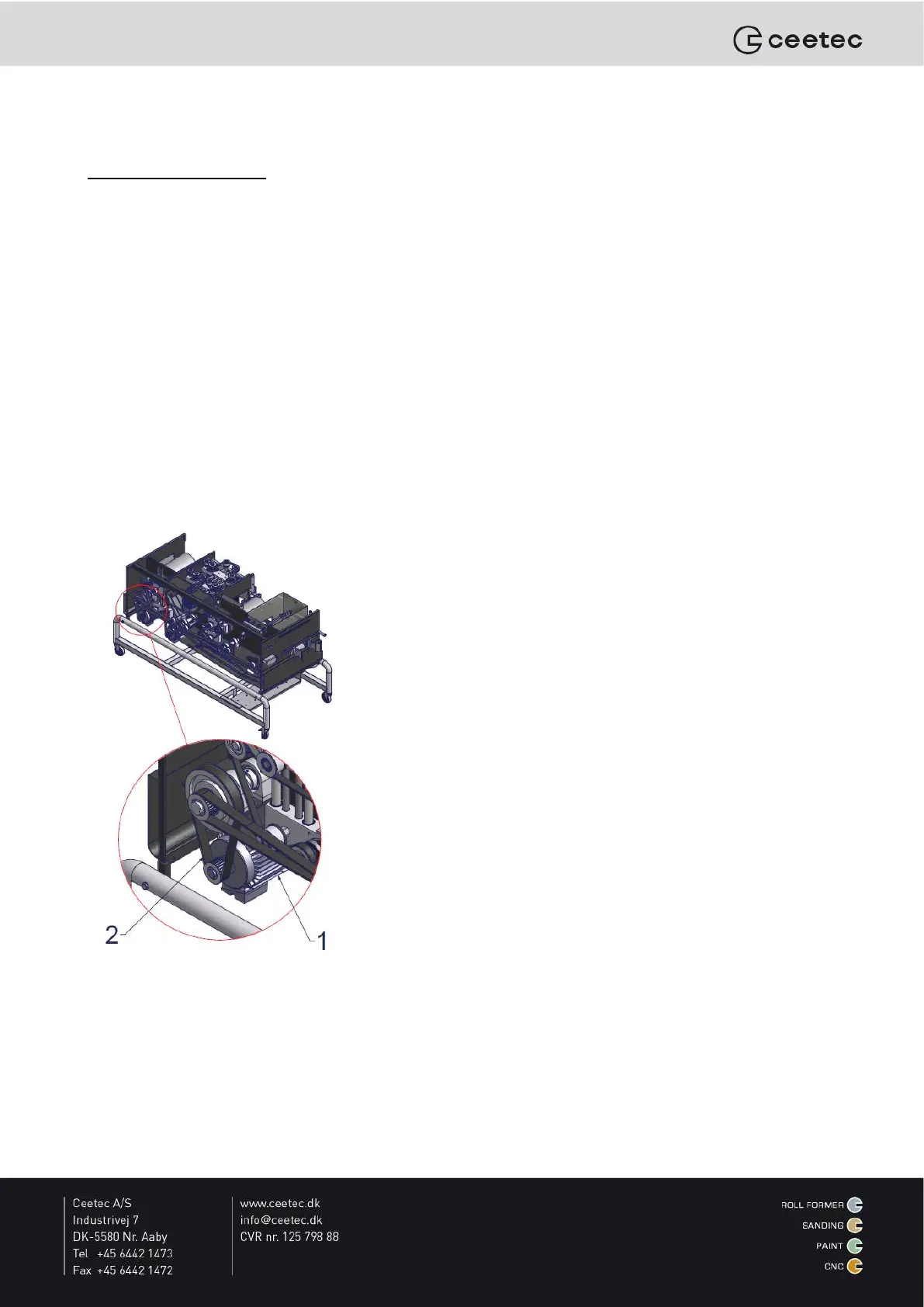

11.3.1 Toothed belt for motor – feed roller
Tensioning of belt for motor – feed roller is carried out the following way:
· Dismantle the side plate
· 4 bolts on motor (1) are loosened
· Motor is displaced until belt (2) has sufficient tension
· 4 bolts on motor are tightened
· The side plate is remounted
