11.3.2 Toothed belt for forward drive

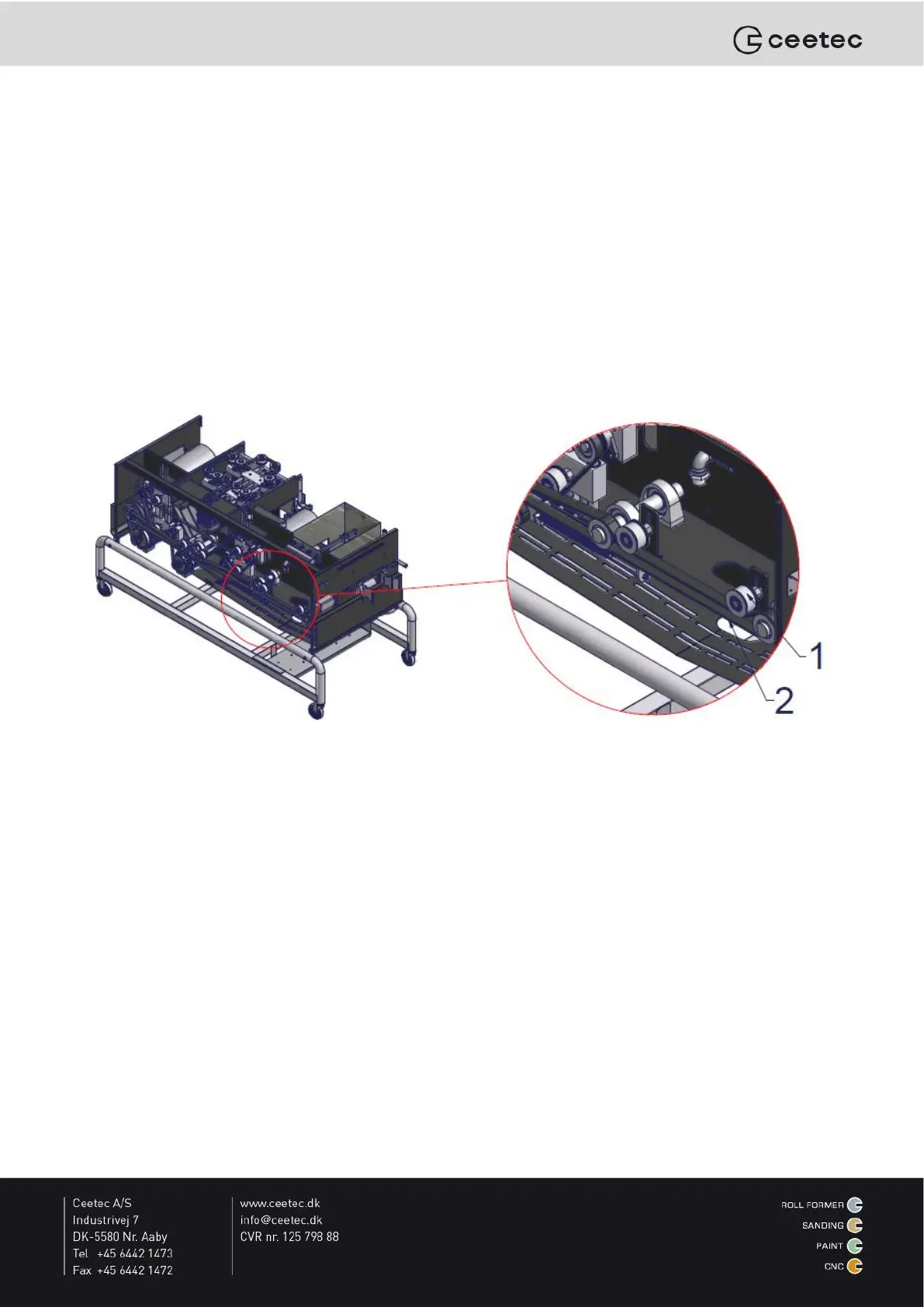

Tensioning of belt for forward drive is carried out the following way:
· The side plate is dismantled
· Bolt on tension pulley (1) is loosened
· The tension pulley is displaced until belt (2) has sufficient tension
· Bolt on tension pulley is tightened
· The side plate is remounted
