CENTRALINE I/O MODULES – INSTALLATION & COMMISSIONING INSTRUCTIONS
27 EN1Z-0973GE51 R0119

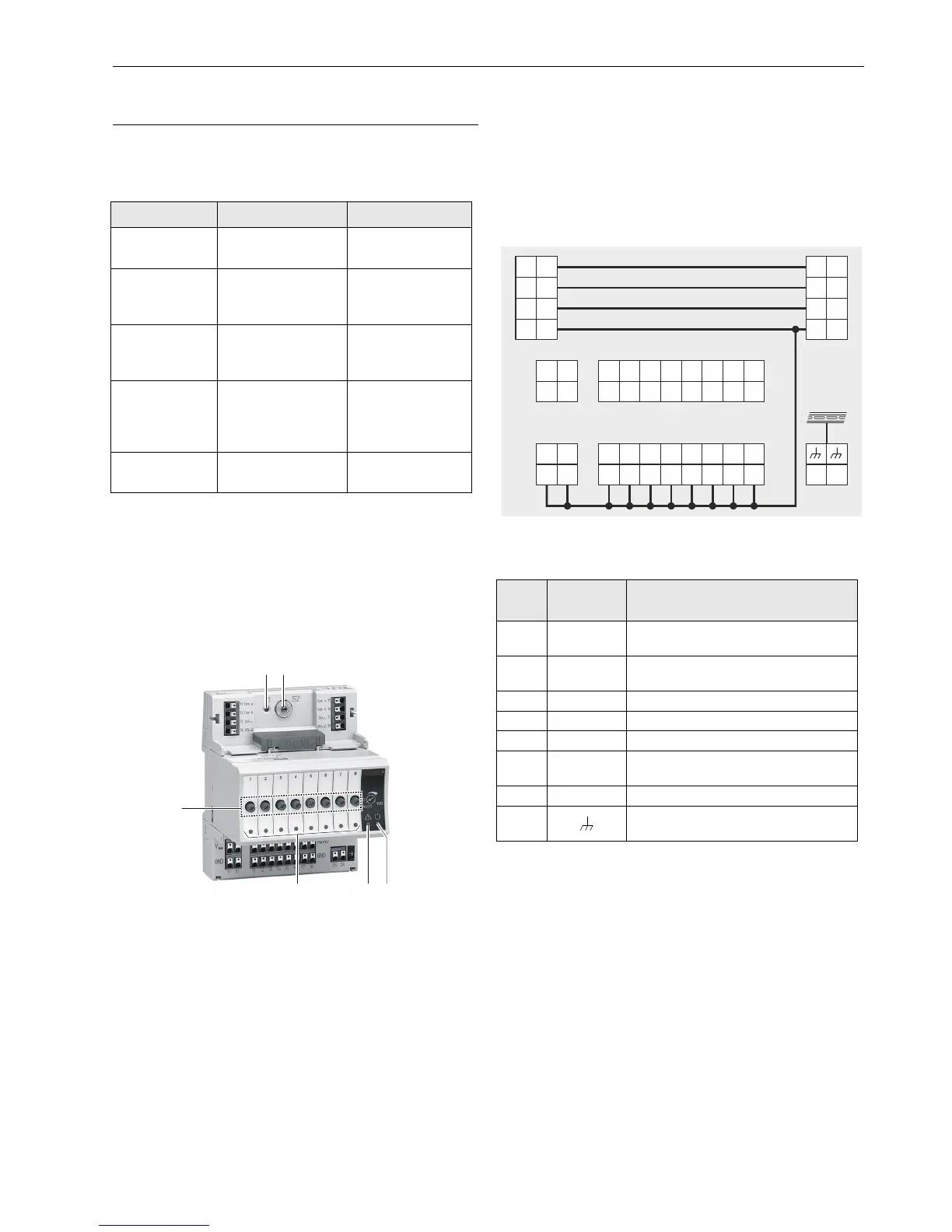

Analog Output Modules
Types of Analog Output Modules and Terminal
Socket
Table 31. CentraLine Analog Output Modules
Type Description Housing
CLIOP822A
Panel Bus analog
output module
Light gray
CLIOPR822A
Panel Bus analog
output module with
manual overrides
Light gray
CLIOL822A
L
ONWORKS Bus
analog output
module
Dark gray
CLIOLR822A
L
ONWORKS Bus
analog output
module with manual
overrides
Dark gray
XS821-22
XSU821-22
Terminal socket Light gray
Features
8 analog outputs; can also be configured per output as
binary outputs (0 … 10 V, 2 … 10 V, ON/OFF, or floating)
Corresponding output status LEDs (red)
R822A: 8 manual overrides, see figure below
564
3
21
Fig. 35. CLIOP822A Analog Output Module with terminal
socket
Legend
1 Service button S1
2 Hex switch S2
3 Manual overrides
4 Output LEDs
5 Service LED
6 Power LED
Functionality of service LED and power LED: see Table 57 to
Table 59 on page 56 and following.
In the event of communication problems, the analog outputs
will move to the safety positions you have configured using
the engineering tool, see analog output point description in
the CARE – User Guide, 74-5587/EN2B-0182GE51.
Terminals
71
75
72
76
73 77
74
21
9
GND GND GND GND GND GND GND GND GND GND
22
10
1
11
AO1
NC NC
AO2 AO3 AO4 AO5 AO6 AO7
AO8
2
12
3
13
4
14
5
15
6
16
7
17
8
18 25 26
78
COM
A
COM
A
COM
B
COM
B
24
V~
24
V
~
24
V~0
24
V
~0
Fig. 36. Terminal assignment and internal connections
Table 32. Description of analog output module terminals
Ter-
minal
Signal COMMENT
71, 75 COM a
2-wire communication bus
(LON/Panel Bus)
72, 76 COM b
2-wire communication bus
(LON/Panel Bus)
73, 77 24 V~ Power supply
74, 78 24 V~0 Power supply
1…8 AO1…AO8 Analog outputs 1…8
9…18 GND
Ground. All grounds are connected
internally to each other
21, 22 N.C. Do not use!
25, 26
Shield connection (functional earth),
internally connected to the DIN rail
NOTE: Shield connection to be used for shielded I/O
cables only. It is not allowed to connect a
L
ONWORKS shield, since LONWORKS requires a
resistor and a capacitor.
NOTE: If additional shield terminals are needed, the
XS814 Auxiliary Terminal Package can be
installed.
