CENTRALINE I/O MODULES – INSTALLATION & COMMISSIONING INSTRUCTIONS
3 EN1Z-0973GE51 R0119
System Overview
System Architecture
A controller system consists of a controller and various CentraLine I/O modules.
Panel Bus (<40 m)
controller + CLIOxx
CLMMI00N22 or CLMMI00N31MODEM
LonWorks Bus
XFCLxxxXFCxxx SERVAL
LonWorks I/O (CLIOLxx)
Panel I/O (CLIOPxx)
C-Bus
existing XL500
controllers

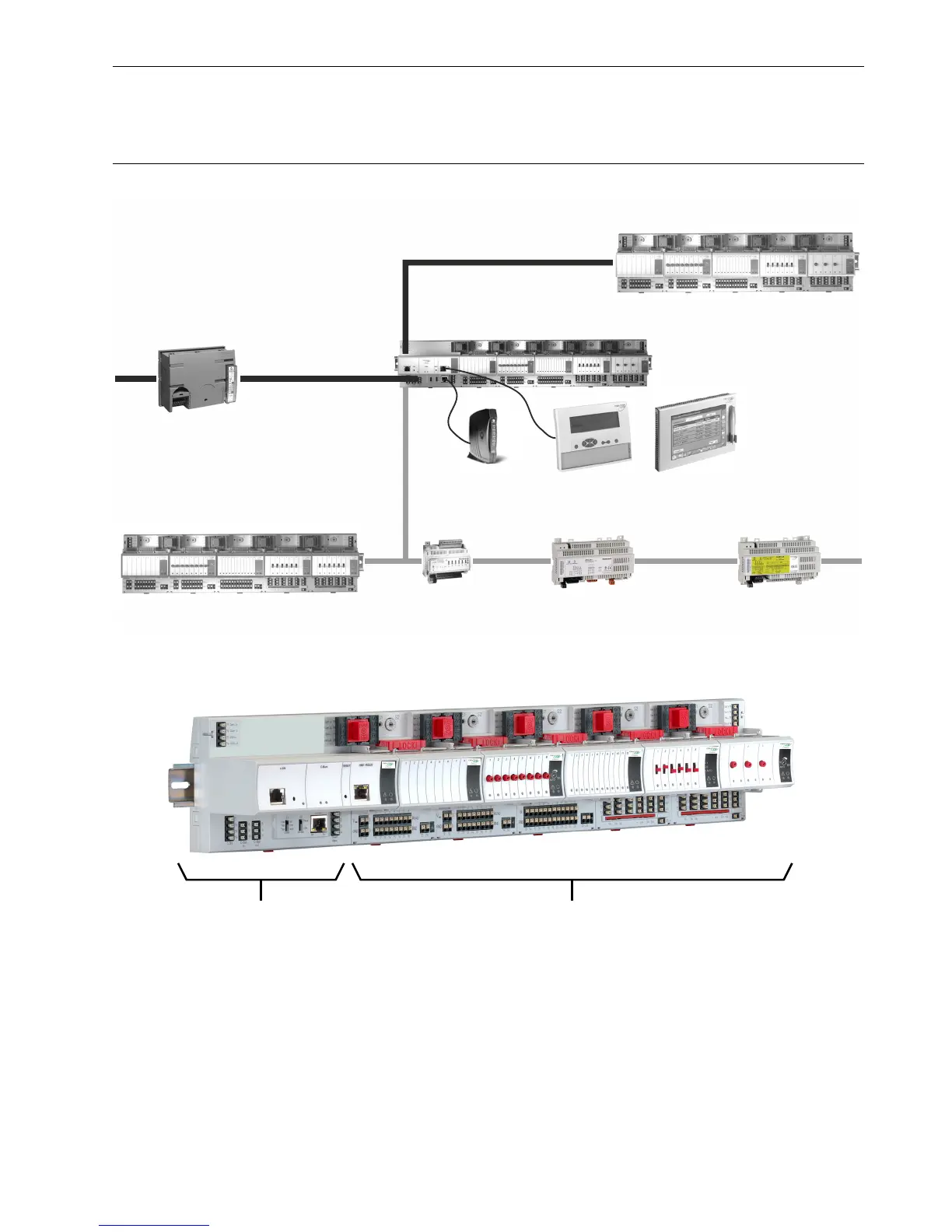

Fig. 1. Typical controller system architecture
CONTROLLER CentraLine I/O MODULES
Fig. 2. Controller and CentraLine I/O modules
