CENTRALINE I/O MODULES – INSTALLATION & COMMISSIONING INSTRUCTIONS
EN1Z-0973GE51 R0119
22
Description of the CentraLine I/O Modules
Common Features
Table 25. Switches located on the Terminal Socket
Feature Function
Service button
S1 (pluggable
I/O modules,
only)
 LED test, see section "Troubleshooting"
on page 56
 L
ONWORKS service button functionality
for L
ONWORKS Bus I/O modules
Hex switch S2
 Module addressing for Panel Bus
I/O modules
Table 26. LEDs located on the I/O Module
Feature Function
Service LED
(yellow)
 Service information, see section
"Troubleshooting" on page 56
Power LED
(green)
 Information on power supply, see section
"Troubleshooting" on page 56
For the location of these elements, see figures of the relative
modules.
Analog Input Modules
Types of Analog Input Modules and Terminal Socket
Table 27. CentraLine Analog Input Modules
Type Description Housing
CLIOP821A Panel Bus analog input module Light gray
CLIOL821A
L
ONWORKS Bus analog input
module
Dark gray
XS821-822
XSU821-822
Terminal socket Light gray
Features
 8 analog inputs
 Sensor-break and short-circuit detection, see section
"Troubleshooting" on page 56.
21
34

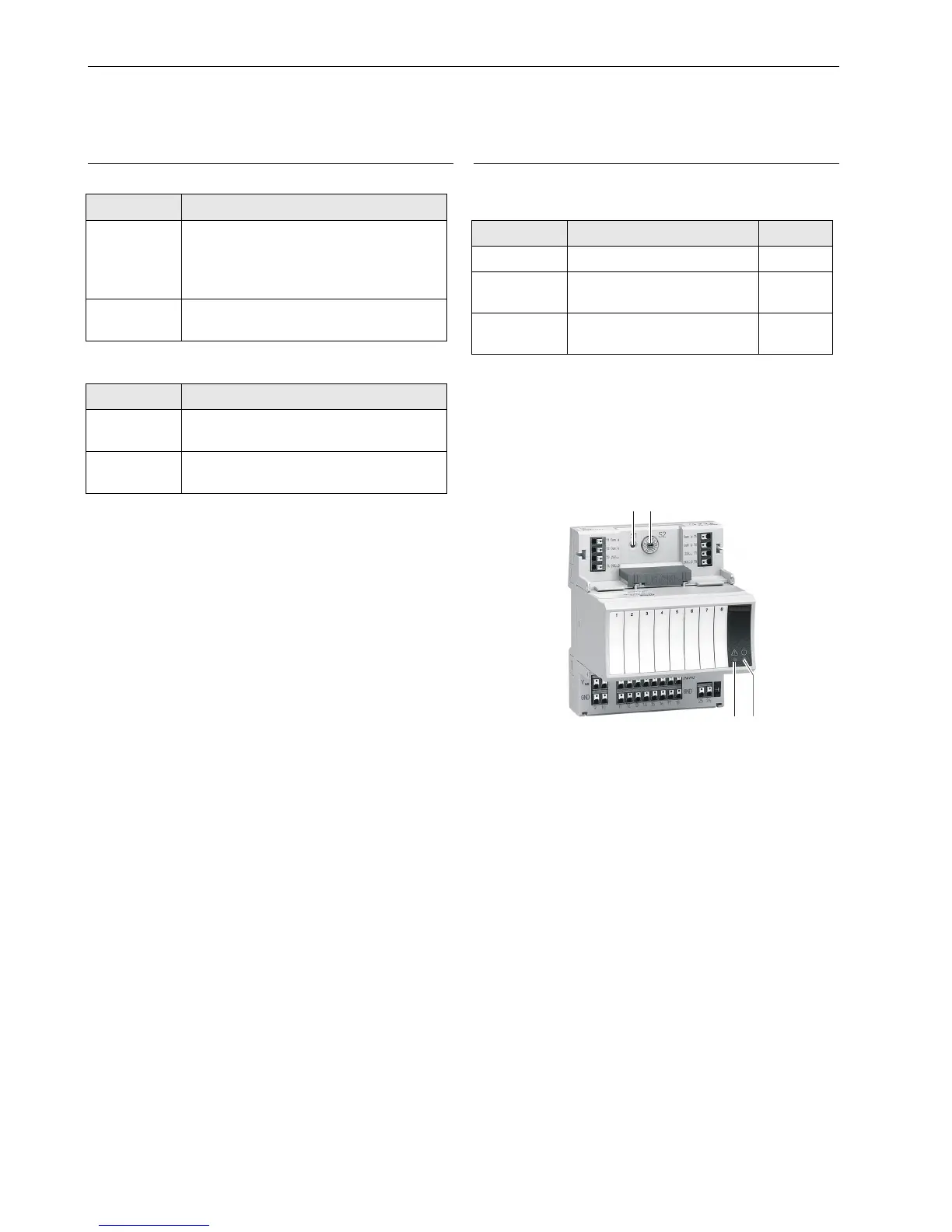

Fig. 28. CLIOP821A Analog Input Module with terminal
socket
Legend
1 Service button S1
2 Hex switch S2
3 Service LED
4 Power LED
Functionality of service LED and power LED: see Table 57 to
Table 59 on page 56 and following.
