CENTRALINE I/O MODULES – INSTALLATION & COMMISSIONING INSTRUCTIONS
55 EN1Z-0973GE51 R0119
Valid Range

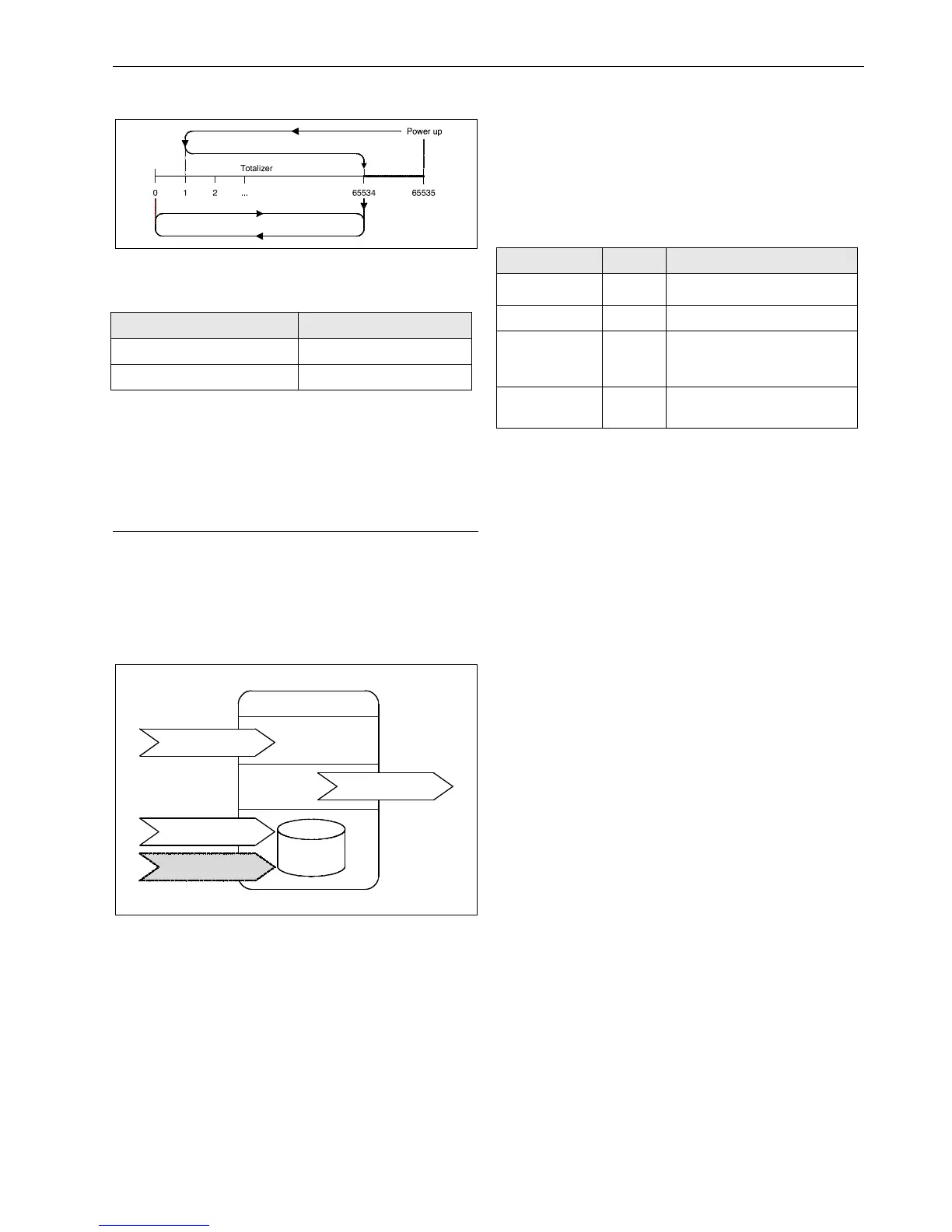

Fig. 75. Totalizer
Table 55. Totalizer counts
State Value
For totalizer counts 0 … 65534
For power-up/reset 65535
Power-up/Reset
After power-up and reset, the value 0xFFFF = 65535 will be
sent to the network to indicate that previous count values
have been lost due to a reset.
CLIOL(R)824A Relay Output Module
One instance of the LONMARK open-loop sensor object has
been assigned per input of the CLIOL824A/CLIOLR824A
Relay Output Module.
Each output object has its own configuration properties,
except for heartbeat configuration, which will be shared
among all objects.
Configuration
Parameter
Value File
nviDoSwitch[x]
SNVT_switch
nvoDoActPosnFb[x]
SNVT_switch
Open Loop Actuator Object
(LonMark Object Type 3)
nciDoConfig[x]
UCPT_DOConfig
nciRcvHrtBt[x]
SCPTmaxRcvTime
|1
#1
Fig. 76. L
ONMARK output object
Relay Output Command – nviDoSwitch[ ]
This network variable is used to drive the relay output.
It is typically bound to a L
ONWORKS control device issuing an
output level ON/OFF, respectively 0 … 100 %.
Valid Range
Table 56. Relay output command values
Value State Action
N/a 0 OFF
0 1 OFF
0.5 … 100 %
1
Outputs are switched
according to actual output type
configuration
N/a
-1
INVALID:
as defined for failure behavior
Default Value
Value = 0
State = -1
Start-up Behavior
At start-up, i.e., power-up or reset, all nvi's will be initialized
with INVALID, leading the actuator to drive to the configured
safety position after 1 minute.
Receive Heartbeat
The default configuration for “Receive Heartbeat” is 300 sec.
If no nvi update is received during this time, the field devices
will go to their configured safety positions.
