CENTRALINE I/O MODULES – INSTALLATION & COMMISSIONING INSTRUCTIONS
51 EN1Z-0973GE51 R0119
LonWorks Software Interface Description
Overview
LonTalk Protocol
CentraLine LONWORKS Bus I/O Modules use a LONTALK
protocol communication with other nodes on the L
ONWORKS
network, with commissioning tools und supervisory devices.
Features
 Network variables for communications between nodes, but
no explicit messages
 Configuration network variables
 L
ONMARK FPT protocol for downloading a CentraLine
L
ONWORKS Bus I/O Module firmware via LONWORKS:
loadable apbG file (supported by CARE and EXCELON)
Addressing, binding, and commissioning
CentraLine LONWORKS Bus I/O Modules are addressed,
bound, and commissioned using CARE or any other standard
L
ONWORKS commissioning tool based on LNS 2.0 and higher,
e.g., LonMaker for Windows.
Configuration
CentraLine LONWORKS Bus I/O Modules are configured using
CARE or COACH.
CLIOL821A Analog Input Module
For the CLIOL821A Analog Input Module the LONMARK Profile
520 "Analog Input" has been assigned per input.
Each input object has its own configuration properties, except
for heartbeat configuration, which will be shared among all
objects.

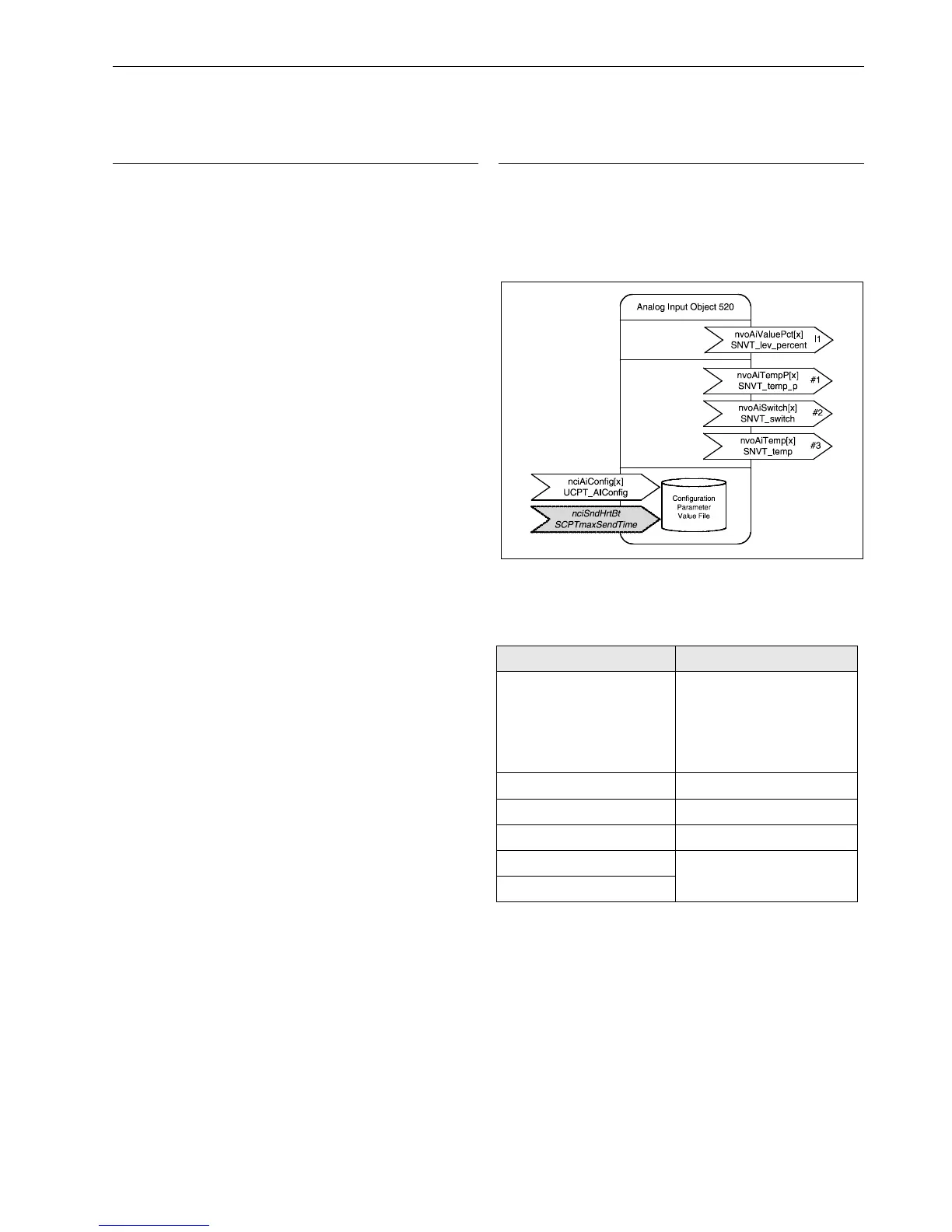

Fig. 70. L
ONMARK analog input object
Input types and corresponding NVs
Table 49. Input types and corresponding NVs
Input type NV used
NTC10kΩ
NTC20kΩ
PT1000-1
NI1000TK5000
PT3000
BALCO500
nvoAiTempP
PT1000-2 nvoAiTemp
0(2)…10V nvoAiValuePct
Slow binary input nvoAiSwitch
Other Sensors
INVALID
Sensor break/short circuit
Transmission/Updates
These variables are transmitted immediately when their value
has been changed by a higher rate than the configured "send
on delta" (default: 0.3 K).
These variables are also transmitted as heartbeat output
(default: 60 sec) on a regular basis as dictated by the max.
send time (nciSndHrtBt) configuration variable.
