CENTRALINE I/O MODULES – INSTALLATION & COMMISSIONING INSTRUCTIONS
41 EN1Z-0973GE51 R0119
Floating Output Module
Features
Type: CLIOPR825A Floating Output Module
Housing: light gray
Floating outputs sufficient for driving up to 3 floating
actuators
Manual overrides and 3 corresponding pairs of status
LEDs
In the event of communication problems, the 3 floating out-
puts will move to the safety positions you have configured
using the engineering tool, see floating output point
description in the CARE – User Guide, 74-5587/EN2B-
0182GE51.
56
4
3
21

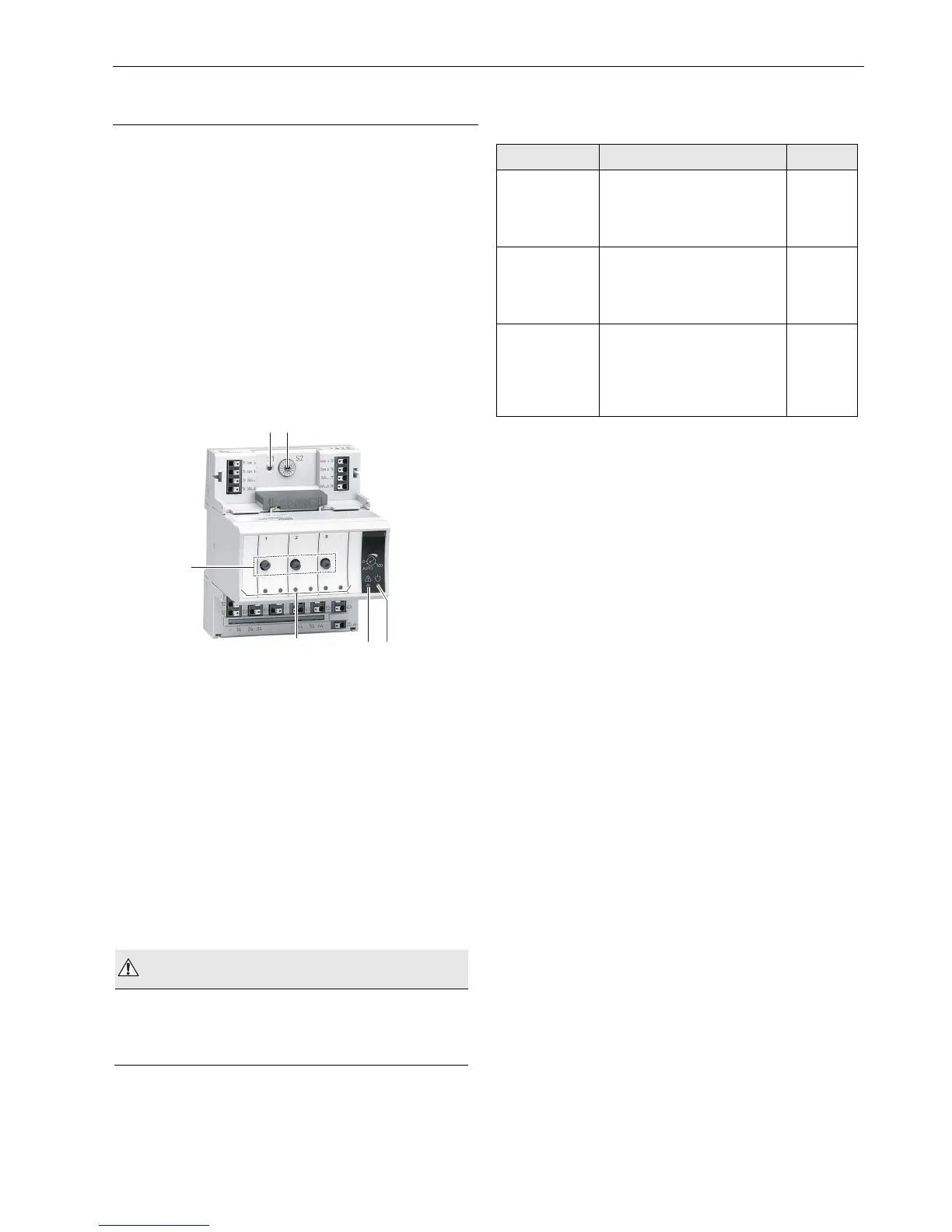

Fig. 50. CLIOPR825A Floating Output Module with
terminal socket
Legend
1 Service button S1
2 Hex switch S2
3 Manual overrides
4 Status LEDs
4 Service LED
5 Power LED
Functionality of service LED and power LED: see Table 57 to
Table 59 on page 56 and following.
WARNING
Risk of electric shock or equipment damage!
Low voltage and line voltage must not be wired within
the same module.
Permissible loads
Table 43. Permissible loads of floating output modules
Max. load Min. load
Per relay out-
put module
(total) (fuse
F3)
19…250 VAC
current at cos φ ≥ 0.6: 12 A
1…29 VDC
12 A resistive, 3 A inductive
–
Per normally
open contact
19…250 VAC
current at cos φ ≥ 0.6: 4 A)
1…29 VDC
4 A resistive, 1 A inductive
50 mW
Per normally
closed contact
19…250 VAC
current at cos φ ≥ 0.95: 2 A,
current at cos φ ≥ 0.6: 1 A
1…29 VDC
4 A resistive, 1 A inductive
50 mW
NOTE: In the case of voltages above 30 VAC/DC and if
inductive components are to be connected to
relays switching more often than once every
2 minutes, these components must be prevented
from causing harmful interference to radio or
television reception (conformance with EN 55014).
NOTE: Max. voltage for UL 864-compliant applications is
24 V.
