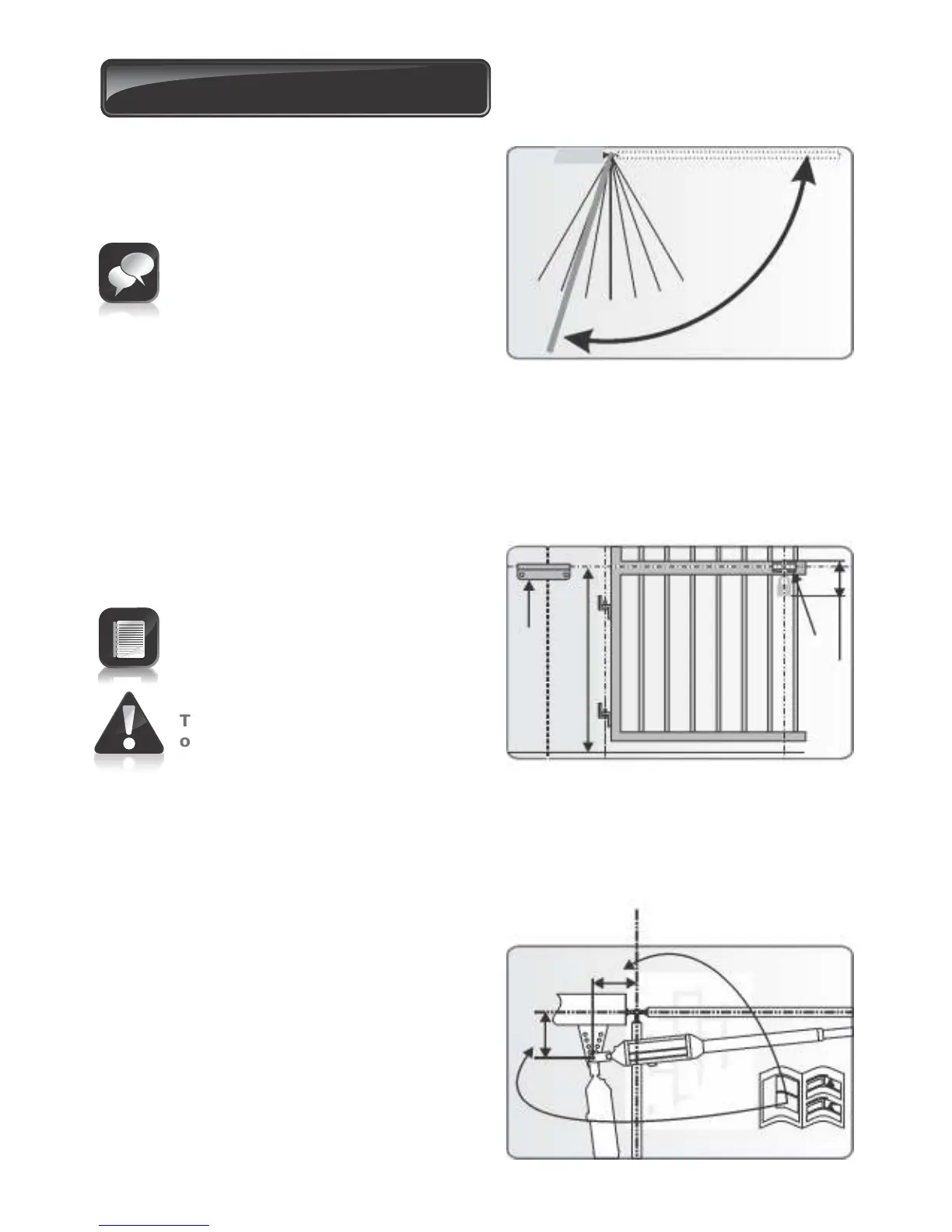

10. Operator Installation
1. Determine the gate opening angle and
direction of operator (inward or outward).
Alternatively the swing angle can be
determined more accurately with the
process detailed on page 35.
120°
100°
110°
90°
80°
70°
60°
Open
Closed
Estimate
swing angle
3. Determine where to put the bracket
according to A and B values in the tables
on pages 30, 31, 33 and 34.
FIGURE 28. ESTIMATE SWING ANGLE
B
A
FIGURE 30. BRACKET POSITION
Page 24
2. Determine a suitable height for the wall
bracket.
The gate bracket must fit to a sturdy
point on the gate.
Consider using the optional Gate
Adaptor Kit.
Take care to make sure the
operator is mounted level.
FIGURE 29. GATE HEIGHT
Wall bracket
85mm
Gate Bracket
Minimum 125mm
