Centurion VECTOR2 - 16 Wiring Diagram for External Radio Receiver and Loop Detector

16. Wiring Diagram for External Radio
Receiver and Loop Detector
Loop and loop detector
Remote control circuitry
External radio receiver

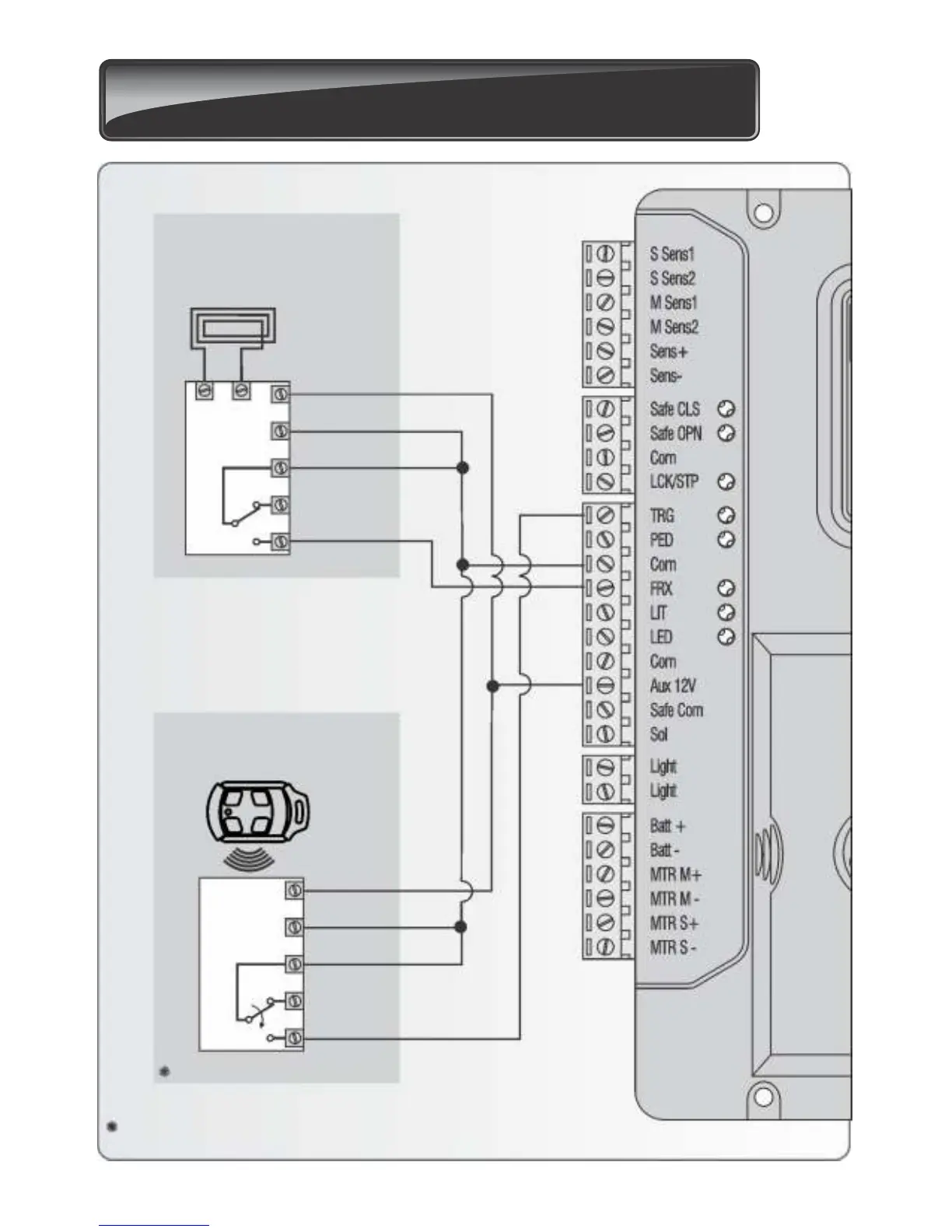

FIGURE 68. WIRING OF OTHER INPUTS
Page 42
12V +
12V -
COM
NC
NO
Refer to diagram only if external receiver is being used
and not the onboard receiver; disable onboard receiver - Menu 11
12V -
12V +
COM
NO
NC
Loop detector
Loop
