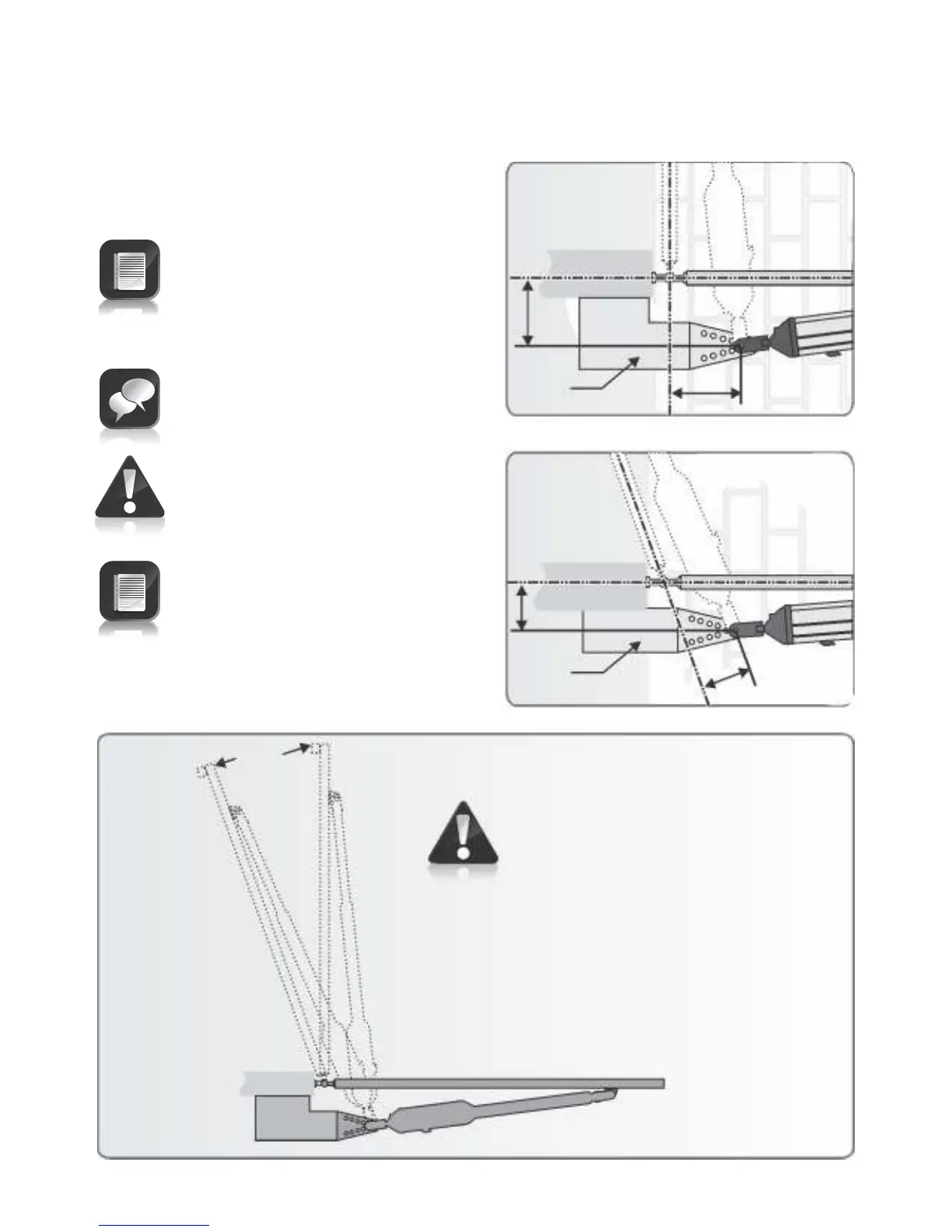

For gates opening 90° or less as A
and B are as shown.
FIGURE 52.OPENING MORE THAN 90°
FIGURE 50. OPENING 90° OR LESS
For best security (but slower
operation) install with large B value
For fast operation (but less
security) install with small A and
small B values
Ensure that the gate does not
exceed the gate mass
specifications on page 11.
For gates opening more than 90° as
A and B are shown.
Endstop
see warning
note on the
right
Gate closed
Gate open
Gate open
Outward Swing Gate Setup
B
A
B
Outward opening swing gates must have
physical endstops fitted in the open position.
FIGURE 51
Page 32
Make up
bracket
to suit
Make up
bracket
to suit
A
