IRB Tx
12V/24V +
12V/24V -
12V/24V -
IRB Receiver
COM
12V/24V +
NC
NO
Closing Safety Beams

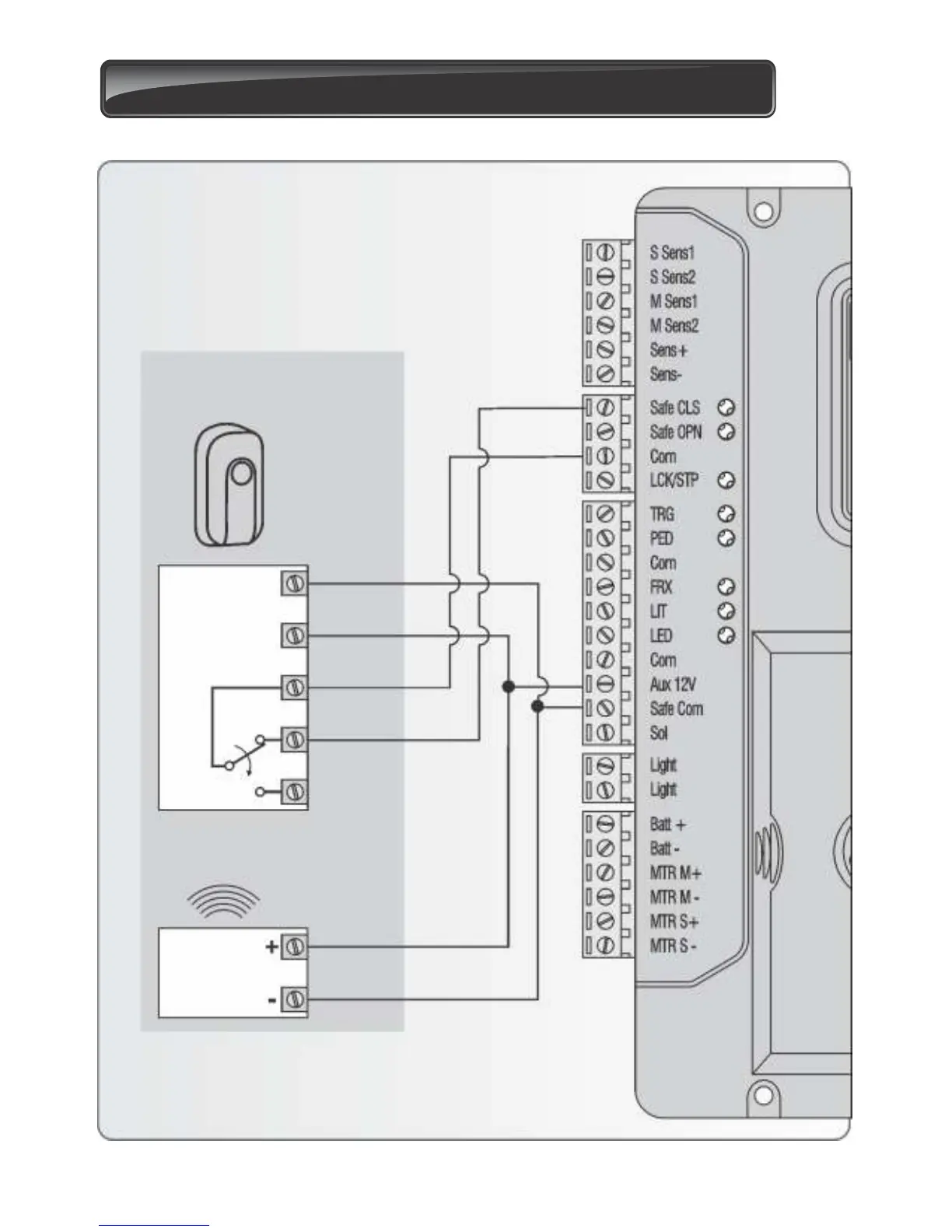

FIGURE 66. WIRING OF SAFETY DEVICE
Page 40
14. Wiring Diagram for Closing Safety Beams
