27. Diagnostics
Diagnostic LEDs
The controller is fitted with diagnostic lights (LEDs) that assist with the setup and
maintenance of the gate.
Figure 82 below provides the description and purpose of the indicator lights also
indicating the location on the controller
Slow regular flash Gate is opening
Fast regular flash Gate is closing
One flash every two seconds Courtesy Light latched on
Two flashes every two seconds Mains Failure
Three flashes every two seconds Battery-low
Four flashes every two seconds Collision Shutdown
Four flashes every two seconds Multiple Collisions have occurred

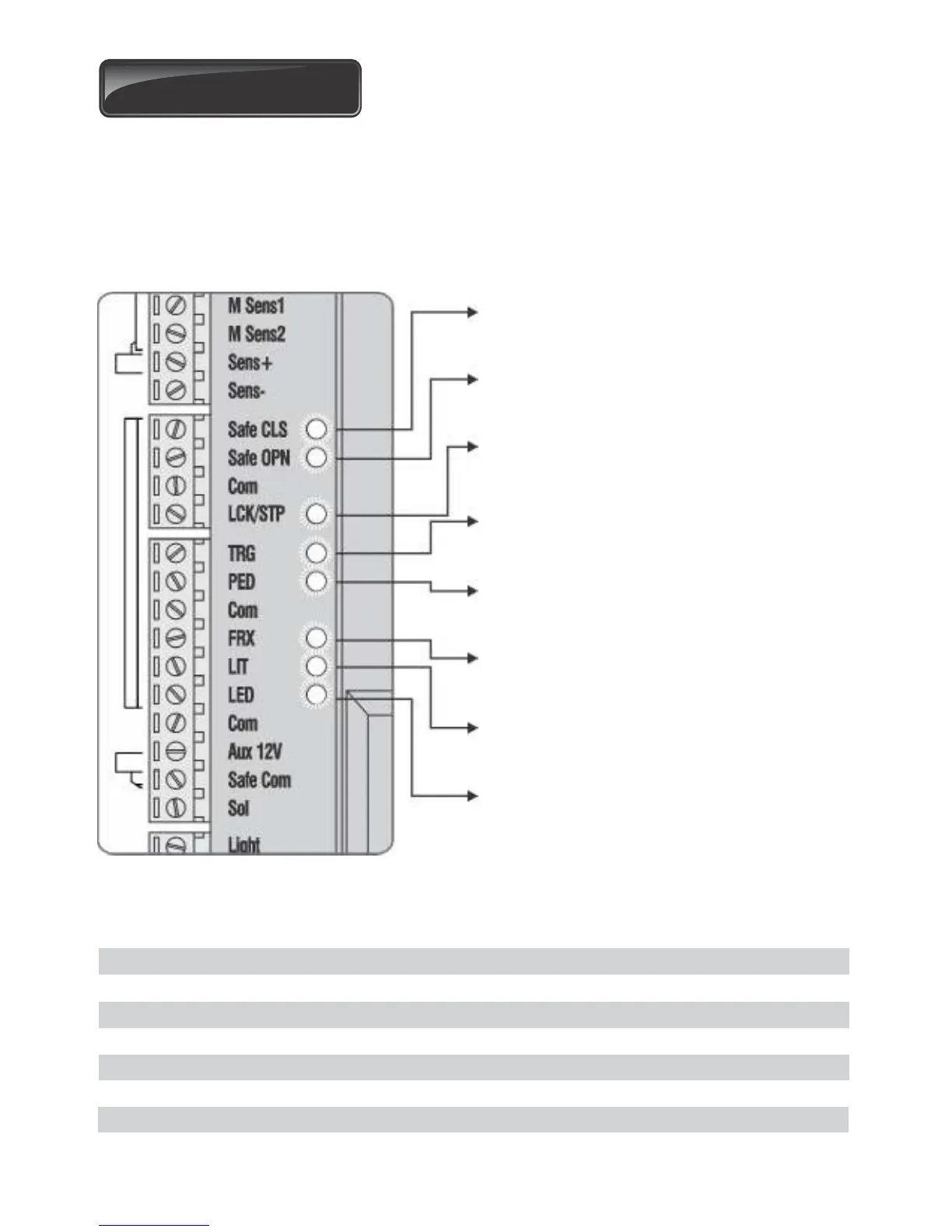

Gate Status LED Indication
Safe CLS (Safety Closing Beam)
On when the closing beam is not activated
Off when closing safeties obstructed
Safe OPN (Safety Opening Beam)
On when the opening beam is not activated
Off when opening safeties obstructed
LCK/STP
On when system ready to operate
Off when system locked
TRG
On when the trigger signal is present
Off when no signal
PED
On when the pedestrian signal is present
Off when no signal
FRX
On when a free-exit signal is present
Off when no signal
LIT
On when signal present
Off when no signal
LED
On when gate open
Off when gate closed
FIGURE 83.
Page 72
