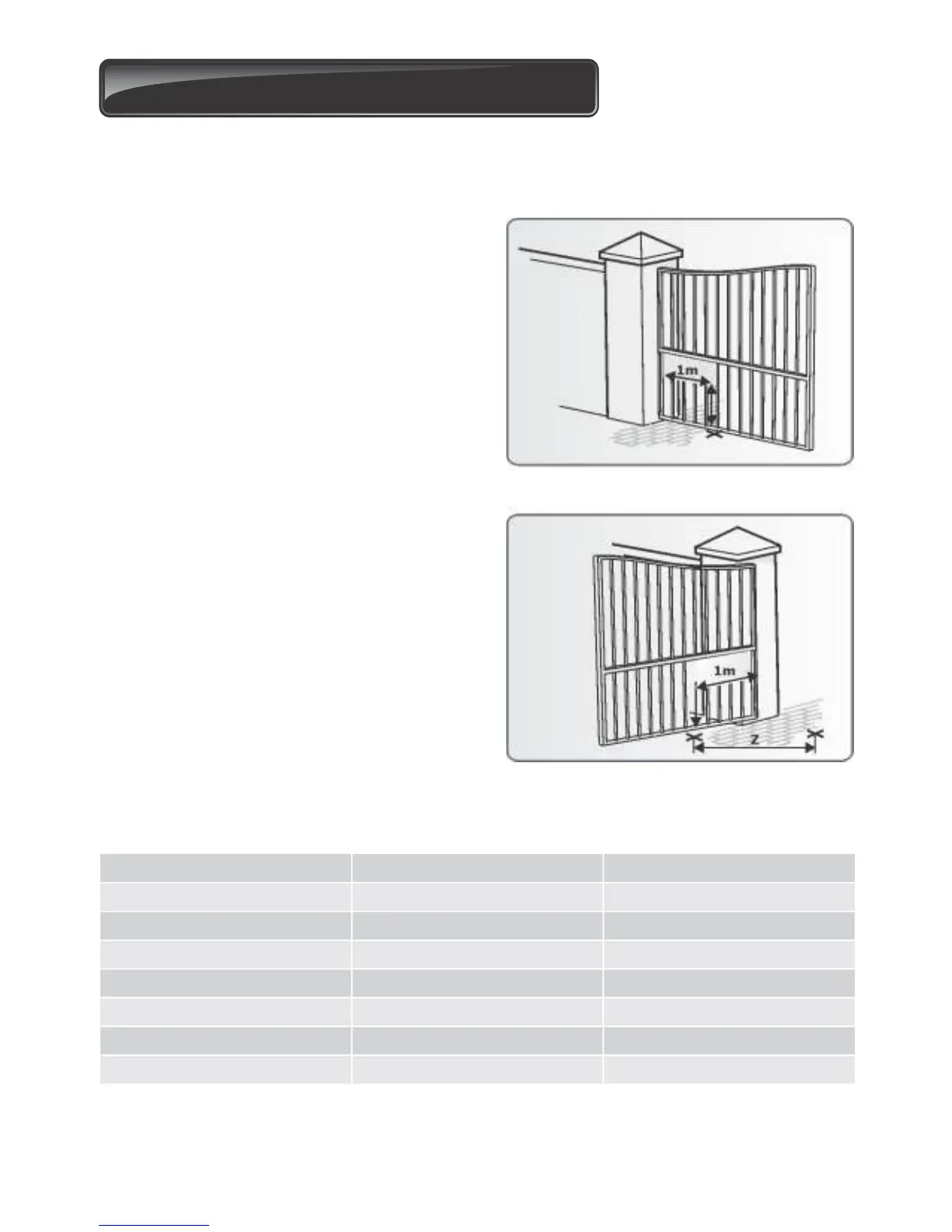

11. Determine Gate Swing Angle
Use this procedure to accurately determine the gate opening angle:
1. Close the gate and measure a distance of
one metre from the centreline of the gate
hinge.
2. Make a mark on the ground.
Step 1
3. Open the gate and measure along the gate
a distance of one metre from the centreline
of the gate hinge.
4. Make a mark on the ground.
5. Measure the distance on the ground
between the two marks (Z).
6. Using this Z value, read off the gate
opening angle from the table below.
Step 2
Step 3
Use gate swing angle of
60°
70°
80°
90°
100°
110°
120°
Value Z from
1 000mm
1 075mm
1 218mm
1 351mm
1 474mm
1 587mm
1 687mm
To
1 075mm
1 218mm
1 351mm
1 475mm
1 587mm
1 687mm
1 732mm
FIGURE 57
FIGURE 58
Gate opening angle
