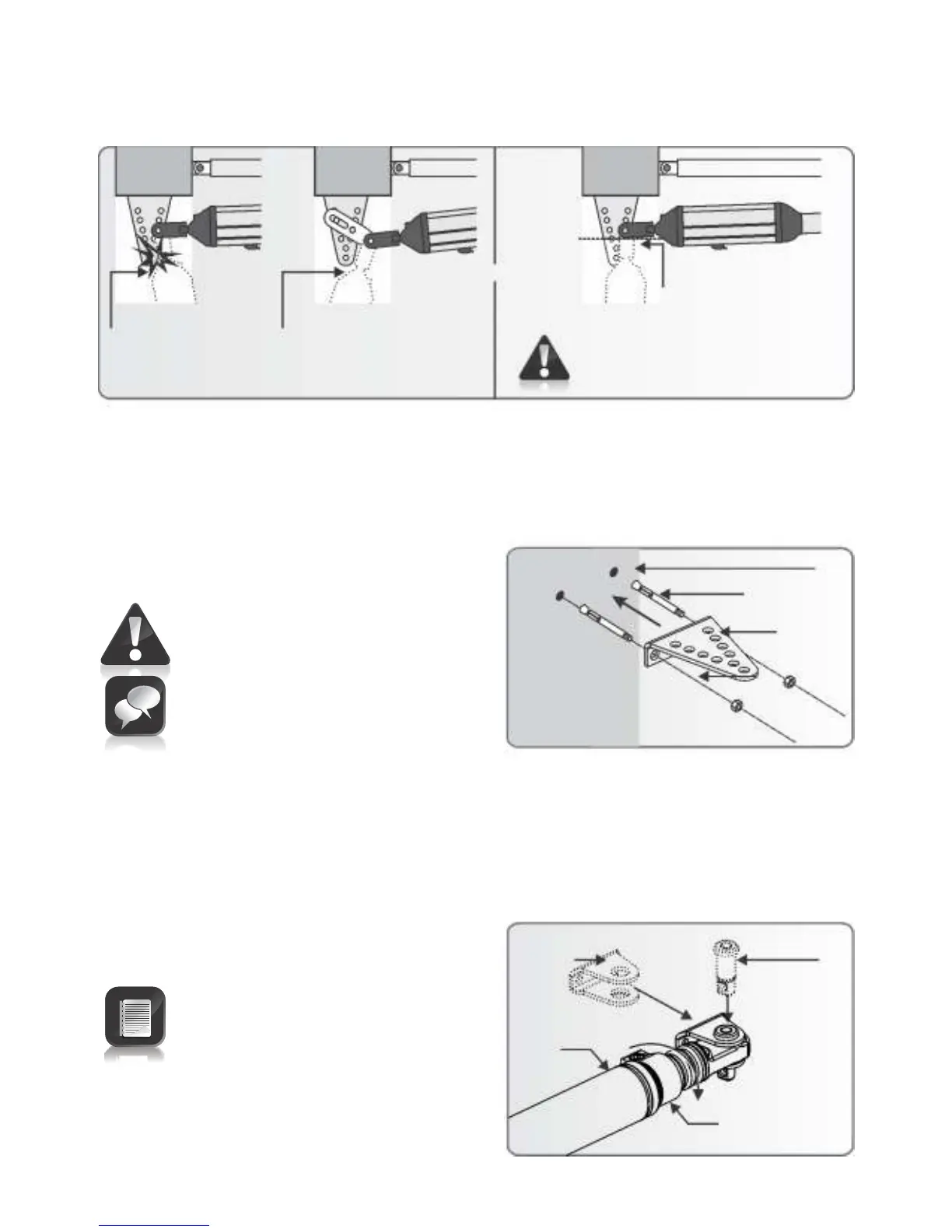

Centurion VECTOR2 - Determine the Gate Bracket Position

Use Mechano kit
Operator must
not foul against
bracket
Take care to shorten the wall
bracket to prevent interference
with the operator.
OR
Cut the bracket
FIGURE 31. BRACKET POSITION
FIGURE 33
FIGURE 32
4. Secure the bracket to the wall with the
most appropriate means.
It is critical that the wall bracket
is securely mounted.
See page 15 for site considerations.
Wall
adaptor
(Standard)
Wall
Mounting bolt
Determine the Gate Bracket
Position
5. Fit the gate bracket to the operator.
Start with the operator fully
retracted.
Turn out the actuator tube one or
two turns.
One or two turns
VECTOR2
unit
Pin
Gate
bracket
Origin marker
Page 25
