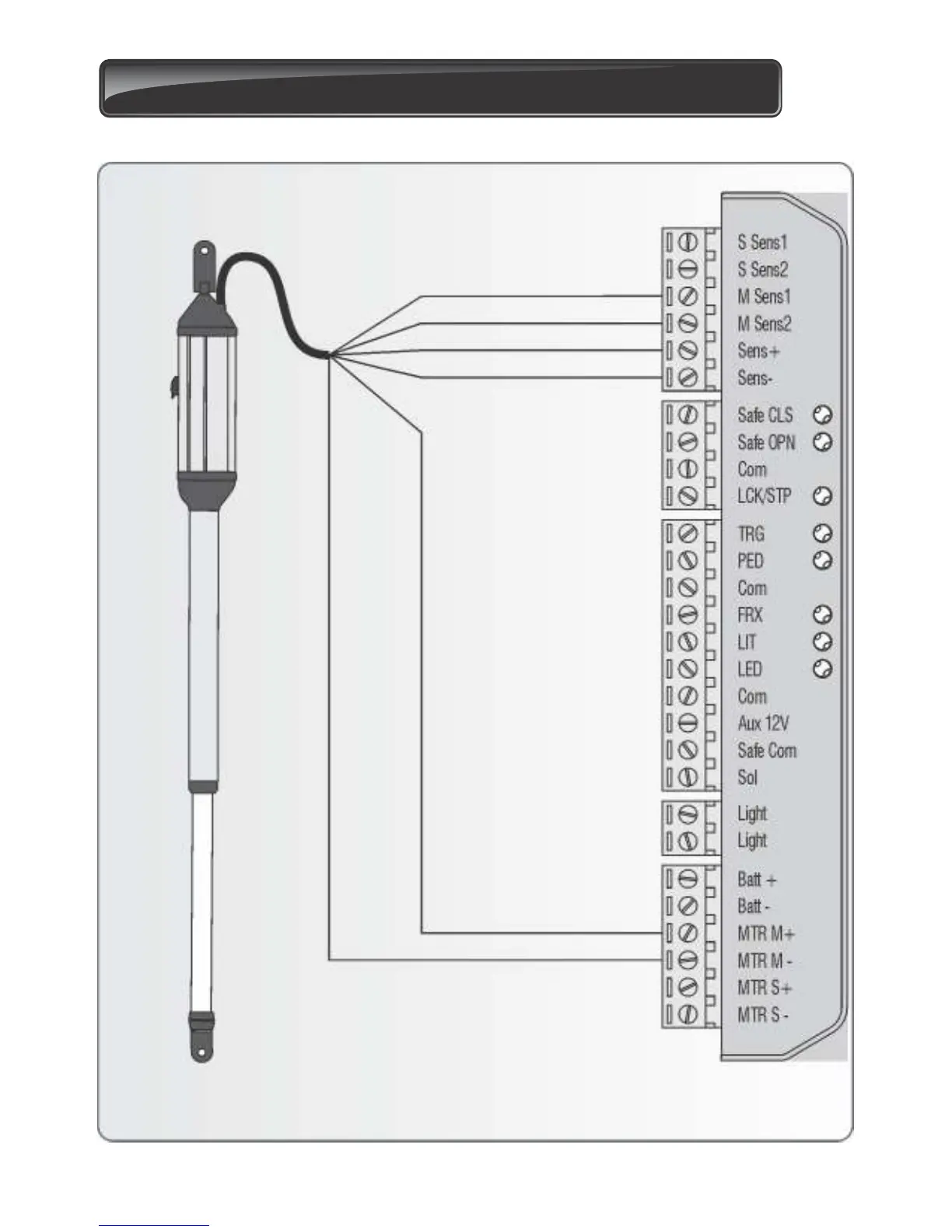

18. Wiring Diagram for Master Motor (MTRM)
Thin purple
Thin red / grey
Thick blue
Thick black
Thin blue / orange
Thin black
Master Motor (MTR M)
FIGURE 70. WIRING OF THE MASTER MOTOR
Page 44
