Centurion VECTOR2 - Inward Swing Gate Setup

For gates opening more than 90° as
A and B are shown.
For gates opening 90° or less as A
and B are shown.
Page 29

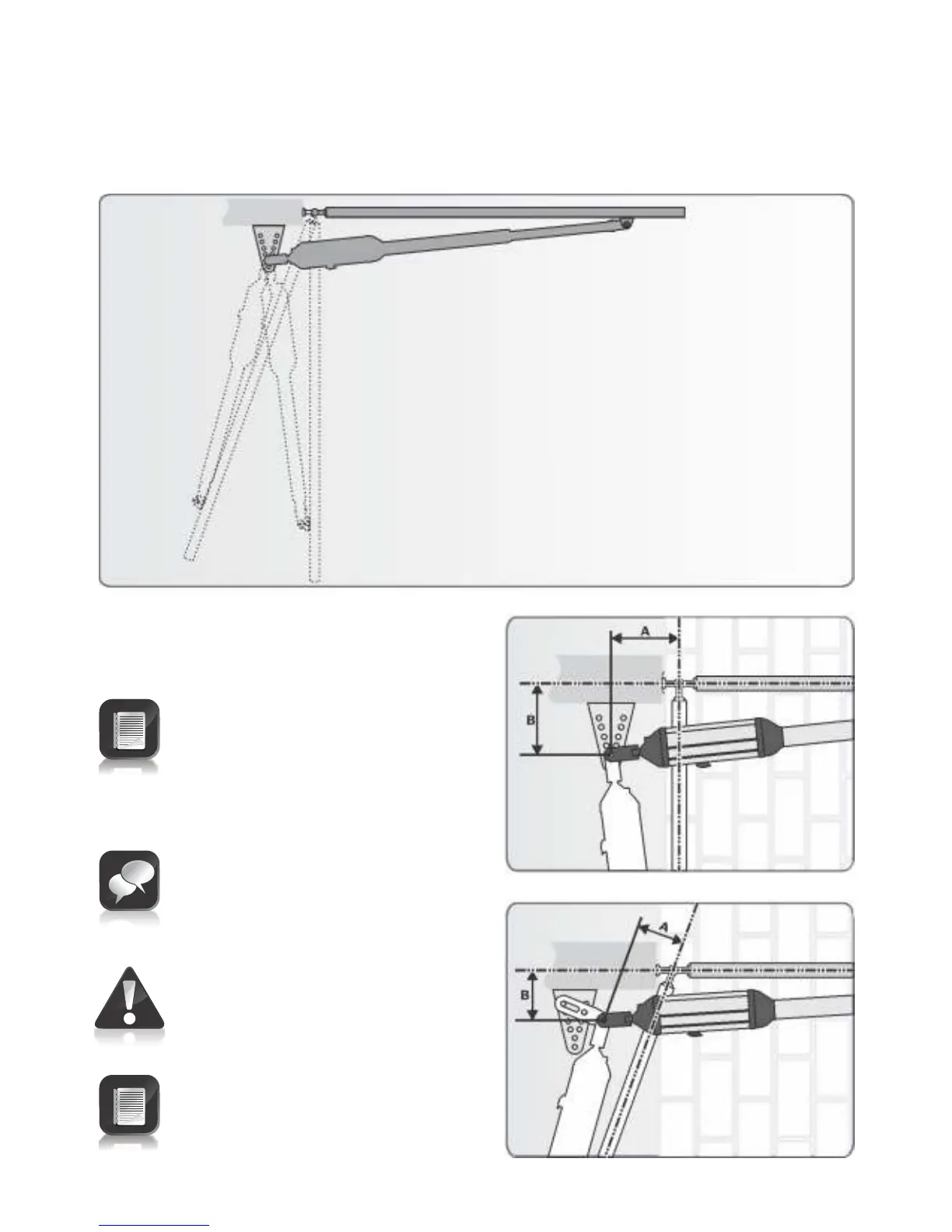

FIGURE 43
FIGURE 44. OPENING 90° OR LESS
Inward Swing Gate Setup
FIGURE 45. OPENING MORE THAN 90°
For best security (but slower
operation) install with large B value.
For fast operation (but less
security) install with small A and
small B values.
Ensure that the gate does not
exceed the gate mass
specifications on page 11.
Gate closed
Gate open
Gate open
